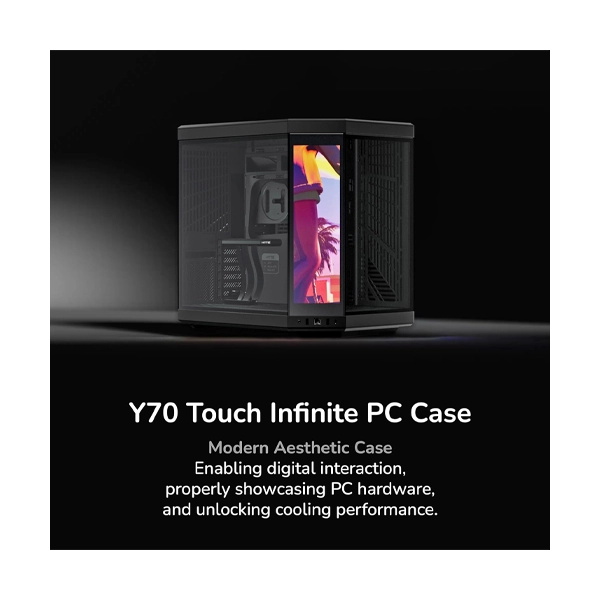

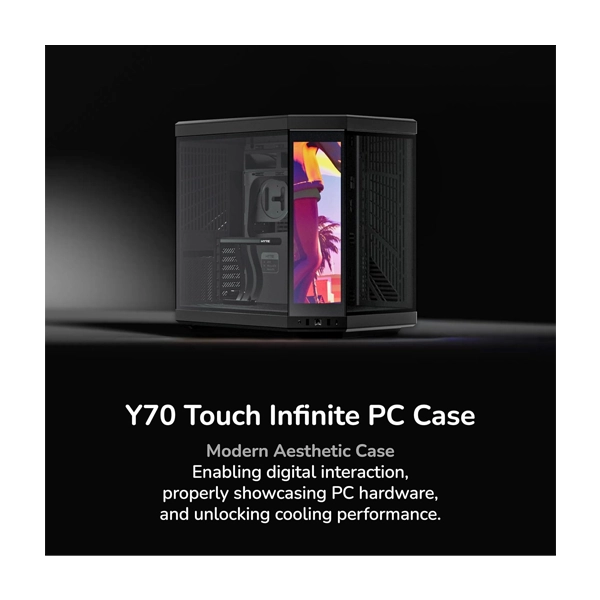

Hyte Y70 Touch Infinite E-ATX Mid Tower Case

Brand

HYTE

Model

CS-HYTE-Y70TTI-BB

Color

Black

Type

Dual Chamber Mid-Tower ATX Case

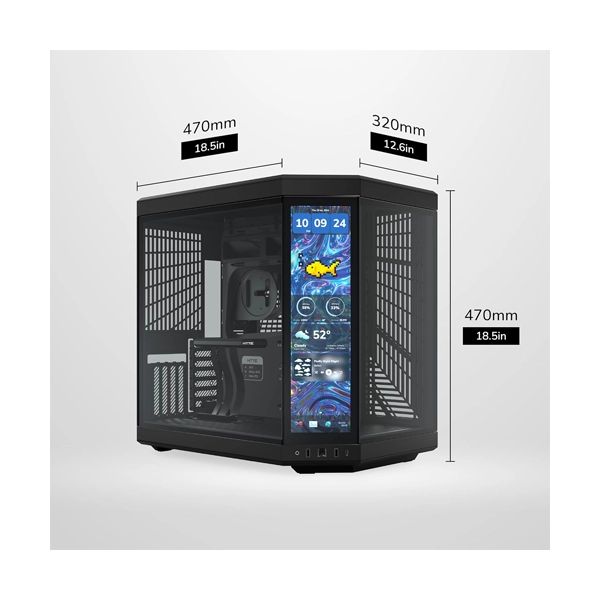

Exterior Dimensions

470 x 320 x 470 mm

Volume (L)

70.7

Motherboard Sizes

ITX, mATX, ATX, EATX

Expansion Slots

7 half + 4 full height

Riser Cable Included

Yes, PCIE 4.0 x 16

Front Ports

1x USB-C 3.2 Gen 2,

2x USB-A 3.2 Gen 1,

1x 3.5mm Audio/Mic Combo Jack

Dust Filters

Top, Side, Bottom

Top Fans

3x 120 mm / 2x 140 mm

Top Radiator

120-360, 140-280 @ 68 mm thick

Rear Fans

1x 120/140 mm

Rear Radiator

1x 120/140 mm

Side Fans

3x 120 mm / 2x 140 mm

Side Radiator

120-360, 140-280 @ 125 mm thick

Bottom Fans

3x 120 mm / 2x 140 mm @ 32 mm thick

Max Video Card Length

422 mm

Max Video Card Thickness

105 mm

Max CPU Cooler Height

180 mm

Max PSU Length

235 mm

Internal Bays

2x 3.5″ HDD or 4x 2.5″ SSD

Screen Size

14.5″

Resolution

688 x 2560 (2.5K)

Refresh Rate

60Hz

Touch

5-Point Multi-Touch Capacitive

Pixel Density

183 PPI

Dot Pitch

0.006mm

Brightness

350 nits

Contrast Ratio

1500:01:00

Viewing Angle

89 Degrees

Response Time

20ms

Y70 Touch Infinite

Yes, Nexus Touch

Product Warranty

3 Years

Note

*Price, feature and specifications are subject to change without notice
