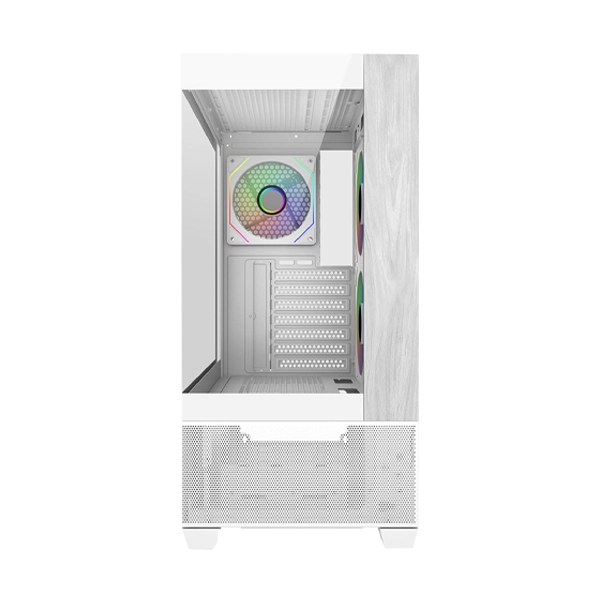

Natural Wood Front Panel Design
Crafted from real wood, the front panel brings a warm, natural tone that blends seamlessly into living spaces, creative studios, or themed gaming rooms.
270° Full-View Tempered Glass with Seamless Bevel Design
Dual tempered glass panels with 45° beveled edges offer an immersive panoramic showcase of your components and lighting.
Optimized Tower Layout with Independent PSU Chamber
A vertical structure with a dedicated lower PSU compartment separates thermal zones for cleaner cable routing and improved airflow control.
Vertical Cooling Architecture
Supports up to 10 fans in a bottom-to-top airflow layout to accelerate heat dissipation and maintain peak thermal efficiency.
High-Performance Radiator Support
Top radiator support up to 360mm and side radiator support up to 240mm—ideal for liquid cooling configurations.
Pre-installed ARGB Fan Setup with Motherboard Sync Support
Includes 3 ARGB fans—2 reverse-blade side intake fans and 1 rear exhaust fan. Each fan features daisy-chain connectors for cleaner cable management and streamlined setup, and is fully compatible with major motherboard ARGB software for synchronized lighting control.
Large Mesh Ventilation Zones
Mesh panels on the top and bottom enhance airflow and system-wide thermal dynamics.
Support for RTX 50 Series Graphics Cards
Maximum GPU length support up to 425mm—ready for flagship next-gen graphics cards.
Upgraded High-Speed I/O Panel
Features dual USB 3.0 Type-A ports and a USB 3.2 Gen 2×2 Type-C port with up to 20Gbps transfer speed—perfect for fast data access and modern device connectivity.
|
Product Name |
Elite 690 Wood |
|
Product Number |
E690-WHNN-S00 |
|
Color |
White |
|
Front Panel |
Tempered Glass + Wood |
|
Side Panel (left) |
Tempered Glass |
|
Side Panel (right) |
Steel |
|
Dimensions (LxWxH) – Incl. Protrusions |
434 x 218 x 454mm |
|
Dimensions (LxWxH) – Excl. Protrusions |
430 x 218 x 435mm |
|
Volume (Liters Incl. Protrusions) |
42.93L |
|
Motherboard Support |
ATX / Micro-ATX / ITX |
|
Expansion Slots |
7 |
|
Drive Bays |
|
|
5.25’’ ODD |
N/A |
|
3.5’’ HDD |
1 (max 2) |
|
2.5’’ SSD |
1 (Max 2) |
|
I/O Panel |
|
|
USB Ports |
1 x USB Type C 20Gbps / 2 x USB 3.0 |
|
Audio In / Out 3.5 mm |
1 x 3.5mm Combo |
|
Fan Support |
|
|
Top |
2 x 140mm / 3 x 120mm |
|
Rear |
1 x 120mm |
|
Side Mount |
2 x 120mm |
|
Bottom |
3 x 120mm |
|
Preinstalled Fan(s) |
|
|
Rear |
1 x 120mm ARGB PWM |
|
Side Mount |
2 x 120mm ARGB PWM reverse fan |
|
Radiator Support |
|
|
Top |
360 / 280 / 240 / 120mm |
|
Bottom |
360 / 240 / 120mm |
|
Side Mount |
240 / 120mm |
|
Clearances |
|
|
CPU Cooler |
170mm |
|
Power Supply |
250mm |
|
Graphics Card |
425mm |
|
Power Supply Support |
ATX |
|
Warranty |
2 Years |
|
Note** |
*Price, feature and specifications are subject to change without notice. |
