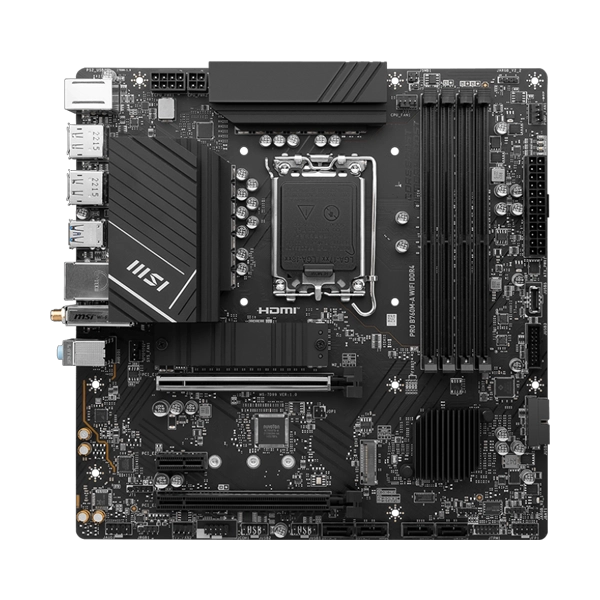

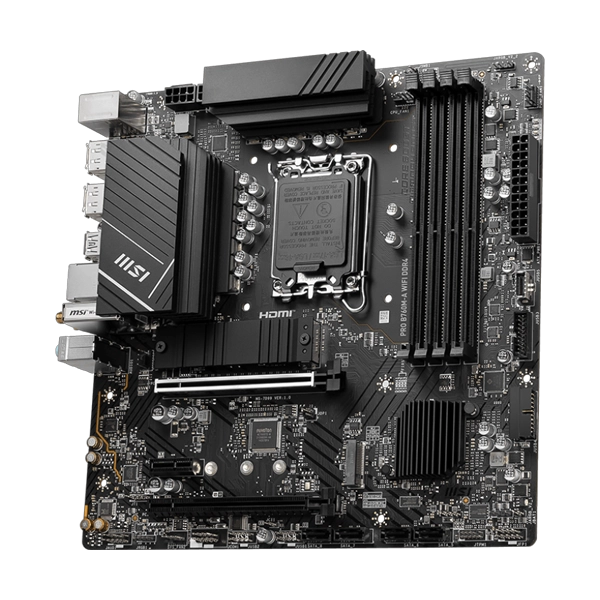

MSI Pro B760M-A WIFI DDR4 Motherboard

FEATURES

PRO B760M-A WIFI DDR4

PRO B760M-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.

12+1+1 POWER DESIGN

Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.

DIY FRIENDLY

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

DDR4 MEMORY SOLUTION

With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.

BIOS & SOFTWARE

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

SPECIFICATIONS

Brand	MSI
Model	PRO-B760M-A-WIFI-DDR4
Supported CPU
CPU Socket Type	LGA1700
CPU Type	13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Chipsets
Chipset	INTEL B760
Memory
Number of Memory Slots	4 x DDR4
Memory Standard	Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133
Maximum Memory Supported	128 GB
Channel Supported	Dual Channel DDR4 Memory Technology
Expansion Slots
PCI Express x1	1 x PCI Express x1 slot
PCI Express x16	2.x PCI-E x16 slot,PCI_E1 PCIe 4.0 supports up to x16 (From CPU), PCI_E2 PCIe 3.0 supports up to x1 (From Chipset), PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Storage Devices
SATA 3Gb/s	4 x SATA 6Gb/s connectors
Onboard Video
Onboard Video Chipset	Integrated
Onboard Audio
Audio Channels	7.1-Channel High Definition Audio
Audio Chipset	Realtek ALC897 Codec
Onboard LAN
LAN Chipset	Realtek® RTL8125BG 2.5Gbps LAN controller
Rear Panel Ports
USB	USB, 3.2 Gen 1 5Gbps (Type-A), USB 2.0 USB 3.2 Gen 2 10Gbps (Type-A)
Audio Ports	Audio Connectors
PS/2	1 x PS/2 Keyboard/Mouse combo port
Video Ports	1 x DisplayPort and 1 x HDMI
HDMI	1 x HDMI Port
Onboard USB
Onboard USB	N/A
Onboard 1394
Onboard 1394	N/A
Physical Spec
Form Factor	Micro ATX Form Factor
Power Pin	1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR)
Dimensions	243.84mmx243.84mm
Warranty	3 Years
Note*	Price, feature and specifications are subject to change without notice.
