Brand | Gigabyte |

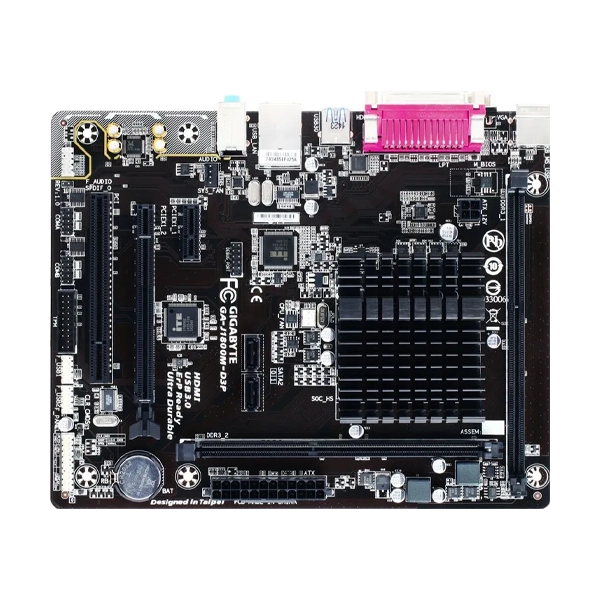

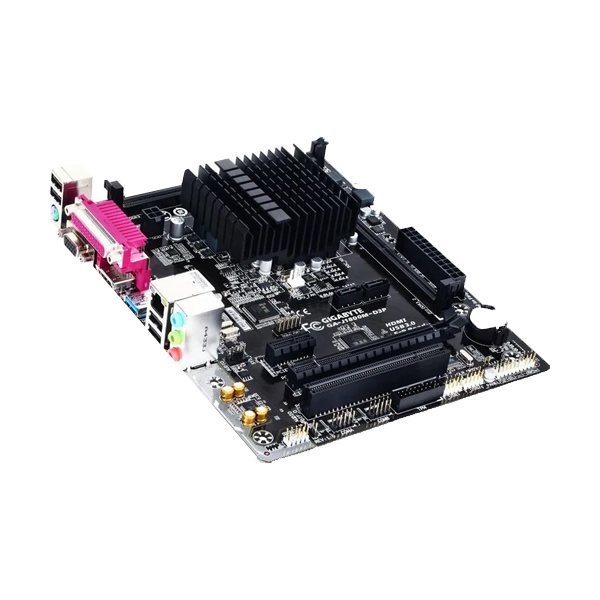

Model | GA-J1800M-D3P |
Color | Black |
CPU | Integrated Intel® Dual-Core Celeron® J1800 SoC |
CPU Speed | 2.41 GHz |
CPU Cache | 1 MB Cache |
Memory Type | DDR3 / DDR3L |
Memory Slots | 2 × DDR3 DIMM Slots |
Maximum Memory | Up to 8GB |
Memory Speed | DDR3 1333 MHz |
Memory Architecture | Dual Channel |
ECC Support | Non-ECC Memory Support |
Integrated Graphics | Intel® Integrated Graphics (SoC) |
Display Output | 1 × D-Sub Port (2560×1600 Maximum Resolution) |
Display Output | 1 × HDMI Port (1920×1080 Maximum Resolution) |
Audio Codec | Realtek® ALC887 Codec |
Audio Support | High Definition Audio, 2/4/5.1/7.1 Channel |
S/PDIF Support | Yes |
LAN | Realtek® GbE LAN Chip (10/100/1000 Mbps) |
Expansion Slot 1 | 1 × PCI Express x16 Slot (Running at x1) |
Expansion Slot 2 | 1 × PCI Express x1 Slot |
Expansion Slot 3 | 1 × PCI Slot |
SATA Interface | 2 × SATA 3Gb/s Connectors |
USB 3.0 | 1 × USB 3.0/2.0 Rear Port |
USB 2.0 | 8 × USB 2.0/1.1 Ports (4 Rear + 4 Internal Header) |
Power Connector | 1 × 24-pin ATX Main Power Connector |
CPU Power Connector | 1 × 4-pin ATX 12V Connector |
Fan Headers | 1 × CPU Fan Header + 1 × System Fan Header |
Front Panel Connector | 1 × Front Panel Header |
Front Audio Connector | 1 × Front Panel Audio Header |
S/PDIF Header | 1 × S/PDIF Out Header |
USB Headers | 2 × USB 2.0/1.1 Headers |
Serial Port Header | 2 × Serial Port Headers |
TPM Support | 1 × Trusted Platform Module Header |
CMOS | 1 × Clear CMOS Jumper |

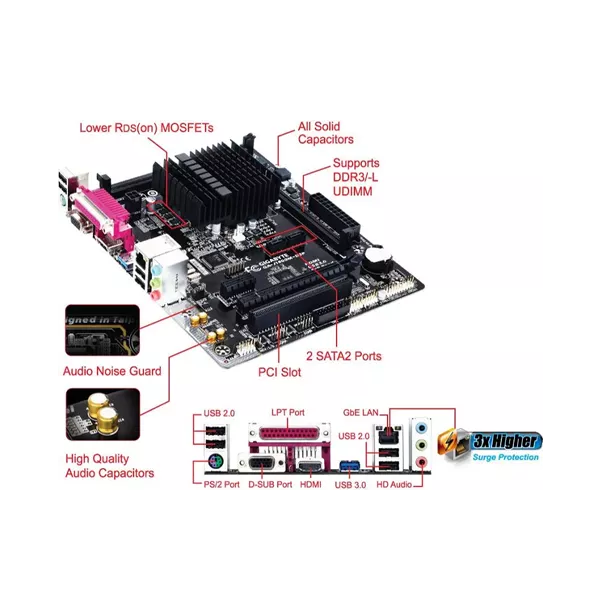

Rear PS/2 Port | 1 × PS/2 Keyboard/Mouse Port |
Rear Display Ports | 1 × D-Sub + 1 × HDMI |
Rear Parallel Port | 1 × Parallel Port |
Rear USB Ports | 1 × USB 3.0/2.0 + 4 × USB 2.0/1.1 |
Rear LAN Port | 1 × RJ-45 Port |
Rear Audio Ports | 3 × Audio Jacks (Line In, Line Out, Mic In) |
I/O Controller | iTE® I/O Controller Chip |
Hardware Monitoring | System Voltage Detection |
Temperature Monitoring | CPU/System Temperature Detection |
Fan Monitoring | CPU/System Fan Speed Detection |
Fan Control | CPU/System Fan Speed Control |
BIOS | 64 Mbit Flash |
BIOS Type | AMI UEFI BIOS |
BIOS Features | PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
Software Support | Xpress Install, @BIOS, APP Center |
Charging Feature | ON/OFF Charge Support |
Bundled Software | Norton® Internet Security (OEM Version) |
Additional Software | Intel® Smart Connect Technology |
Operating System Support | Windows 10 / 8.1 / 8 / 7 |
Form Factor | Micro ATX |
Dimensions | 22.6 cm × 18.0 cm |
Warranty | 3 Year |
Note | *Prices, Specifications & Features are subject to change without notice |
