Brand | Gigabyte |

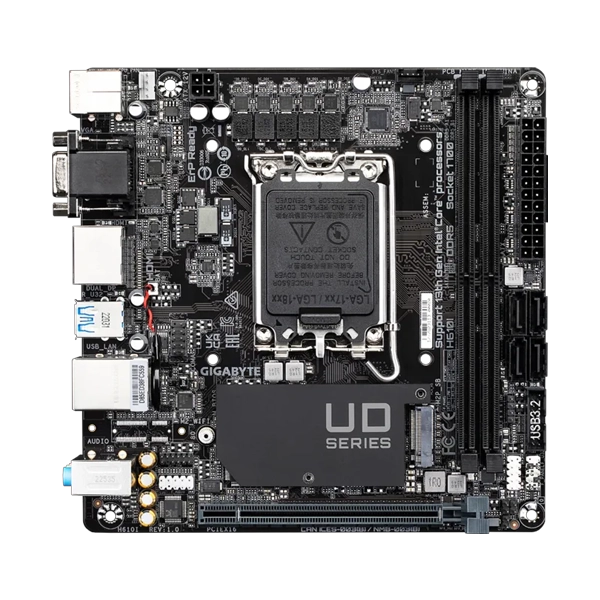

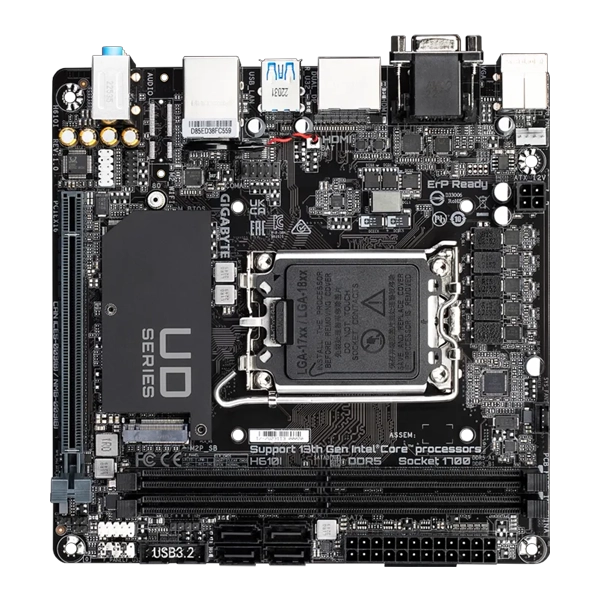

Model | H610I |
Color | Black |
CPU | LGA1700 Socket: Supports 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
CPU Cache | L3 Cache varies with CPU |
Chipset | Intel® H610 Express Chipset |
Memory Type | DDR5 |
Memory Slots | 2 × DDR5 DIMM Sockets |
Maximum Memory | Up to 128GB (64GB per DIMM) |
Memory Architecture | Dual Channel |
Memory Speed Support | 13th Gen Intel Core i9/i7: DDR5 5600/5200/4800/4400 MT/s |
Memory Speed Support | 13th Gen Intel Core i5/i3 & 12th Gen Intel Core/Pentium/Celeron: DDR5 4800/4400 MT/s |
ECC Support | ECC Un-buffered DIMM supported (Non-ECC mode operation) |
Memory Support | Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 |
XMP Support | Supports Extreme Memory Profile (XMP) Memory Modules |
Integrated Graphics | Intel® HD Graphics Support |
Display Output | 1 × D-Sub (1920×1200 @ 60Hz) |
Display Output | 1 × HDMI (4096×2160 @ 60Hz), HDMI 2.1, HDCP 2.3 |
Display Output | 2 × DisplayPort (4096×2304 @ 60Hz), DisplayPort 1.2 |
Multi Display Support | Supports up to 3 displays simultaneously |
Audio Codec | Realtek® Audio CODEC |
Audio Channels | High Definition Audio, 2/4/5.1/7.1 Channel Support |
LAN | Intel® GbE LAN Chip (1Gbps/100Mbps) |
Expansion Slot | 1 × PCI Express x16 Slot (PCIe 4.0, x16 Mode) |
M.2 Storage | 1 × M.2 Connector (Socket 3, M Key, 2280 PCIe 3.0 x4/x2 SSD Support) |
SATA Storage | 4 × SATA 6Gb/s Connectors |
USB 3.2 | 4 × USB 3.2 Gen 1 Ports (2 Rear + 2 Internal Header) |
USB 2.0 | 4 × USB 2.0/1.1 Rear Ports + 2 × Internal Header Ports |
Power Connector | 1 × 24-pin ATX Main Power Connector |
CPU Power Connector | 1 × 4-pin ATX 12V Connector |
Fan Headers | 1 × CPU Fan Header, 1 × System Fan Header |
RGB Support | 1 × RGB LED Strip Header |
Internal Connectors | Front Panel Header, Front Audio Header, Speaker Header |
Internal USB Header | 1 × USB 3.2 Gen 1 Header, 1 × USB 2.0/1.1 Header |
TPM Support | 1 × Trusted Platform Module Header |
Additional Headers | Serial Port Header, Clear CMOS Jumper, Chassis Intrusion Header |

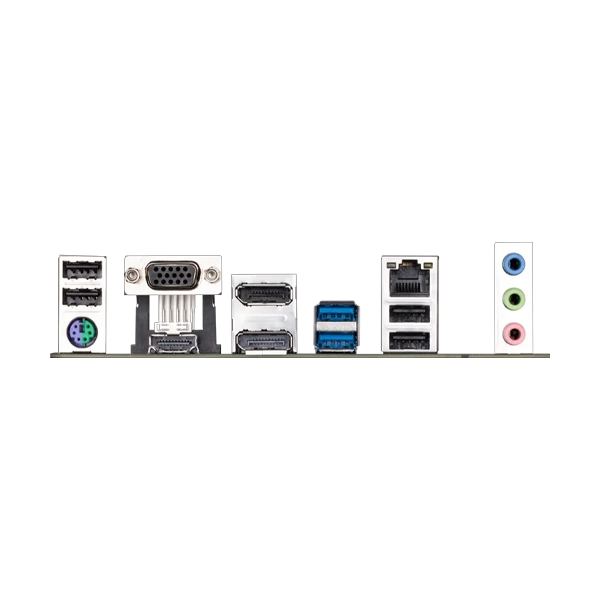

Rear I/O Ports | 1 × PS/2 Keyboard/Mouse Port |
Rear USB Ports | 2 × USB 3.2 Gen 1 + 4 × USB 2.0/1.1 |
Rear Display Ports | 1 × D-Sub, 2 × DisplayPort, 1 × HDMI |
Rear Network Port | 1 × RJ-45 LAN Port |
Rear Audio Ports | 3 × Audio Jacks |
I/O Controller | iTE® I/O Controller Chip |
Hardware Monitoring | Voltage Detection, Temperature Detection, Fan Speed Detection |
Fan Control | Fan Speed Control & Fan Fail Warning |
BIOS | 256 Mbit Flash, AMI UEFI BIOS |
BIOS Features | PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
Software Support | APP Center, @BIOS, EasyTune, Ambient LED, Smart Backup, System Information Viewer |
BIOS Update | Supports Q-Flash & Xpress Install |
Bundle Software | Norton® Internet Security (OEM Version) |
Operating System | Windows 11 64-bit / Windows 10 64-bit Support |
Form Factor | Mini-ITX |
Wi-Fi | No Built-in Wi-Fi |
Dimensions | 17.0 cm × 17.0 cm |
Note | *Prices, Specifications & Features are subject to change without notice |
