Brand | Gigabyte |
Model | GA-H110M M.2 |
Color | Black |
Platform | INTEL |
Socket | LGA1151 |
Cpu Type | 7th Gen,6th Gen |
Chipset | H110 |
Memory Speed | up to 2400 |
Max Memory Support | 32 GB |
Supported Memory Type | DDR4 |
Channel Supported | Dual Channel |
Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for Extreme Memory Profile (XMP) memory modules | |
Expansion Slots | 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) |
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
2 x PCI Express x1 slots, supporting PCIe 2.0 and running at x1 (PCIEX1_1, PCIEX1_2) | |

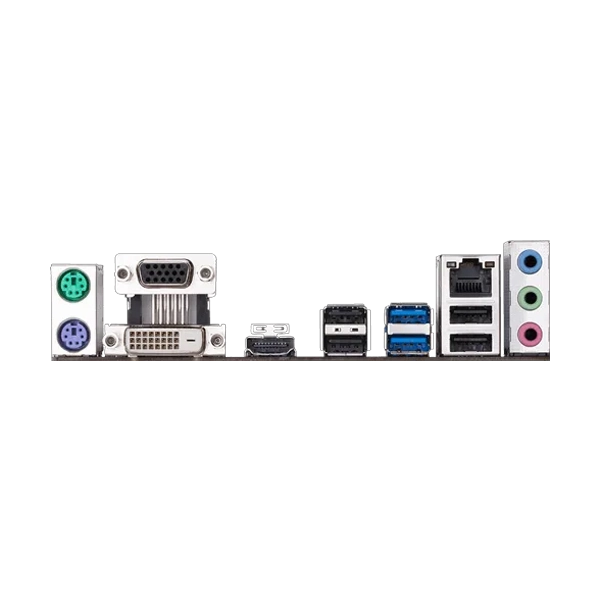

Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port |
1 x serial port | |
1 x D-Sub port (Note) | |
1 x HDMI port (Note) | |
2 x USB 3.2 Gen 1 ports | |
4 x USB 2.0/1.1 ports | |
1 x RJ-45 port | |
3 x audio jacks | |
Internal I/O Connector | 1 x 24-pin ATX main power connector |
1 x 4-pin ATX 12V power connector | |
1 x CPU fan header | |
1 x system fan header | |
1 x M.2 Socket 3 connector | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB 3.2 Gen 1 header | |
1 x USB 2.0/1.1 header | |
1 x Trusted Platform Module (TPM) header | |
1 x Clear CMOS jumper | |
Form Factor | Micro-ATX |
Warranty | 3 Years |
Note | **Prices, Specifications & Features are subject to change without notice |
