Brand | Gigabyte |
Model | B860M AORUS ELITE WIFI6E |
Color | Black |
Platform | INTEL |
Socket | LGA1851 |
Cpu Type | Core Ultra |
Chipset | B860 |
Memory Speed | up to 9200 |
Max Memory Support | 256 GB |
Supported Memory Type | DDR5 |
Channel Supported | Dual Channel |
Memory Feature | Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) | |
Graphics Port | 1 x USB4 USB Type-C,1 x DisplayPort,1 x HDMI |
Expansion Slots | CPU: |
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |

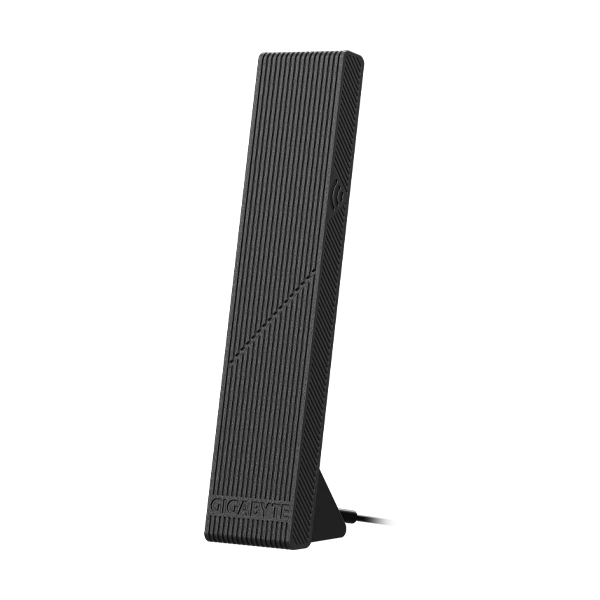

Wireless Networking | WiFi 6E,Bluetooth 5.3 |

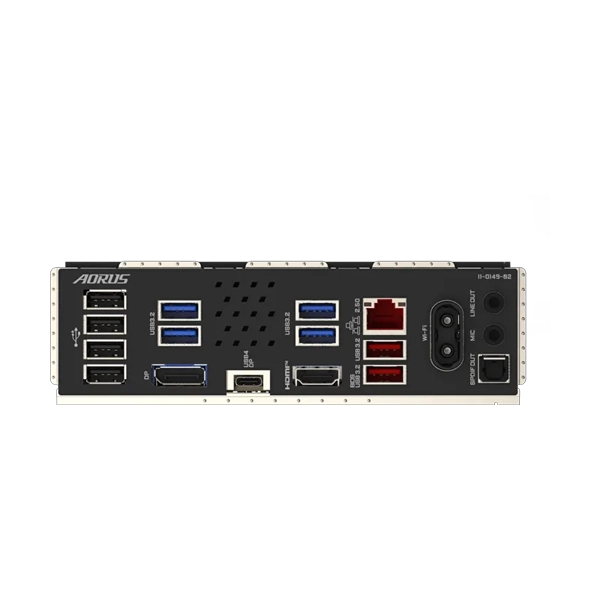

Back Panel I/O Ports | 4 x USB 2.0/1.1 ports |
4 x USB 3.2 Gen 1 ports | |
1 x DisplayPort* | |
1 x USB4® USB Type-C® port (DisplayPort*) | |
1 x HDMI port* | |
1 x RJ-45 port | |
2 x USB 3.2 Gen 2 Type-A ports (red) | |
2 x antenna connectors (2T2R) | |
2 x audio jacks | |
1 x optical S/PDIF Out connector | |
Internal I/O Connector | 1 x 24-pin ATX main power connector |
2 x 8-pin ATX 12V power connectors | |
1 x CPU fan header | |
1 x CPU fan/water cooling pump header | |
3 x system fan headers | |
1 x system fan/water cooling pump header | |
3 x addressable RGB Gen2 LED strip headers | |
1 x RGB LED strip header | |
3 x M.2 Socket 3 connectors | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB Type-C® header, with USB 3.2 Gen 2 support | |
1 x USB 3.2 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
2 x Thunderbolt™ add-in card connectors | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) | |
1 x HDMI port* | |
1 x power button | |
1 x reset button | |
1 x Q-Flash Plus button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |
Form Factor | Micro-ATX |
Warranty | 3 Years |
Note | *Prices, Specifications & Features are subject to change without notice |
