X3D Turbo Mode 2.0
Incredible X3D performance unleashed by AI DDR5 OC up to 9000MT/s
DriverBIOS
Wi-Fi Driver Pre-install, Power-On & EZ to Launch the Network.
AMD Socket AM5
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors Digital twin 18+2+2 phases VRM solution
Dual Channel DDR5
4*DIMMs with AMD EXPO™Memory Module Support
M.2 EZ-Flex
high-efficiency heat dissipation & flexible patented baseplate for M.2 SSD
WIFI EZ-Plug
Quick and easy design for Wi-Fi antenna installation
M.2 EZ-Latch Click & Plus
Quick Release & Screwless Design on M.2 slots and heatsinks
Friendly UI
Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage
4*M.2 slots, including PCIe 5.0 x4
PCB Thermal Plate
14% thermal improvement and reinforced motherboard stability.
Efficient Thermal
VRM Thermal Armor Advanced & M.2 Thermal Guard L & M.2 Thermal Guard Ext.
Fast Networking
5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
Extended Connectivity
HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65
|
Brand |
Gigabyte |
|
Model |

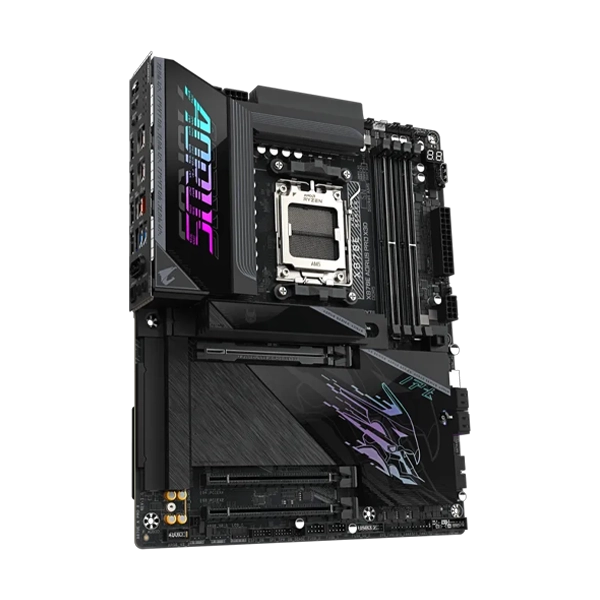

X870E AORUS PRO X3D |
|
Colour |
Black |
|
CPU Support |
AMD Socket AM5: Ryzen™ 9000/8000/7000 Series (check GIGABYTE site for latest) |
|
Chipset |
AMD X870E |
|
Memory |
4 x DDR5 DIMM up to 256 GB (64 GB single); DDR5 9000(O.C) to 4800 MT/s; Dual channel; Non-ECC 1Rx8/2Rx8/1Rx16; AMD EXPO™/XMP support (check support list) |
|
Onboard Graphics |
AMD Radeon™ Graphics: 1 x HDMI rear (4096×2160@60 Hz, HDMI 2.1), 1 x HDMI front (1920×1080@30 Hz, HDMI 1.4); ASMedia USB4®: 2 x USB4® Type-C (3840×2160@240 Hz, DP 1.4, HDR) |
|
Audio |
Realtek® ALC1220; HD 2/4/5.1/7.1-channel; S/PDIF Out; DSD support (rear line out) |
|
LAN |
Realtek® 5GbE (5/2.5/1 Gbps/100 Mbps) |
|
Wireless |
Qualcomm® Wi-Fi 7 QCNCM865 (802.11a/b/g/n/ac/ax/be, 2.4/5/6 GHz, 320 MHz); Bluetooth 5.4 (Windows 11 required for Wi-Fi 7) |
|
Expansion Slots |
CPU: 1 x PCIe x16 (5.0 x16/4.0 x8/x4); Chipset: 1 x PCIe x16 (x4), 1 x PCIe x16 (x2) |
|
Storage |
M.2 (CPU): M2A_CPU (PCIe 5.0/4.0 x4/x2, 25110/22110/2580/2280), M2B_CPU (PCIe 5.0 x4/x2, 22110/2280, shares w/ USB4); Chipset: M2C_SB/M2D_SB (PCIe 4.0 x4/x2, 22110/2280); 4 x SATA 6Gb/s; RAID 0/1/5/10 (NVMe), 0/1/10 (SATA) |
|
USB (Rear) |
USB4®: 2 x Type-C; 2 x Type-C Gen 2; 5 x Gen 2 Type-A (red); 3 x Gen 1 |
|
USB (Internal) |
1 x Type-C Gen 2×2 (65W PD); 2 x Gen 1 headers; 2 x 2.0 headers |
|
Internal Connectors |
Power: 24-pin ATX, 2 x 8-pin 12V, PCIe power; Fans/Pump: 1 x CPU, 1 x CPU OPT, 4 x SYS, 2 x SYS/WP; RGB: 3 x ARGB Gen2, 1 x RGB; Other: Front panel/audio, USB headers, TPM, HDMI front, noise detection, reset/CMOS jumpers, temp sensors |
|
Back Panel |
HDMI; Reset/power/Clear CMOS/Q-Flash Plus buttons; 2 x USB4® Type-C; 2 x USB-C Gen 2; 5 x USB 3.2 Gen 2 (red); 3 x Gen 1; RJ-45; 2 x antennas; 2 x audio jacks; S/PDIF Out |
|
I/O Controller |
iTE® chip; H/W monitoring (voltage/temp/fan/flow/noise, fail warning, control) |
|
BIOS |
AMI UEFI, 512 Mbit; PnP/DMI/WfM/SM BIOS/ACPI support |
|
Unique Features |
GIGABYTE Control Center, Q-Flash/Q-Flash Plus, Smart Backup |
|
Bundled Software |
Norton® Internet Security (OEM) |
|
OS Support |
Windows 11 64-bit |
|
Form Factor |
ATX (30.5 x 24.4 cm) |
|
Warranty |
3 Years |
|
Note* |
Price, feature and specifications are subject to change without notice. |
