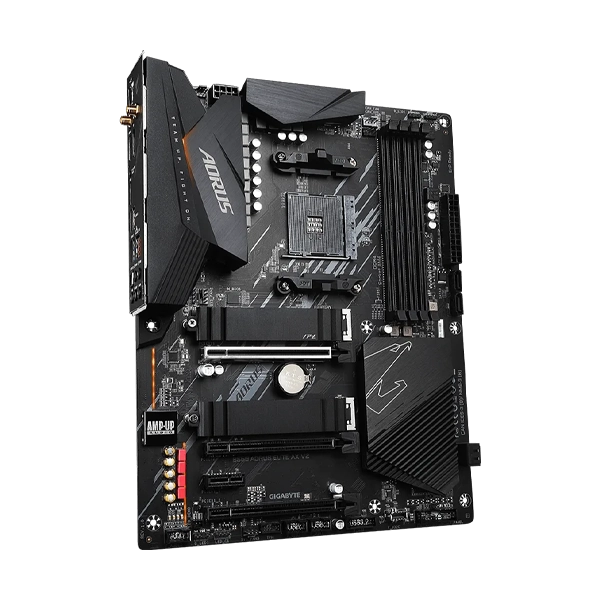

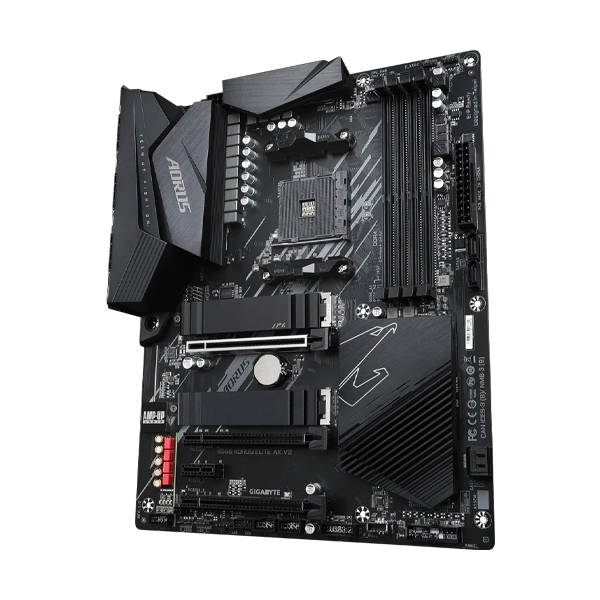

Gigabyte B550 Aorus Elite AX V2 WIFI ATX Motherboard

Brand

Gigabyte

Model

B550 AORUS ELITE AX V2

Color

Black

Platform

AMD

Socket

AM4

Cpu Type

Ryzen 5000, Ryzen 5000 G, Ryzen 4000 G, Ryzen 3000, Ryzen 3000 G

Chipset

B550

Memory Speed

up to 4733

Max Memory Support

128 GB

Supported Memory Type

DDR4

Channel Supported

Dual Channel

Memory Feature

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

* ECC memory (ECC mode) support varies by CPU

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Graphics Port

1 x DisplayPort,1 x HDMI

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™ 5000 Series* and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode

* Actual support may vary by AMD CPU\'s specification

- AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series Processors support PCIe 3.0 x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

- Supporting PCIe 3.0 x2 mode

1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

Wireless Networking

WiFi 6,Bluetooth 5

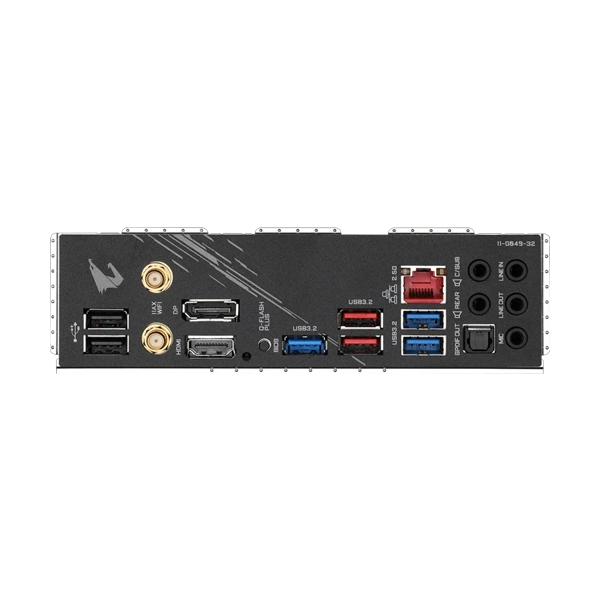

Back Panel I/O Ports

1 x DisplayPort

1 x HDMI port

2 x SMA antenna connectors (2T2R)

2 x USB 3.2 Gen 2 Type-A*/USB 3.2 Gen 1 ports (red)

* For AMD Ryzen™ 5000 Series/3000 Series Processors only.

3 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks

Internal I/O Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x CPU cooler LED strip/RGB LED strip header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x front panel header

1 x front panel audio header

1 x USB Type-C™ port, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

Form Factor

ATX

Warranty

3 Year

Note

*Features, Price, Specifications are subject to change without notice.
