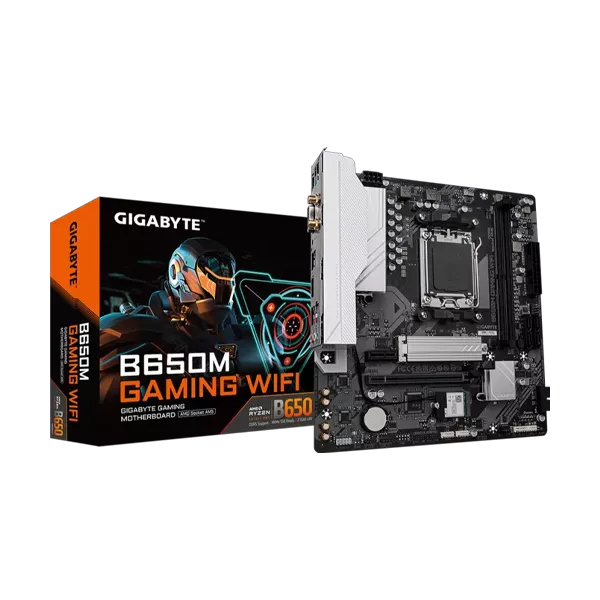

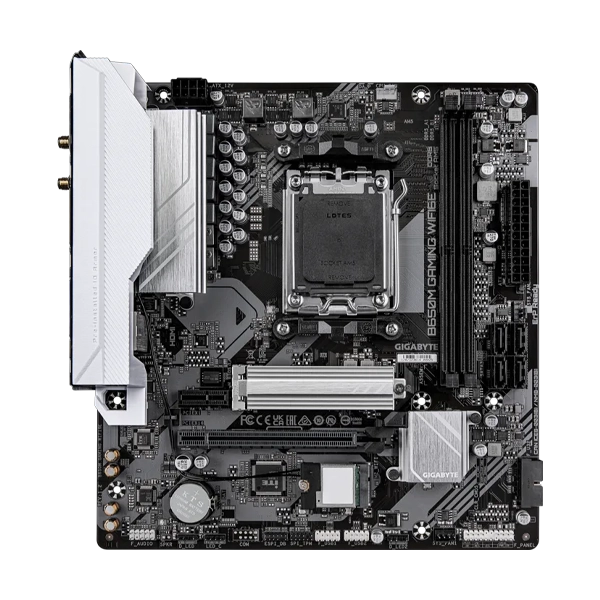

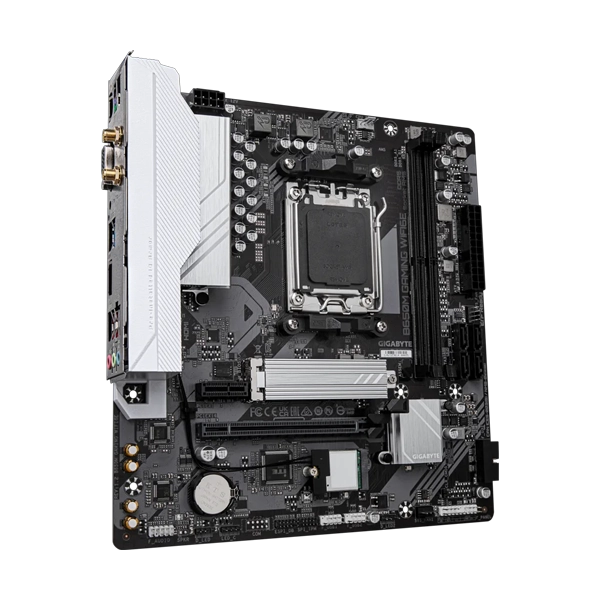

Gigabyte B650M Gaming WIFI6E M-ATX Motherboard

Brand

Gigabyte

Model

B650M GAMING WIFI6E

Color

Black

Platform

AMD

Socket

AM5

Cpu Type

Ryzen 9000,Ryzen 8000,Ryzen 7000

Chipset

B650

Memory Speed

up to 6400

Max Memory Support

128 GB

Supported Memory Type

DDR5

Channel Supported

Dual Channel

Memory Feature

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme

Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.)

Graphics Port

1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Wireless Networking

WiFi 6E,Bluetooth 5.3

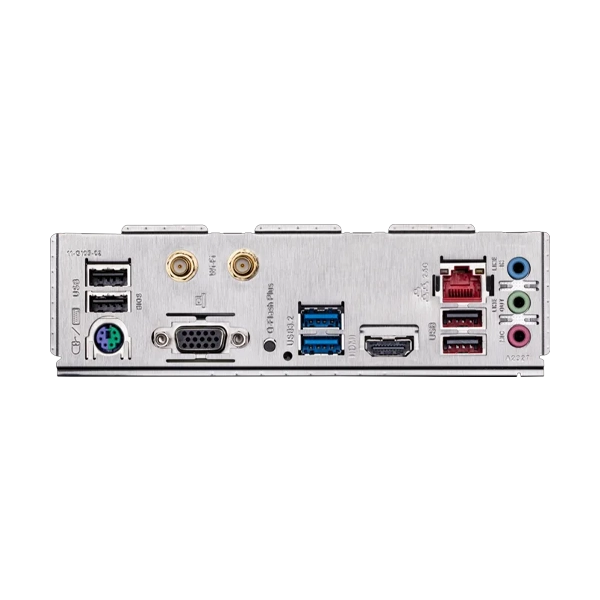

Back Panel I/O Ports

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port*

1 x Q-Flash Plus button

2 x USB 3.2 Gen 1 ports

1 x HDMI port*

1 x RJ-45 port

3 x audio jacks

* Actual support may vary by CPU.

Internal I/O Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x Clear CMOS jumper

Form Factor

Micro-ATX

Warranty

3 Year

Note

*Features, Price, Specifications are subject to change without notice.
