Brand | Gigabyte |
Model | B650M AORUS ELITE AX |
Color | Black |
Platform | AMD |
Socket | AM5 |
Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
Chipset | B650 |
Memory Speed | up to 8000 |
Max Memory Support | 256 GB |
Supported Memory Type | DDR5 |
Channel Supported | Dual Channel |
Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
Graphics Port | 1 x DisplayPort,1 x HDMI |
Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode | |
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
Wireless Networking | Wi-Fi 6E,Bluetooth 5.3 |

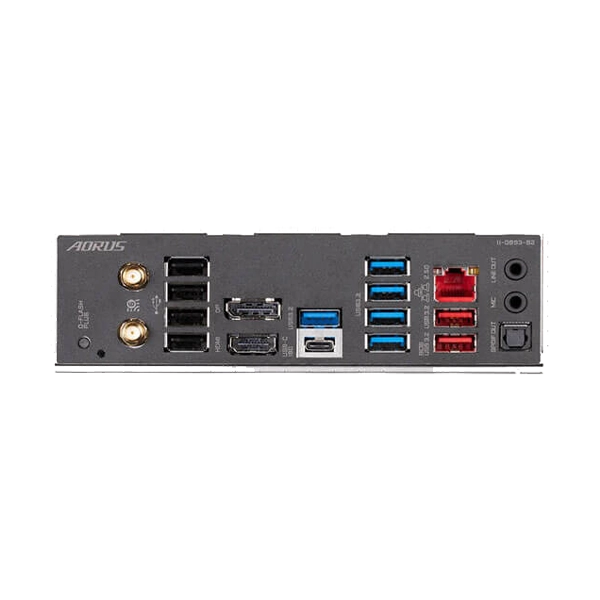

Back Panel I/O Ports | 1 x Q-Flash Plus button |
2 x SMA antenna connectors (2T2R) | |
1 x DisplayPort | |
1 x HDMI port | |
1 x USB Type-C® port, with USB 3.2 Gen 2 support | |
2 x USB 3.2 Gen 2 Type-A ports (red) | |
5 x USB 3.2 Gen 1 ports | |
4 x USB 2.0/1.1 ports | |
1 x RJ-45 port | |
1 x optical S/PDIF Out connector | |
2 x audio jacks | |
Form Factor | Micro-ATX |
Warranty | 3 Years |
Note | *Features, Price, Specifications are subject to change without notice. |
