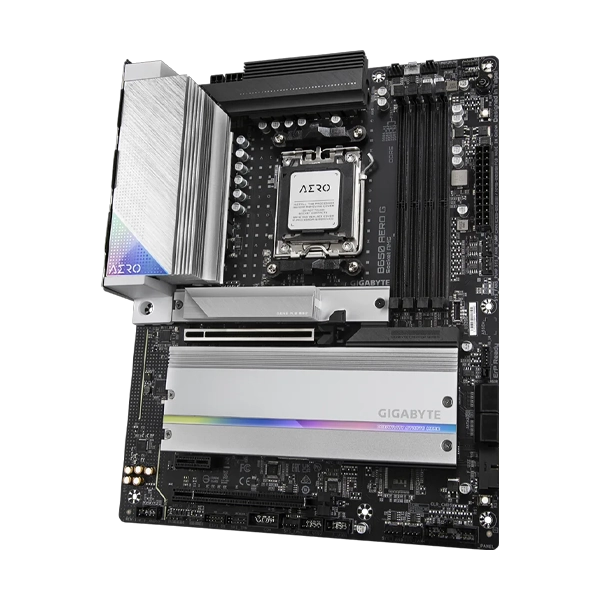

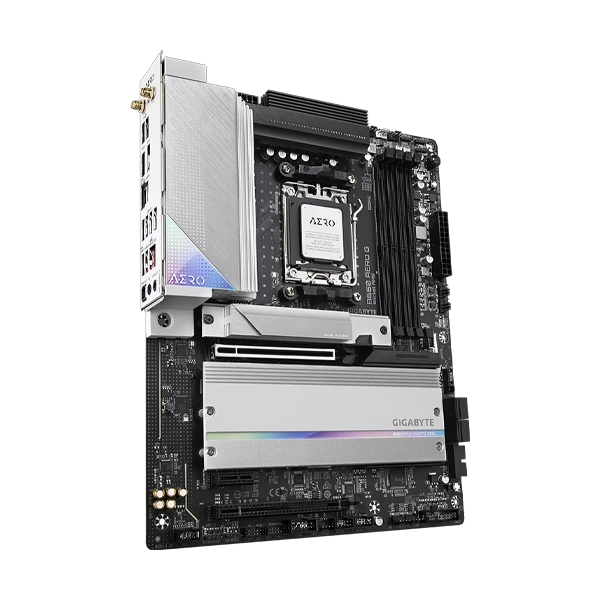

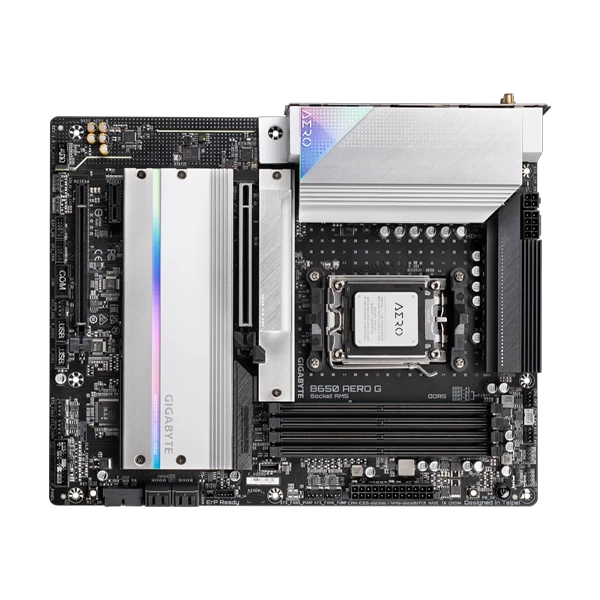

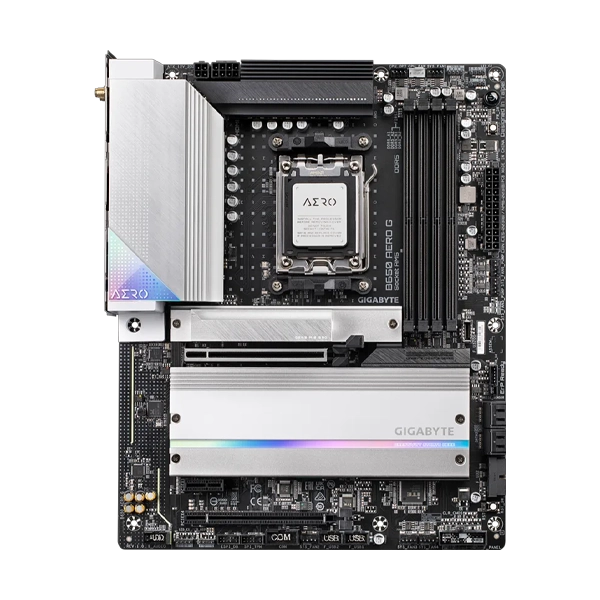

Gigabyte B650 Aero G WIFI ATX Motherboard

Brand

Gigabyte

Model

B650 AERO G

Color

Black

Platform

AMD

Socket

AM5

Cpu Type

Ryzen 7000, Ryzen 8000, Ryzen 7000

Chipset

B650

Memory Speed

up to 8000

Max Memory Support

256 GB

Supported Memory Type

DDR5

Channel Supported

Dual Channel

Memory Feature

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

Graphics Port

1 x USB Type-C,1 x HDMI

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

Wireless Networking

WiFi 6E,Bluetooth 5.3

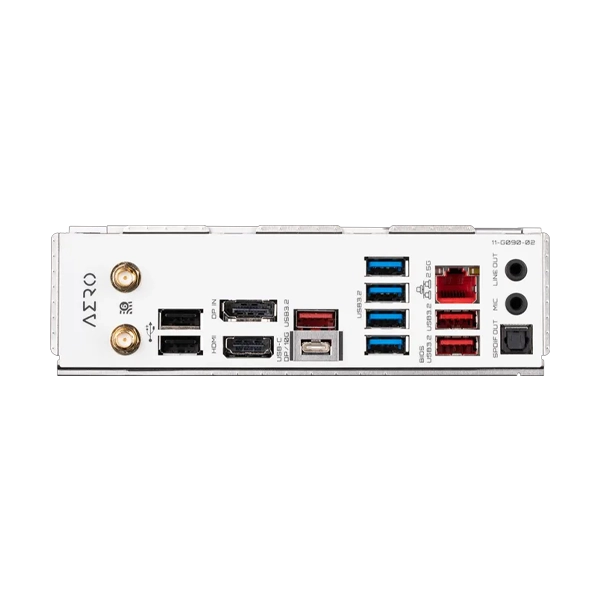

Back Panel I/O Ports

2 x SMA antenna connectors (2T2R)

2 x USB 2.0/1.1 ports

1 x DisplayPort In port

1 x HDMI port

3 x USB 3.2 Gen 2 Type-A ports (red)

1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support

4 x USB 3.2 Gen 1 ports

1 x RJ-45 port

2 x audio jacks

1 x optical S/PDIF Out connector

Internal I/O Connector

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

2 x system fan/water cooling pump headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

1 x THB_U4 add-in card connector

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x serial port header 1 x Q-Flash Plus button 1 x reset button

1 x reset jumper

2 x temperature sensor headers

1 x Clear CMOS jumper

Form Factor

ATX

Warranty

3 Year

Note

*Features, Price, Specifications are subject to change without notice.
