Brand | Gigabyte |
Model | B650M D3HP AX |
Color | Black |
Platform | AMD |
Socket | AM5 |
Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
Chipset | B650 |
Memory Speed | up to 7600 |
Max Memory Support | 256 GB |
Supported Memory Type | DDR5 |
Channel Supported | Dual Channel |
Memory Feature | Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules | |
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.) | |
Graphics Port | 2 x DisplayPorts,1 x HDMI |
Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
- AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode | |
- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode | |
- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode | |
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
Chipset: | |
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
Wireless Networking | Wi-Fi 6E,BLUETOOTH 5.3 |

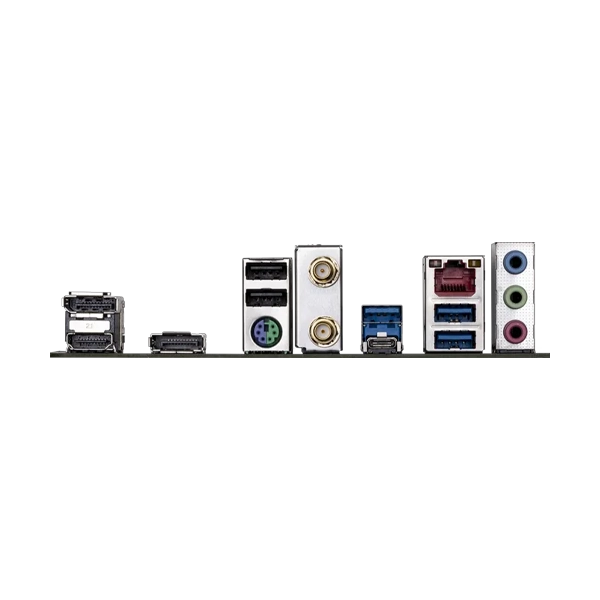

Back Panel I/O Ports | 1 x PS/2 keyboard/mouse port |
1 x USB Type-C® port, with USB 3.2 Gen 1 support | |
3 x USB 3.2 Gen 1 ports | |
2 x USB 2.0/1.1 ports | |
1 x HDMI port | |
2 x DisplayPorts | |
1 x RJ-45 port | |
3 x audio jacks | |
Internal I/O Connector | 1 x 24-pin ATX main power connector |
1 x 8-pin ATX 12V power connector | |
1 x CPU fan header | |
2 x system fan headers | |
2 x addressable LED strip headers | |
1 x RGB LED strip header | |
2 x M.2 Socket 3 connectors | |
4 x SATA 6Gb/s connectors | |
1 x front panel header | |
1 x front panel audio header | |
1 x USB Type-C® header, with USB 3.2 Gen 1 support | |
1 x USB 3.2 Gen 1 header | |
2 x USB 2.0/1.1 headers | |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
1 x Q-Flash Plus button | |
1 x reset jumper | |
1 x Clear CMOS jumper | |
Form Factor | Micro-ATX |
Warranty | 3 Years |
Note | *Features, Price, Specifications are subject to change without notice. |
