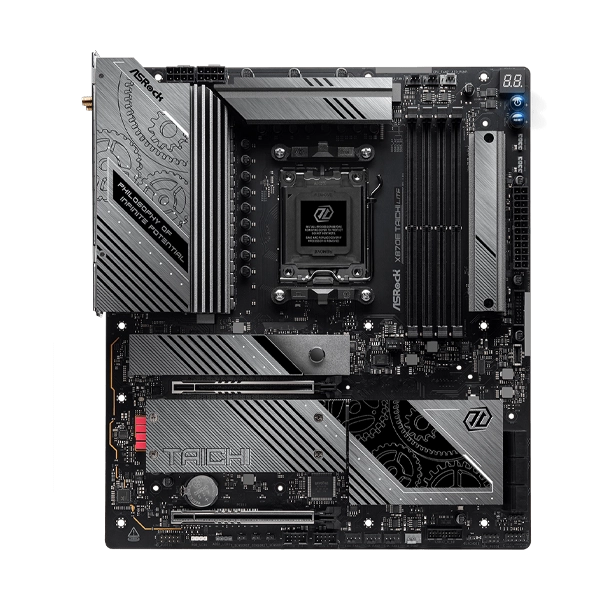

ASRock X870E Taichi Lite AM5 DDR5 EATX Motherboard

Brand

ASRock

Color

Black-Silver

Model

X870E TAICHI LITE

Unique Feature

Superb Productivity

– PCIe Gen5 (Graphics, M.2)

– Dual Channel DDR5

– USB4 Type-C Ports (40 Gb/s)

Rock-Solid Durability

– Server-Grade Low-Loss PCB

– 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor

– Flexible Integrated I/O Shield

– 20K Long-lasting Black Caps (high quality and conductive polymer capacitors)

Ultrafast Connectivity

– 5G LAN, 802.11be Wi-Fi 7 Module

– ASRock Lightning Gaming Ports

EZ Update

– BIOS Flashback Button

– ASRock Auto Driver Installer

CPU

– Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*

– Supports ASRock Hyper BCLK Engine

*The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details.

Chipset

– AMD X870E

Memory

– Dual Channel DDR5 Memory Technology

– 4 x DDR5 DIMM Slots

– Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC)*

– Max. capacity of system memory: 256GB

– Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*

*Please refer to Memory Support List on ASRock’s website for more information.

BIOS

– 256Mb AMI UEFI Legal BIOS with GUI support

Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)

– 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

– 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*

* Only the CPU’s embedded graphics can be displayed through USB4 ports.

If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.

Audio

– 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)

– WIMA Audio Capacitors (For Rear Outputs)

– ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR)

– Individual PCB Layers for R/L Audio Channel

– Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)

– Nahimic Audio

LAN

– 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s

– Realtek RTL8126

Wireless LAN

– 802.11be 2×2 Wi-Fi 7 Module

– Supports IEEE 802.11a/b/g/n/ac/ax/axe/be

– Supports 2.4GHz/5GHz/6GHz* frequency band

– Supports 160MHz channel bandwidth with 6GHz* frequency band

– 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology

– Supports Bluetooth 5.4

– Supports MU-MIMO

*The Wi-Fi 7 module is supported by Microsoft Windows® 11 only. There is no driver available for Windows® 10. The availability of the 6GHz band will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.

Slots

CPU:

– 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes*

Chipset:

– 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

– Supports AMD CrossFire™

* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.

Storage

CPU:

– 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

– 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

– 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

– 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

– 6 x SATA3 6.0 Gb/s Connectors

* Supports NVMe SSD as boot disks

M2_1 is the first priority for M.2 installation.

M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.

RAID

– Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

– Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

CPU:

– 2 x USB4 Type-C (Rear)

– 2 x USB 3.2 Gen2 Type-A (Rear)

Chipset:

– 1 x USB 3.2 Gen2x2 Type-C (Front)

– 3 x USB 3.2 Gen2 Type-A (Rear)

– 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front)

– 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection

Connector

– 3 x Thermistor Cable Headers

– 1 x Power LED and Speaker Header

– 1 x RGB LED Header*

– 3 x Addressable LED Headers**

– 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)***

– 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***

– 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

– 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***

– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

– 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)

– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

– 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

– 1 x Dr. Debug with LED

– 1 x Power Button with LED

– 1 x Reset Button with LED

* Supports in total up to 12V/3A, 36W LED Strip

** Support in total up to 5V/3A, 15W LED Strip

*** CPU_FAN1 supports the fan power up to 1A (12W).

CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP support the fan power up to 3A (36W).

CPU_FAN2, CHA_FAN1~4, AIO_PUMP and W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

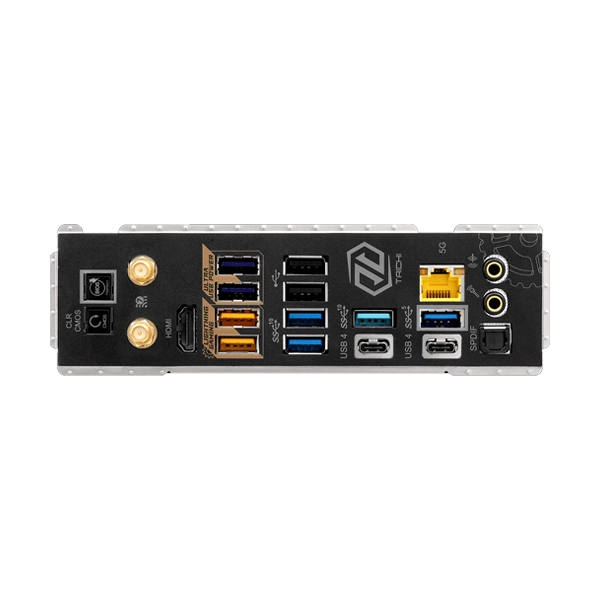

Rear Panel I/O

– 2 x Antenna Ports

– 1 x HDMI Port

– 1 x Optical SPDIF Out Port

– 2 x USB4 Type-C Ports (40 Gb/s)*

– 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)

– 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)

– 2 x USB 2.0 Ports

– 1 x RJ-45 LAN Port

– 1 x Clear CMOS Button

– 1 x BIOS Flashback Button

– 1 x Line Out Jack (Gold Audio Jack)

– 1 x Microphone Input Jack (Gold Audio Jack)

* Supports USB PD 3.0 up to 5V@3A (15W) charging

Software and UEFI

Software

– ASRock Motherboard Utility (A-Tuning)

– ASRock Polychrome SYNC

– ASRock XFast LAN

UEFI

– ASRock EZ Mode

– ASRock Full HD UEFI

– ASRock Auto Driver Installer

– ASRock Instant Flash

* These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

– 4 x SATA Data Cables

– 1 x ASRock WiFi 2.4/5/6 GHz Antenna

– 1 x ARGB Splitter Cable

– 3 x Thermistor Cables

Form Factor

– EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm

– 8 Layer PCB

– 2oz Copper PCB

OS

– Microsoft Windows® 10 64-bit / 11 64-bit

Certifications

– FCC, CE

– ErP/EuP ready (ErP/EuP ready power supply is required)

Warranty

3 Years

Note

* Features, Price, Specifications are subject to change without notice.
