| Brand |
Gigabyte |
| Model |
B850I AORUS PRO |
| Color |
Black |
| CPU |
AMD Socket AM5, support for: |
| |
AMD Ryzenâ„¢ 9000 Series Processors |
| |
AMD Ryzenâ„¢ 8000 Series Processors |
| |
AMD Ryzenâ„¢ 7000 Series Processors |
| |
|
| |
(Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset |
AMD B850 |
| Memory |
Support for DDR5 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules |
| |
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory |
| |
Dual channel memory architecture |
| |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| |
Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules |
| |
|
| |
(CPU and memory configuration may affect supported memory types, data rate (speed), and number of DRAM modules. Refer to the “Memory Support List” on GIGABYTE’s website for more info.) |
| Onboard Graphics |
Integrated Graphics Processor with AMD Radeonâ„¢ Graphics support: |
| |
1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| |
Support for HDMI 2.1 version and HDCP 2.3, and HDR |
| |
Support for native HDMI 2.1 TMDS compatible ports |
| |
|
| |
(Graphics specifications may vary depending on CPU support.) |
| Audio |
Realtek® ALC4080 CODEC, High Definition Audio, 2-channel |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Realtek® Wi-Fi 7 RTL8922AE: |
| |
802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands |
| |
Bluetooth 5.4 |
| |
Support for 11be 160MHz wireless standard |
| |
|
| |
(Actual data rate may vary depending on environment and equipment.)Â Note:Â Wi-Fi 7 features require Windows 11 SV3 to function properly. (No support driver for Windows 10). Wi-Fi 7 channels on 6 GHz band depend on country regulations. |
| Expansion Slots |
1 x PCI Express x16 slot, integrated in the CPU: |
| |
AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| |
|
| |
(The PCIEX16 slot can only support a graphics card or an NVMe SSD.) |
| Storage Interface |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: |
| |
AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| |
1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSDs |
| |
2 x SATA 6Gb/s connectors |
| |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 is only available on AMD Ryzenâ„¢ 9000 Series Processors) |
| |
RAID 0 and RAID 1 support for SATA storage devices |
| USB |
CPU: |
| |
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| |
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
| |
Chipset: |
| |
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
| |
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| |
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |
| |
1 x 8-pin ATX 12V power connector |
| |
1 x CPU fan header |
| |
1 x CPU fan/water cooling pump header |
| |
1 x system fan header |
| |
2 x addressable RGB Gen2 LED strip headers |
| |
1 x RGB LED strip header |
| |
2 x M.2 Socket 3 connectors |
| |
2 x SATA 6Gb/s connectors |
| |
1 x front panel header |
| |
1 x speaker header |
| |
1 x front panel audio header (routed from the adapter card on the rear panel) |
| |
1 x USB Type-C® header, with USB 3.2 Gen 2 support |
| |
1 x USB 3.2 Gen 1 header |
| |
1 x USB 2.0/1.1 header |
| |
1 x reset jumper |
| |
1 x Clear CMOS jumper |
| |
1 x chassis intrusion header |

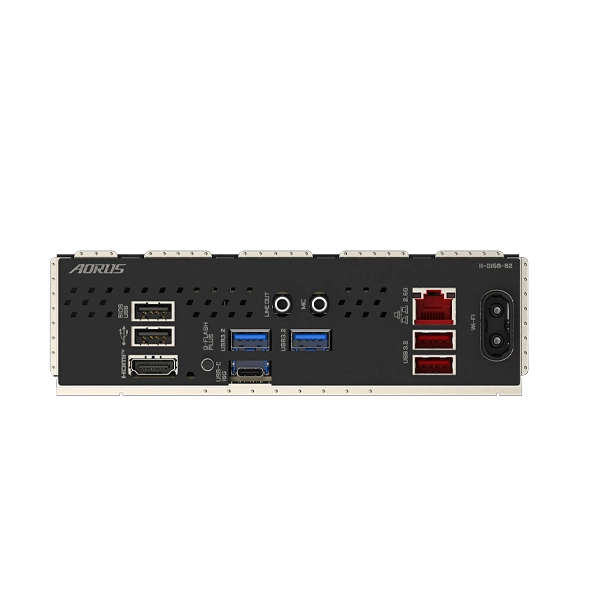

| Back Panel Connectors |
1 x Q-Flash Plus button |
| |
1 x HDMI port |
| |
2 x antenna connectors (2T2R) |
| |
1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| |
2 x USB 3.2 Gen 2 Type-A ports (red) |
| |
2 x USB 3.2 Gen 1 ports |
| |
2 x USB 2.0/1.1 ports |
| |
1 x RJ-45 port |
| |
2 x audio jacks |
| I/O Controller |
iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control (Depends on fan) |
| BIOS |
1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software |
Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit |
| Form Factor |
Mini-ITX Form Factor; 17.0cm x 17.0cm |
| Warranty |
3 Years |
| Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
