| Brand |
Gigabyte |
| Model |
B850 A ELITE WF7 ICE |
| Colour |
White |
| CPU |
AMD Socket AM5, supports Ryzenâ„¢ 9000/8000/7000 Series Processors |
| Chipset |
AMD B850 |
| Memory |
DDR5 8200(O.C) to 4800 MT/s, 4x DIMM, max 256GB, dual-channel, AMD EXPO & XMP support |
| Onboard Graphics |
AMD Radeonâ„¢ Graphics (varies by CPU) |
| Display Outputs |
1x DisplayPort (3840×2160@144Hz), 1x Front HDMI (1920×1080@30Hz) |
| Audio |
Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
| LAN |
Realtek® 2.5GbE LAN chip |
| Wireless |
Realtek® Wi-Fi 7 (RTL8922AE), Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be |
| PCIe Slots |
1x PCIe 5.0 x16 (for Ryzen 9000/7000), 2x PCIe 3.0 x1 |
| Storage |
3x M.2 (PCIe 5.0/4.0, varies by CPU), 4x SATA 6Gb/s, RAID 0/1/5/10 (varies by CPU) |
| USB Ports |
1x USB-C 3.2 Gen 2, 2x USB 3.2 Gen 2 Type-A, multiple USB 3.2 Gen 1 and USB 2.0 ports |
| Internal Connectors |
3x M.2, 4x SATA, 3x RGB headers, multiple fan headers, TPM header |

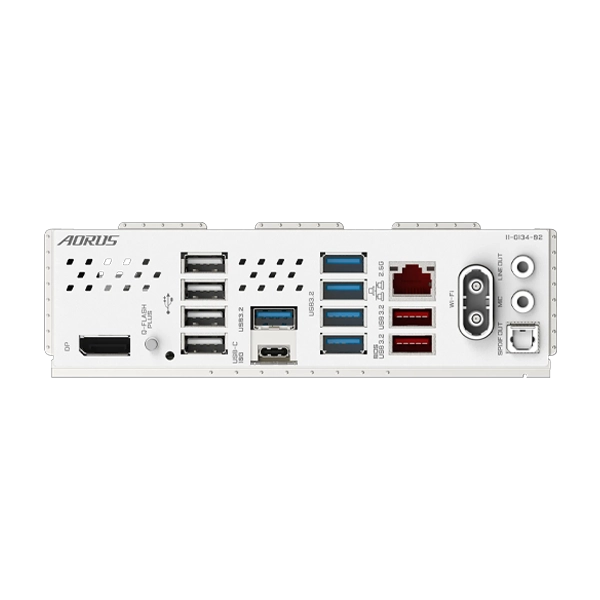

| Back Panel |
1x DisplayPort, 1x USB-C 3.2 Gen 2, 5x USB 3.2 Gen 1, 2x USB 3.2 Gen 2 Type-A, RJ-45, audio jacks, optical S/PDIF, antenna connectors |
| BIOS |
256 Mbit flash, AMI UEFI BIOS |
| Unique Features |
GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software |
Norton® Internet Security (OEM), LAN management software |
| OS Support |
Windows 11 64-bit |
| Form Factor |
ATX (30.5cm x 24.4cm) |
| Warranty |
3 Years |
| Note |
*Features, Price and Specifications are subject to change without notice. |
