| Brand |
Gigabyte |
| Model |
 B850 GAMING X WIFI6E |
| Colour |
Black |
| Chipset |
AMD B850 |
| CPU Socket |
AM5 |
| Memory Slots |
4x 288-Pin |
| Memory Support |
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s |
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| Expansion Slots |
1x PCIe 5.0 x16 2x PCIe 3.0 x1 |
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support |
| Form Factor |
ATX |
| CPU |
|
| Chipset |
AMD B850 |
| CPU Socket |
AM5 |

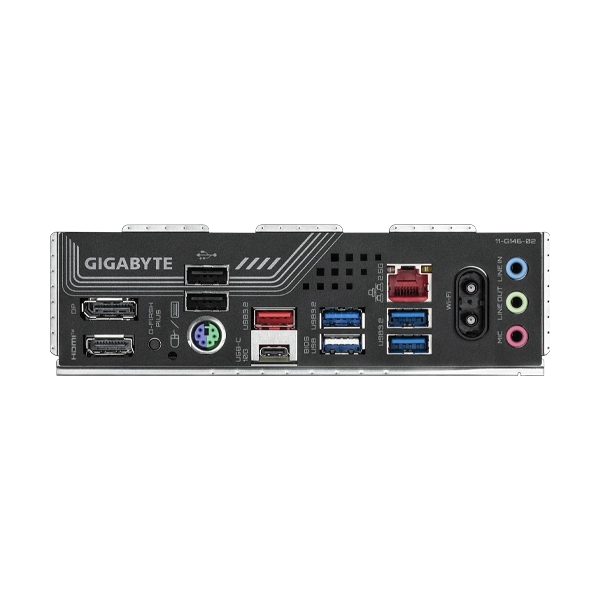

| Back Panel I/O |
|
| USB |
1x USB-C (USB 3.1/3.2 Gen 2) 1x USB-A (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 3x USB-A (USB 2.0) |
| Thunderbolt |
No |
| Display |
1x DisplayPort Output 1x HDMI Output |
| Audio |
3x 1/8″ / 3.5 mm |
| Ethernet / Controller |
1x Gigabit |
| PS/2 |
1x Combo |
| Wi-Fi Antenna |
1x Connector |
| Buttons |
BIOS Flashback |
| Memory |
|
| Memory Slots |
4x 288-Pin |
| Memory Support |
DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200 MT/s |
| Maximum Capacity |
256 GB |
| Channel Architecture |
Dual Channel |
| ECC Support |
Non-ECC Unbuffered |
| Storage Expansion |
|
| SATA |
4x SATA III |
| Storage Slots |
1x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 2x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2) |
| RAID Support |
RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 10 (SATA) |
| Internal I/O |
|
| Expansion Slots |
1x PCIe 5.0 x16 2x PCIe 3.0 x1 |
| USB |
1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 4 USB-A Port) |
| Air Cooling |
1x 4-Pin CPU 3x 4-Pin System |
| Liquid Cooling |
1x 4-Pin Pump |
| Power Connectors |
1x 24-Pin Mainboard 1x 8-Pin CPU 1x 4-Pin CPU |
| Security |
TPM Header |
| LED Header |
4x RGB |
| Diagnostics |
Clear CMOS, Power, Reset |
| BIOS |
|
| ROM |
256 Mb |
| Audio |
|
| Audio Codec |
Realtek (7.1-Channel) |
| DAC |
No |
| Wireless |
|
| Wi-Fi |
Wi-Fi 6E (802.11ax) with MU-MIMO Support |
| Bluetooth |
5.3 |
| Software |
|
| OS Compatibility |
Windows 10 to 11 (64-Bit Only) |
| Physical |
|
| Form Factor |
ATX |
| Dimensions |
12.0 x 9.6″ / 30.5 x 24.4Â cm |
| Warranty |
3 Years |
| Note |
*Features, Price and Specifications are subject to change without notice. |
