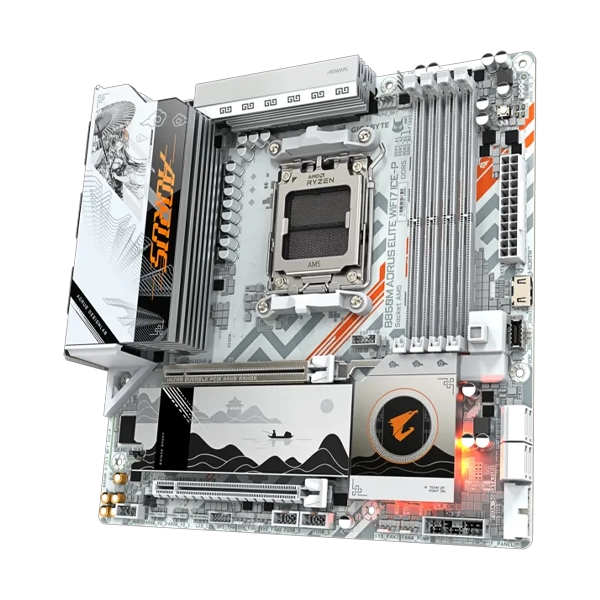

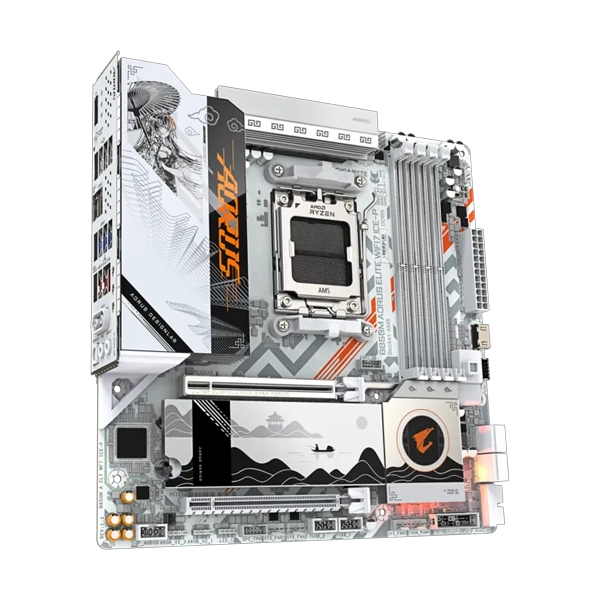

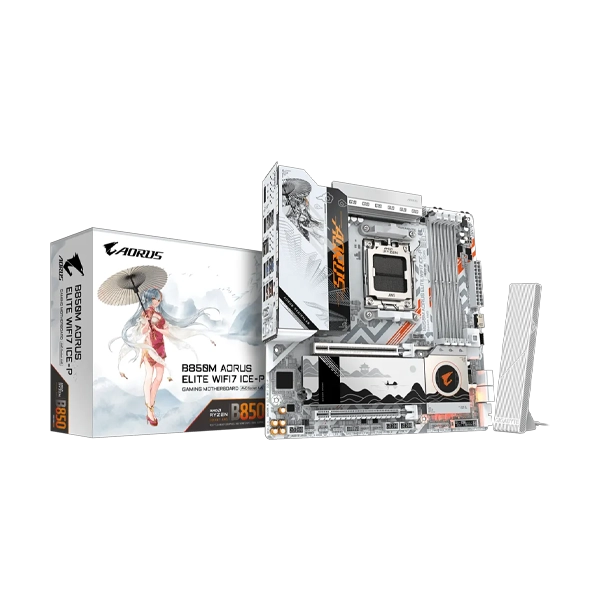

Gigabyte B850M Aorus Elite WiFi7 ICE-P Motherboard
FEATURES
The Gigabyte B850M AORUS ELITE WIFI7 ICE-P is a micro ATX motherboard designed for AMD AM5 socket platforms, emphasizing gaming performance, overclocking, and user-friendly DIY features. Below is a categorized overview of its specifications and features, compiled from official sources.
CPU and Platform Support
- Socket: AMD Socket AM5
- Supported Processors: AMD Ryzen™ 9000, 8000, and 7000 Series Processors
Chipset and Form Factor
- Chipset: AMD B850
- Form Factor: Micro ATX
Memory
- Type: Dual Channel DDR5
- Slots: 4 × DIMM slots
- Capacity: Up to 256 GB
- Speeds: Supports DDR5-4400 (native) up to DDR5-8200 (OC)
- Features: AMD EXPO™ Memory Module Support for easy overclocking
Power Design (VRM)
- Phases: Digital twin 12+2+2 phases VRM solution for stable power delivery and enhanced overclocking
Expansion Slots
- PCIe: Supports PCIe 5.0 (details depend on CPU; includes EZ-Latch Plus for quick release and screwless design on PCIe and M.2 slots)
Storage
- M.2 Slots:
- 2 × 2580/25110 M-key slots
- 2 × 2280/22110 M-key slots
- Features: EZ-Latch Click for screwless M.2 heatsink installation; supports high-speed PCIe storage
Networking
- LAN: 1 × 2.5 GbE (Realtek)
- Wireless: Wi-Fi 7
- Antenna Design: WIFI EZ-Plug for quick and easy Wi-Fi antenna installation
Audio and Video
- Audio: Not explicitly detailed in available specs (standard AORUS audio codec expected)
- Video Outputs: HDMI (version not specified; supports onboard graphics from compatible CPUs)
- Additional: Sensor Panel Link – Onboard video port for hassle-free in-chassis sensor panel setup
I/O Ports (Rear)
- USB: Includes USB-C; exact count and speeds not fully detailed (standard B850M configuration: multiple USB 3.2 Gen 2 and Gen 1 ports)
- LAN Port: 1 × 2.5 GbE
- Wireless: Wi-Fi 7 module
Internal I/O
- Fan Headers: Supports AIO Fan Control in BIOS/SW
- Other: Standard headers for front-panel USB, audio, and RGB (DIY-friendly design)
BIOS and Software
- BIOS Features:
- Q-Flash Auto Scan for easy BIOS updates
- Multi-Theme UI
- AIO Fan Control
- Unique Software:
- X3D Turbo Mode: Optimizes performance for AMD X3D processors in gaming
- AORUS and HWiNFO co-branded OSD: Displays system metrics (text/graphs) in games without additional software
- Friendly UI: Enhanced BIOS and software interface for ease of use
Thermal and Durability
- Cooling: Advanced thermal design with M.2 heatsinks and VRM cooling
- Build Quality: Ultra Durable™ components for longevity; 5-year warranty (based on similar AORUS models)
Aesthetics and DIY Features
- Color Scheme: White / Orange (ICE theme for a clean, modern look)
- DIY Enhancements:
- EZ-Latch Plus and EZ-Latch Click for tool-free installation
- Overall focus on user-friendly assembly and maintenance
This motherboard is ideal for mid-range gaming builds with future-proof connectivity like Wi-Fi 7 and PCIe 5.0 support. For the most up-to-date details, check the official Gigabyte site.
SPECIFICATIONS
| Brand | Gigabyte |
| Model | B850M Aorus Elite WiFi7 ICE-P |
| Color | White |
| CPU | AMD Socket AM5, supports AMD Ryzen™ 9000/8000/7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM), Dual channel, supports DDR5 8200(O.C.)/8000(O.C.)/7950(O.C.)/7900(O.C.)/7800(O.C.)/7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600(O.C.)/5200/4800 MT/s, non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16, AMD EXPO™ & XMP support |
| Onboard Graphics | Integrated AMD Radeon™ Graphics: 1 x DisplayPort (3840×2160@144 Hz, DP 1.4, HDR), 1 x front HDMI (1920×1080@30 Hz, HDMI 1.4). Varies by CPU. |
| Audio | Realtek® ALC1220 CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out, back panel line out supports DSD audio |
| LAN | Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication | Realtek® Wi-Fi 7 RTL8922AE, 802.11a/b/g/n/ac/ax/be (2.4/5/6 GHz), Bluetooth 5.4, 11be 160MHz. Requires Windows 11 SV3; 6 GHz depends on country regulations. |
| Expansion Slots | CPU: 1 x PCIe x16 (PCIEX16, PCIe 5.0 x16 for Ryzen 9000/7000, PCIe 4.0 x8 for Ryzen 8000-Phoenix 1, PCIe 4.0 x4 for Ryzen 8000-Phoenix 2). Chipset: 1 x PCIe x16 (PCIEX4, PCIe 3.0 x4). PCIEX16 supports graphics card or NVMe SSD. |
| Storage Interface | CPU: 1 x M.2 (M2A_CPU, type 25110/22110/2580/2280, PCIe 5.0 x4/x2 for Ryzen 9000/7000, PCIe 4.0 x4/x2 for Ryzen 8000), 1 x M.2 (M2B_CPU, type 22110/2280, PCIe 4.0 x4/x2 for Ryzen 9000/7000/8000-Phoenix 1, PCIe 4.0 x2 for Ryzen 8000-Phoenix 2). Chipset: 4 x SATA 6Gb/s. RAID 0/1/5/10 for NVMe SSDs (RAID 5 only on Ryzen 9000), RAID 0/1/10 for SATA. |
| USB | CPU: 1 x USB-C (3.2 Gen 2, back), 2 x USB 3.2 Gen 2 Type-A (back). CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 (back). Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 (back). Chipset: 1 x USB-C (3.2 Gen 2×2, internal), 3 x USB 3.2 Gen 1 (1 back, 2 internal), 4 x USB 2.0/1.1 (internal). |
| Internal I/O Connectors | 1 x 24-pin ATX power, 1 x 8-pin ATX 12V power, 1 x CPU fan, 1 x CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump, 3 x addressable RGB Gen2 LED strip, 1 x RGB LED strip, 2 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB-C (3.2 Gen 2×2), 1 x USB 3.2 Gen 1, 2 x USB 2.0/1.1, 1 x TPM, 1 x HDMI, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper |
| Back Panel Connectors | 1 x DisplayPort, 1 x Q-Flash Plus button, 4 x USB 2.0/1.1, 5 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2 Type-A, 1 x USB-C (3.2 Gen 2), 1 x RJ-45, 2 x antenna (2T2R), 2 x audio jacks, 1 x optical S/PDIF Out |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control (depends on fan/pump) |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software | Norton® Internet Security (OEM version) |
| Operating System | Windows 11 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
| Warranty | 3 Years |
| Note | **Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
