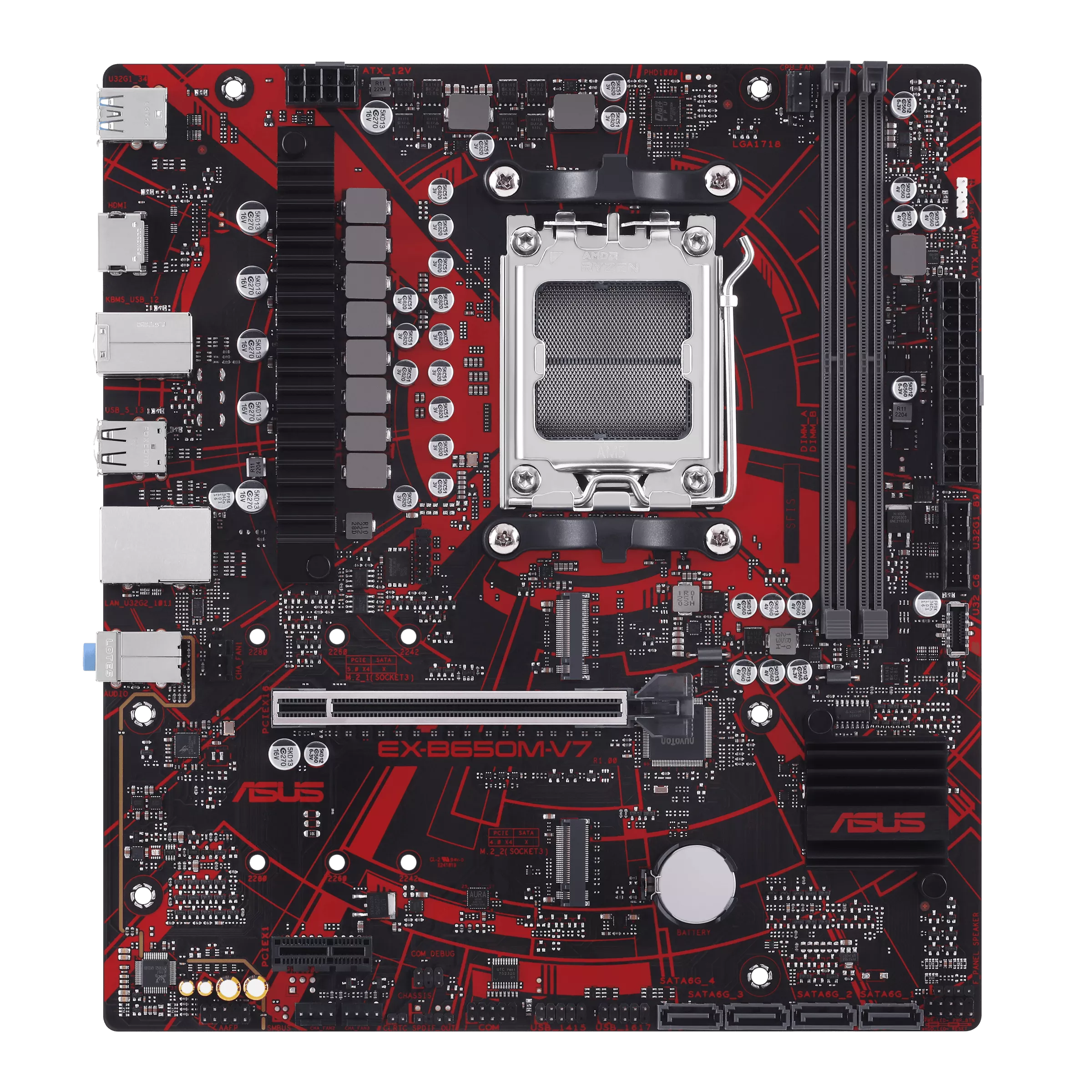

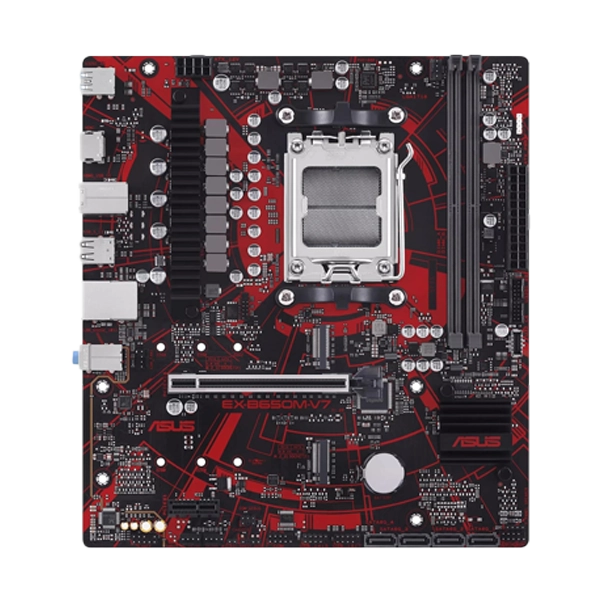

ASUS EX-B650M-V7 AMD Motherboard
FEATURES
-AT AMD B650 microX motherboard with DDR5, PCIe 5.0 M.2 support, Realtek 2.5Gb Ethernet, HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C luminous anti-moisture coating and Lightning Boot
- Non-stop action: The best choice for iCafé, configure-to-order gaming systems and quality-driven businesses
- Non-stop durability: Unbeatable features including luminous anti-moisture coating, LANGuard, SafeSlot Core+, USBGuard, Stainless-steel back I/O and 5X Protection III
- Non-stop gaming: DDR5, PCIe 4.0, 128Gbps M.2 slot, Realtek 2.5 Gb Ethernet, ASUS Beyond VR ready and Epic audio
- Non-stop challenger: ASUS iCafé LAB-certified reboot and compatibility tested for diskless-system use, plus use with top games, 100+ peripherals, 1000+ CPUs, memory modules, graphics cards and more
SPECIFICATIONS
| Model | EX-B650M-V7 |
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series/ 8000 Series Desktop Processors |
| Chipset | AMD B650 Chipset |
| Memory | 2 x DIMM slots, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO) | |
| OptiMem II | |
| Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, | |
| Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | 1 x HDMI port |
| Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| Supports 4K@60Hz as specified in HDMI 2.1. | |
| Expansion Slots | AMD Ryzen 7000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | |
| AMD Ryzen 8000 Series Desktop Processors | |
| 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) | |
| AMD B650 Chipset | |
| 1 x PCIe 4.0 x1 slot | |
| Specifications vary by CPU types. | |
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports |
| AMD Ryzen 7000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| AMD Ryzen 8000 Series Desktop Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) | |
| AMD B650 Chipset | |
| 4 x SATA 6Gb/s ports | |
| AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Specifications vary by CPU types. | |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| USB | Rear USB (Total 8 ports) |
| 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) | |
| 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) |
| 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x HDMI™ port | |
| 1 x Realtek 2.5Gb Ethernet port | |
| 3 x Audio jacks | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 3 x 4-pin Chassis Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin +12V Power connector | |
| Storage related | |
| 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) | |
| 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x 10-1 pin System Panel header | |
| Special Features | ASUS 5X PROTECTION III |
| DIGI+ VRM | |
| LANGuard | |
| Overvoltage Protection | |
| SafeSlot Core+ | |
| Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| Q-DIMM | |
| Q-LED Core | |
| Q-Slot | |
| ASUS Thermal Solution | |
| VRM heatsink design | |
| Non-stop Action | |
| Lightning Boot | |
| Non-stop Challenger | |
| ASUS iCafe labs certified | |
| Non-stop Durability | |
| Luminous anti-moisture coating | |
| USBGuard | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x I/O Shield | |
| 2 x M.2 Anchors | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows 11, Windows 10 64-bit |
| Form Factor | micro-ATX Form Factor |
| 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) | |
| Warranty | 3 Years |
| Note | *** Image use for reference only |
| *** Features, Price, Specifications are subject to change without notice. |
