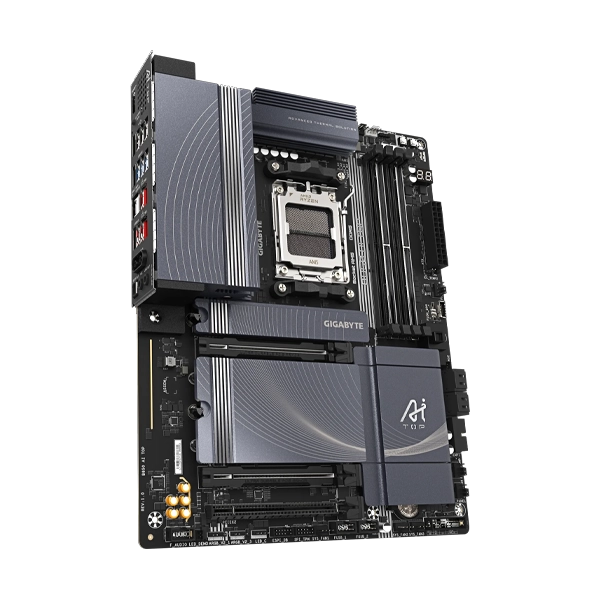

Gigabyte B850 AI Top DDR5 Motherboard

Name: Gigabyte B850 AI Top DDR5 Motherboard - The IT Gear
SKU: B850 AI TOP
Price: 42999.00 INR
Availability: OutOfStock

SKU: B850 AI TOP

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹60,999.00.Current price is: ₹42,999.00.

Out of stock

Click here for Any Query

Out of stock

Add to compare

Payment Methods:

68 People watching this product now!

Similar Products

NZXT N7 Z490 Atx Intel Chipset Motherboard Wi-Fi White

NZXT N7 Z490 ATX Wi-Fi DDR4 Intel Chipset Motherboard – White

Rated 0 out of 5

NZXT

Gigabyte B850 AI Top DDR5 Motherboard

FEATURES

Training your own AI on your desk.
DDR5 OC up to 8600MT/s.
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors.
Digital twin 16+2+2 phases VRM solution.
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support.
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
EZ-Latch Click : M.2 heatsinks with screwless design.
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW..
New Power Monitor in HWinfo for real-time monitoring on CPU power phases.
Ultra-Fast Storage : 3*M.2 slots, including 2*PCIe 5.0 x4.
Efficient Thermal : VRM Thermal Armor Advanced with M.2 Thermal Guard.
Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna.
Extended Connectivity : Rear USB-C® support up to 40Gb/s, Front USB-C® 20Gb/s, HDMI.
High-Res Audio : ALC1220 and High-End Audio Capacitor.
Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card.

SPECIFICATIONS

Brand	Gigabyte
Model	B850 AI TOP
Colour	Black
Chipset	AMD B850
CPU Socket	AM5
Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
Storage Slots	2x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
Expansion Slots	1x PCIe 5.0 x16 2x PCIe 4.0 x2
Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Form Factor	ATX
CPU
Chipset	AMD B850
CPU Socket	AM5

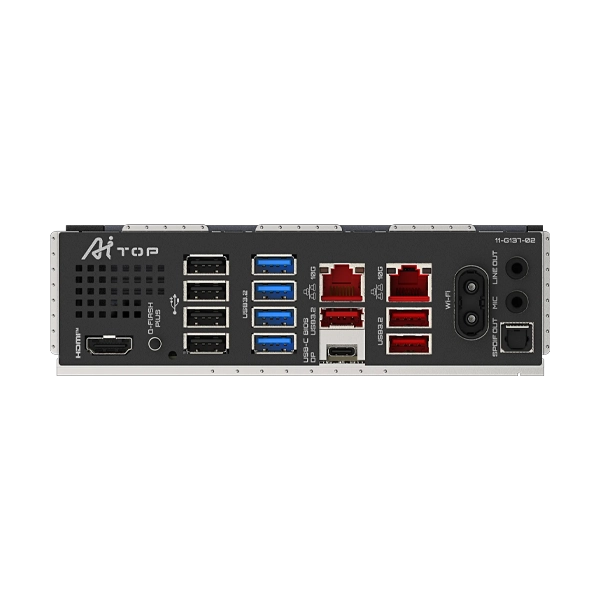

Back Panel I/O
USB	1x USB-C (USB 3.1/3.2 Gen 2) 3x USB-A (USB 3.1/3.2 Gen 2) 4x USB-A (USB 2.0)
Thunderbolt	No
Display	1x HDMI Output
Audio	2x 1/8″ / 3.5 mm 1x S/PDIF
Ethernet / Controller	2x 10GbE
Wi-Fi Antenna	1x Connector
Buttons	BIOS Flashback
Memory
Memory Slots	4x 288-Pin
Memory Support	DDR5 4400, 4800, 5200, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200, 7400, 7600, 7800, 7900, 7950, 8000, 8200, 8266, 8400, 8600 MT/s
Maximum Capacity	256 GB
Channel Architecture	Dual Channel
ECC Support	Non-ECC Unbuffered
Storage Expansion
SATA	4x SATA III
Storage Slots	2x M.2 (M Key) 2280 (PCIe 5.0 x4, PCIe 5.0 x2) 1x M.2 (M Key) 2280 (PCIe 4.0 x4, PCIe 4.0 x2)
RAID Support	RAID 0, 1, 5, 10 (M.2) RAID 0, 1, 10 (SATA)
Internal I/O
Expansion Slots	1x PCIe 5.0 x16 2x PCIe 4.0 x2
USB	1x USB 3.2 Gen 2×2 Header (Supports 1 USB-C Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 1x USB 2.0 Header (Supports 4 USB-A Port)
Air Cooling	1x 4-Pin CPU 4x 4-Pin System
Liquid Cooling	2x 4-Pin Pump
Power Connectors	1x 24-Pin Mainboard 2x 8-Pin ATX
Security	TPM Header
LED Header	4x RGB
Diagnostics	Clear CMOS, Power, Reset
BIOS
ROM	256 Mb
Audio
Audio Codec	Realtek ALC1220 (7.1-Channel)
DAC	No
Wireless
Wi-Fi	Wi-Fi 7 (802.11be) with MU-MIMO Support
Bluetooth	5.4
Software
OS Compatibility	Windows 11 (64-Bit Only)
Physical
Form Factor	ATX
Dimensions	12.0 x 9.6″ / 30.5 x 24.4 cm
Warranty	3 Years
Note	*Features, Price and Specifications are subject to change without notice.
