Supports AMD Ryzen 9000, 8000 and 7000 Series Processors
14+2+1 Phase Power Design, SPS
4 x DDR5 DIMMs, supports up to 7200+(OC)
1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio<//p>
1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3
1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
| Brand | ASRock |
| Model | B650 PRO RS |
| Color | Black & Whitez |
|
Unique Feature |
Superb Productivity – |
| PCIe Gen5 (M.2) – | |
| Dual Channel DDR5 | |
| Rock-Solid Durability – | |
| 14+2+1 Power Phase, 60A SPS with Enlarged Heatsink Armor | |
| Flexible Integrated I/O Shield | |
| Ultrafast Connectivity | |
| 2.5G LAN EZ Update | |
| BIOS Flashback Button | |
| ASRock Auto Driver Installer EZ Troubleshooter | |
| ASRock Post Status Checker | |
| CPU | Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | – AMD B650 |
| Memory | Dual Channel DDR5 Memory Technology – |
| 4 x DDR5 DIMM Slots – | |
| Supports DDR5 non-ECC, un-buffered memory up to 6200+(OC)* – Max. | |
| capacity of system memory: 128GB* – | |
| Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics | Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) |
| 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz, | |
| 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Nahimic Audio | |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Dragon RTL8125BG Supports Dragon 2.5G LAN Software | |
| Smart Auto Adjust Bandwidth Control | |
| Visual User Friendly UI | |
| Visual Network Usage Statistics | |
| Optimized Default Setting for Game, Browser, and Streaming Modes | |
| User Customized Priority Control | |
| Slots | CPU: – |
| 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode, | |
| 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode | |
| Chipset: | |
| 1 x PCIe 4.0 x1 Slots (PCIE2) | |
| 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Supports AMD CrossFire | |
| 15μ Gold Contact in VGA PCIe Slot (PCIE1) | |
| Storage | CPU: – |
| 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode | |
| Chipset: – | |
| 1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes, | |
| 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode, | |
| 2 x SATA3 6.0 Gb/s Connectors,2 x SATA3 6.0 Gb/s Connectors- | |
| RAID | Supports RAID 0, RAID 1 for SATA storage devices |
| Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices | |
| USB | 1 x USB 3.2 Gen2x2 Type-C (Rear) |
| 1 x USB 3.2 Gen2 Type-C (Front) | |
| 4 x USB 3.2 Gen1 (2 Rear, 2 Front) | |
| 9 x USB 2.0 (6 Rear, 3 Front) | |
| 1 x USB 3.2 Gen2 Type-A (Rear) | |
| Connector | 1 x SPI TPM Header |
| 1 x Power LED and Speaker Header | |
| 1 x RGB LED Header | |
| 3 x Addressable LED Headers | |
| 1 x CPU Fan Connector (4-pin) | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connectors | |
| 1 x 4 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports | |
| 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) | |
| 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver) | |

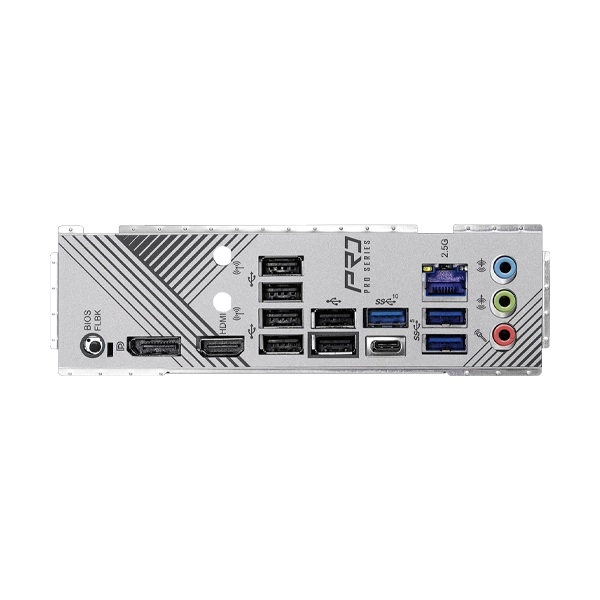

| Rear Panel I/O | 2 x Antenna Mounting Points |
| 1 x HDMI Port | |
| 1 x DisplayPort 1.4 | |
| 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) | |
| 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) | |
| 2 x USB 3.2 Gen1 Ports | |
| 6 x USB 2.0 Ports | |
| 1 x RJ-45 LAN Port | |
| 1 x BIOS Flashback Button | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Software and UEFI | Software – |
| ASRock Motherboard UtilityA-Tuning) | |
| ASRock Polychrome SYNC | |
| ASRock Dragon 2.5G LAN Software | |
| UEFI – | |
| ASRock Auto Driver Installer | |
| ASRock Instant Flash | |
| ASRock Full HD UEFI | |
| Accessories | 1 x User Manual |
| 2 x SATA Data Cables | |
| 3 x Screws for M.2 Sockets | |
| Form Factor | ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm |
| 8 Layer PCB | |
| OS | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications | FCC, CE |
| ErP/EuP ready (ErP/EuP ready power supply is required) | |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
