| Brand |
Gigabyte |
| Model |

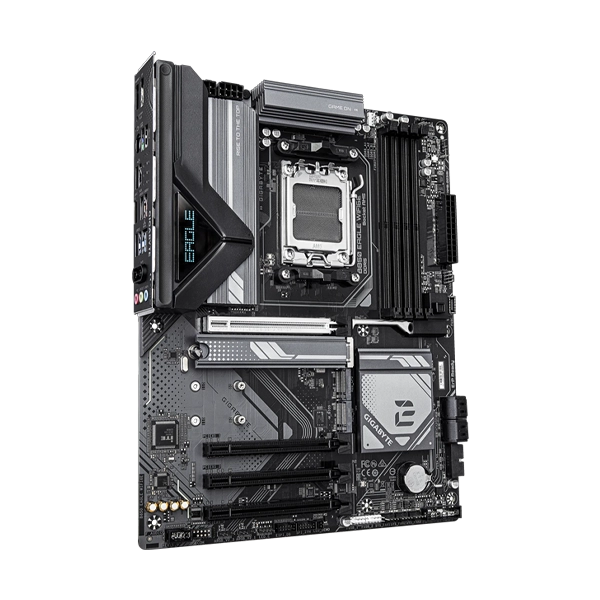

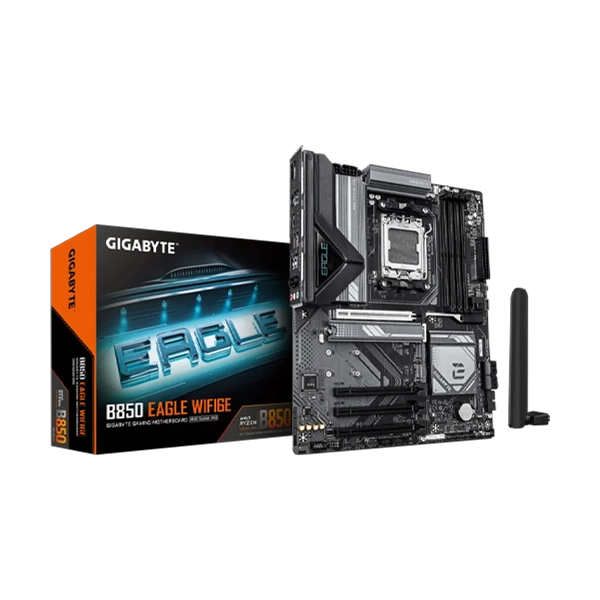

 B850 EAGLE WIFI6E |
| Colour |
Black |
| CPU Socket |
AMD Socket AM5 |
| Supported Processors |
AMD Ryzenâ„¢ 9000 / 8000 / 7000 Series |
| Chipset |
AMD B850 |
| Memory Support |
DDR5 up to 8200(O.C) MT/s, 4 DIMM slots, 256GB max, Dual channel, AMD EXPOâ„¢ & XMP support |
| Onboard Graphics |
AMD Radeonâ„¢ Graphics (depends on CPU) |
| Display Outputs |
1 x DisplayPort (3840×2160@144Hz, DP 1.4, HDR) 1 x HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3, HDR) |
| Audio |
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| LAN |
Realtek® GbE LAN (1 Gbps) |
| Wireless |
Intel® Wi-Fi 6E AX210 / Realtek® Wi-Fi 6E RTL8852CE (Bluetooth 5.3, 11ax 160MHz support) |
| Expansion Slots |
1 x PCIe 5.0 x16 (Ryzen 9000/7000) 3 x PCIe 3.0 x1 (chipset) |
| Storage |
3 x M.2 Slots (PCIe 5.0/4.0 depending on CPU) 4 x SATA 6Gb/s, RAID 0/1/5/10 support |
| USB Ports |
Back Panel:Â 1 x USB-C 3.2 Gen 1, 2 x USB 3.2 Gen 2, 2 x USB 3.2 Gen 1, 4 x USB 2.0Â Internal:Â 1 x USB-C 3.2 Gen 1, 4 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal Connectors |
24-pin ATX, 8-pin & 4-pin ATX 12V, 3 x M.2, 4 x SATA, RGB headers, fan headers, TPM header, Clear CMOS |
| Back Panel Ports |
1 x DP, 1 x HDMI, 4 x USB 2.0, 2 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 1, 1 x RJ-45, 2 x USB 3.2 Gen 1, 2 x antenna connectors, 3 x audio jacks |
| BIOS |
256 Mbit flash, AMI UEFI BIOS |
| Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
| Bundled Software |
Norton® Internet Security (OEM), LAN bandwidth management software |
| Operating System |
Windows 11 64-bit, Windows 10 64-bit |
| Form Factor |
ATX (30.5cm x 24.4cm) |
| Warranty |
3 Years |
| Note |
*Features, Price and Specifications are subject to change without notice. |
