| Brand |
Gigabyte |
| Model |
B850M GAMING X WIFI6E |
| Color |
Black |
| CPU |
AMD Socket AM5, support for: |
| |
AMD Ryzenâ„¢ 9000 Series Processors/ |
| |
AMD Ryzenâ„¢ 8000 Series Processors/ |
| |
AMD Ryzenâ„¢ 7000 Series Processors |
| |
(Go to GIGABYTE’s website for the latest CPU support list.) |
| Chipset |
AMD B850 |
| Memory |
Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. |
| |
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory |
| |
Dual channel memory architecture |
| |
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| |
Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules |
| |
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” on GIGABYTE’s website for more information.) |
| Onboard Graphics |
Integrated Graphics Processor with AMD Radeonâ„¢ Graphics support: |
| |
– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz |
| |
* Support for HDMI 2.1 version and HDCP 2.3, and HDR. |
| |
** Support for native HDMI 2.1 TMDS compatible ports. |
| |
– 2 x DisplayPorts, supporting a maximum resolution of 3840×2160@144 Hz |
| |
* Support for DisplayPort 1.4 version. |
| |
(Graphics specifications may vary depending on CPU support.) |
| |
Support for up to triple-display at the same time |
| Audio |
Realtek® Audio CODEC |
| |
High Definition Audio |
| |
2/4/5.1/7.1-channel |
| |
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module |
Realtek® Wi-Fi 6E RTL8852CE |
| |
– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
| |
– BLUETOOTH 5.3 |
| |
– Support for 11ax 160MHz wireless standard |
| |
(Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots |
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: |
| |
AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 5.0 x16 mode |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
| |
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
| |
Chipset: |
| |
– 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
| Storage Interface |
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
| |
AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs |
| |
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: |
| |
AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs |
| |
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs |
| |
4 x SATA 6Gb/s connectors |
| |
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
| |
* RAID 5 is only available on AMD Ryzenâ„¢ 9000 Series Processors. |
| |
RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB |
CPU: |
| |
– 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
| |
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel |
| |
CPU+USB 2.0 Hub: |
| |
– 4 x USB 2.0/1.1 ports on the back panel |
| |
Chipset: |
| |
– 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header |
| |
– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
| |
– 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Internal I/O Connectors |
1 x 24-pin ATX main power connector |
| |
1 x 8-pin ATX 12V power connector |
| |
1 x CPU fan header |
| |
1 x CPU fan/water cooling pump header |
| |
1 x system fan header |
| |
1 x system fan/water cooling pump header |
| |
3 x addressable RGB Gen2 LED strip headers |
| |
1 x RGB LED strip header |
| |
4 x SATA 6Gb/s connectors |
| |
2 x M.2 Socket 3 connectors |
| |
1 x front panel header |
| |
1 x front panel audio header |
| |
1 x USB Type-C® header, with USB 3.2 Gen 2 support |
| |
1 x USB 3.2 Gen 1 header |
| |
2 x USB 2.0/1.1 headers |
| |
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| |
1 x reset button |
| |
1 x reset jumper |
| |
1 x Clear CMOS jumper |

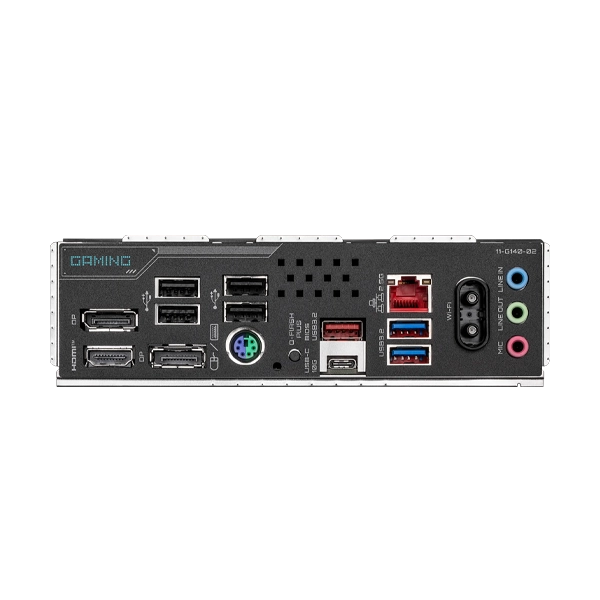

| Back Panel Connectors |
1 x HDMI port (Note) |
| |
2 x DisplayPorts (Note) |
| |
1 x Q-Flash Plus button |
| |
1 x PS/2 keyboard/mouse port |
| |
1 x USB 3.2 Gen 2 Type-A ports (red) |
| |
1 x USB Type-C® port, with USB 3.2 Gen 2 support |
| |
2 x USB 3.2 Gen 1 ports |
| |
4 x USB 2.0/1.1 ports |
| |
1 x RJ-45 port |
| |
2 x antenna connectors (2T2R) |
| |
3 x audio jacks |
| |
(Note) Actual support may vary by CPU |
| I/O Controller |
iTE®I/O Controller Chip |
| H/W Monitoring |
Voltage detection |
| |
Temperature detection |
| |
Fan speed detection |
| |
Water cooling flow rate detection |
| |
Fan fail warning |
| |
Fan speed control |
| |
* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install. |
| BIOS |
1 x 256 Mbit flash |
| |
Use of licensed AMI UEFI BIOS |
| |
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features |
Support for GIGABYTE Control Center (GCC) |
| |
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
| |
Support for Q-Flash |
| |
Support for Q-Flash Plus |
| |
Support for Smart Backup |
| Bundled Software |
Norton® Internet Security (OEM version) |
| |
LAN bandwidth management software |
| Operating System |
Support for Windows 11 64-bit |
| |
Support for Windows 10 64-bit |
| Form Factor |
Micro ATX Form Factor; 24.4cm x 24.4cm |
| Warranty: |
3 Years |
| Note: |
**Features, Price, Specifications are subject to change without notice. Images used for representation purposes only. |
