Supports 13th and 12th Gen Intel Core™ Series Processors.
VisionLINK : One USB-C Port for Video, Data Transfer and Charging.
Dual Channel DDR5 : 4xSMD DIMMs with XMP Memory Module Support.
Next Generation Storage : 1xPCIe 5.0 x4 and 4xPCIe 4.0 x4 M.2 Connectors.
Advanced Thermal Design & M.2 Thermal Guard III : To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance.
EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design.
Fast Networks : Intel 2.5GbE LAN & Wi-Fi 6E 802.11ax.
Extended Connectivity : DP IN, HDMI, Front USB-C 20Gb/s Support.
Smart Fan 6 : Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection.
Q-Flash Plus : Update BIOS Without Installing the CPU, Memory and Graphics Card.
|
Brand |
Gigabyte |
|
Model |
Z790 Aero G |
|
Color |
White |
|
CPU |
LGA1700 socket: Support for the 13th and 12th Generation Intel Core™, Pentium Gold and Celeron Processors |
|
|
L3 cache varies with CPU |
|
|
|
|
Chipset |
Intel Z790 Express Chipset |
|
Memory |
Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules |
|
|
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory |
|
|
Dual channel memory architecture |
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
|
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
|
|
|
|
|
1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz |
|
|
Support for drawing tablets and 20V@3A of power delivery. |
|
|
Support for DisplayPort 1.4 version and HDR. |
|
|
|
|
|
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
|
Support for HDMI 2.0 version and HDCP 2.3. |
|
|
|
|
Audio |
Realtek® ALC1220-VB CODEC |
|
|
|
|
|
The back panel line out jack supports DSD audio. |
|
|
High Definition Audio |
|
|
2/4/5.1/7.1-channel |
|
|
|
|
|
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
|
Support for S/PDIF Out |
|
|
|
|
LAN |
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Wireless Communication module |
Intel® Wi-Fi 6E AX211 |
|
|
|
|
|
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands |
|
|
BLUETOOTH 5.3 |
|
|
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
|
|
|
Expansion Slots |
CPU: |
|
|
|
|
|
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) |
|
|
The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector |
|
|
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
|
|
|
|
Chipset: |
|
|
|
|
|
1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1) |
|
|
1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2) |
|
|
|
|
Storage Interface |
CPU: |
|
|
|
|
|
1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) |
|
|
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
|
|
|
|
Chipset: |
|
|
|
|
|
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) |
|
|
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
|
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
|
4 x SATA 6Gb/s connectors |
|
|
|
|
USB |
Chipset: |
|
|
|
|
|
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) |
|
|
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support |
|
|
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel |
|
|
2 x USB 3.2 Gen 1 ports available through the internal USB header |
|
|
2 x USB 2.0/1.1 ports on the back panel |
|
|
|
|
|
Chipset+USB 3.2 Gen 1 Hub: |
|
|
|
|
|
4 x USB 3.2 Gen 1 ports on the back panel |
|
|
|
|
|
Chipset+USB 2.0 Hub: |
|
|
|
|
|
4 x USB 2.0/1.1 ports available through the internal USB headers |
|
|
|
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector |
|
|
1 x 8-pin ATX 12V power connector |
|
|
1 x 4-pin ATX 12V power connector |
|
|
1 x CPU fan header |
|
|
1 x water cooling CPU fan header |
|
|
4 x system fan headers |
|
|
2 x system fan/water cooling pump headers |
|
|
2 x addressable LED strip headers |
|
|
2 x RGB LED strip headers |
|
|
5 x M.2 Socket 3 connectors |
|
|
4 x SATA 6Gb/s connectors |
|
|
1 x front panel header |
|
|
1 x front panel audio header |
|
|
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support |
|
|
1 x USB 3.2 Gen 1 header |
|
|
2 x USB 2.0/1.1 headers |
|
|
1 x noise detection header |
|
|
2 x Thunderbolt™ add-in card connectors |
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
|
1 x serial port header |
|
|
1 x Q-Flash Plus button |
|
|
1 x reset button |
|
|
1 x reset jumper |
|
|
2 x temperature sensor headers |
|
|
1 x Clear CMOS jumper |
|
|
|
|

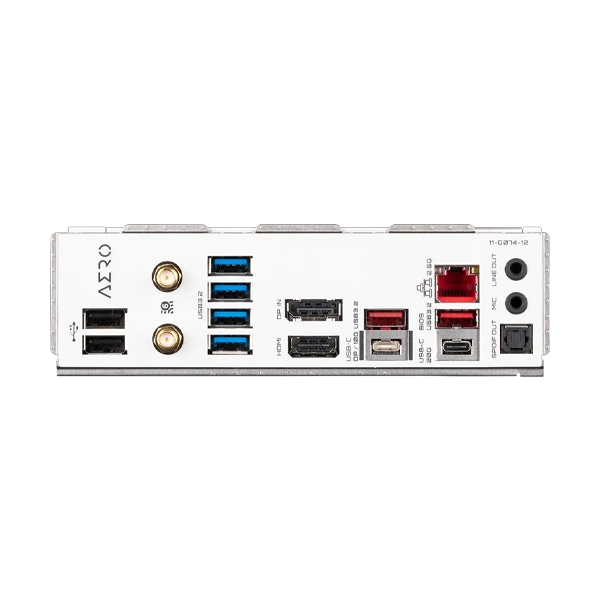

Back Panel Connectors |
2 x USB 2.0/1.1 ports |
|
|
2 x SMA antenna connectors (2T2R) |
|
|
4 x USB 3.2 Gen 1 ports |
|
|
1 x DisplayPort In port |
|
|
1 x HDMI 2.0 port |
|
|
2 x USB 3.2 Gen 2 Type-A ports (red) |
|
|
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support |
|
|
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support |
|
|
1 x RJ-45 port |
|
|
1 x optical S/PDIF Out connector |
|
|
2 x audio jacks |
|
|
|
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection |
|
|
Temperature detection |
|
|
Fan speed detection |
|
|
Water cooling flow rate detection |
|
|
Fan fail warning |
|
|
Fan speed control |
|
|
Noise detection |
|
|
|
|
BIOS |
1 x 256 Mbit flash |
|
|
Use of licensed AMI UEFI BIOS |
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
|
|
Unique Features |
Support for GIGABYTE Control Center (GCC) |
|
|
Support for Q-Flash |
|
|
Support for Q-Flash Plus |
|
|
Support for Smart Backup |
|
|
|
|
Bundled Software |
Norton® Internet Security (OEM version) |
|
|
LAN bandwidth management software |
|
|
|
|
Operating System |
Support for Windows 11 64-bit |
|
|
Support for Windows 10 64-bit |
|
|
|
|
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
|
Warranty |
3 Years |
|
Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
