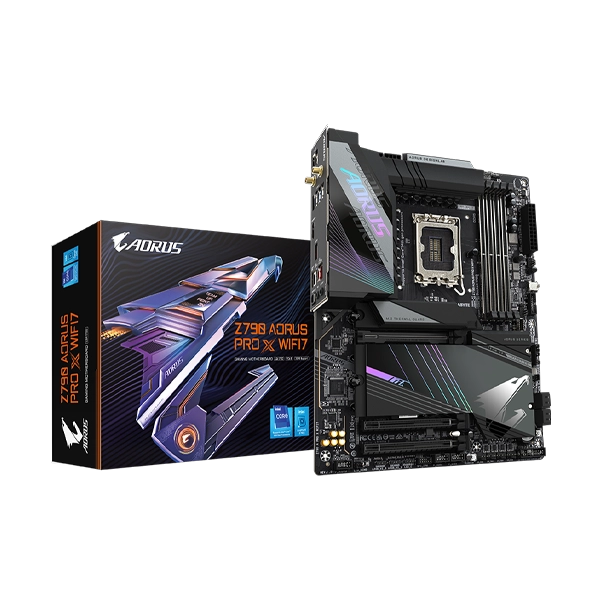

Gigabyte Z790 Aorus Pro X WiFi7 Motherboard
FEATURES
- Supports Intel® Core™ 14th and 13th processors.
- Digital twin 18+1+2 phases VRM solution.
- Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support.
- PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card.
- EZ-Latch Click: M.2 heatsinks with screwless design.
- EZ-Latch Plus: M.2 slots with quick release design.
- Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup.
- UC BIOS: User-Centred intuitive UX with Quick Access function.
- Ultra-Fast Storage: 5*M.2 slots, including 1* PCIe 5.0 x4.
- Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL.
- Fast Networking: 5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna.
- Extended Connectivity: HDMI, Front & Rear USB-C® 20Gb/s.
- High-Res Audio: ALC1220 & Audiophile Grade Capacitors.
SPECIFICATIONS
| Brand | Gigabyte |
| Model | Z790 AORUS PRO X WIFI7 |
| Colour | Black |
| CPU Socket Type | LGA1700 |
| CPU Type | Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| Chipsets | |
| Chipset | Intel Z790 Express Chipset |
| Memory | |
| Number of Memory Slots | 4 x DDR5 DIMM sockets |
| Memory Standard | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O. |
| Maximum Memory Supported | up to 192 GB |
| Channel Supported | Dual channel memory architecture |
| Expansion Slots | |
| PCI Slots | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1) 1 x PCI Express x16 slot, suppor |
| Storage Devices | |
| SATA 3Gb/s | 4 x SATA 6Gb/s connectors |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| Onboard Video | |
| Onboard Audio | |
| Audio Channels | 2/4/5.1/7.1-channel |
| Audio Chipset | Realtek ALC1220-VB codec |
| Onboard LAN | |
| LAN Chipset | Realtek® 5GbE LAN |
| Max LAN Speed | 5 Gbps/2.5 Gbps/1 Gbps/100 Mbps |
| Rear Panel Ports | |
| USB | 2 x USB 2.0/1.1 ports 4 x USB 3.2 Gen 1 ports 2 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support |
| Warranty | 3 Years |
| Note | *Features, Price and Specifications are subject to change without notice. |
