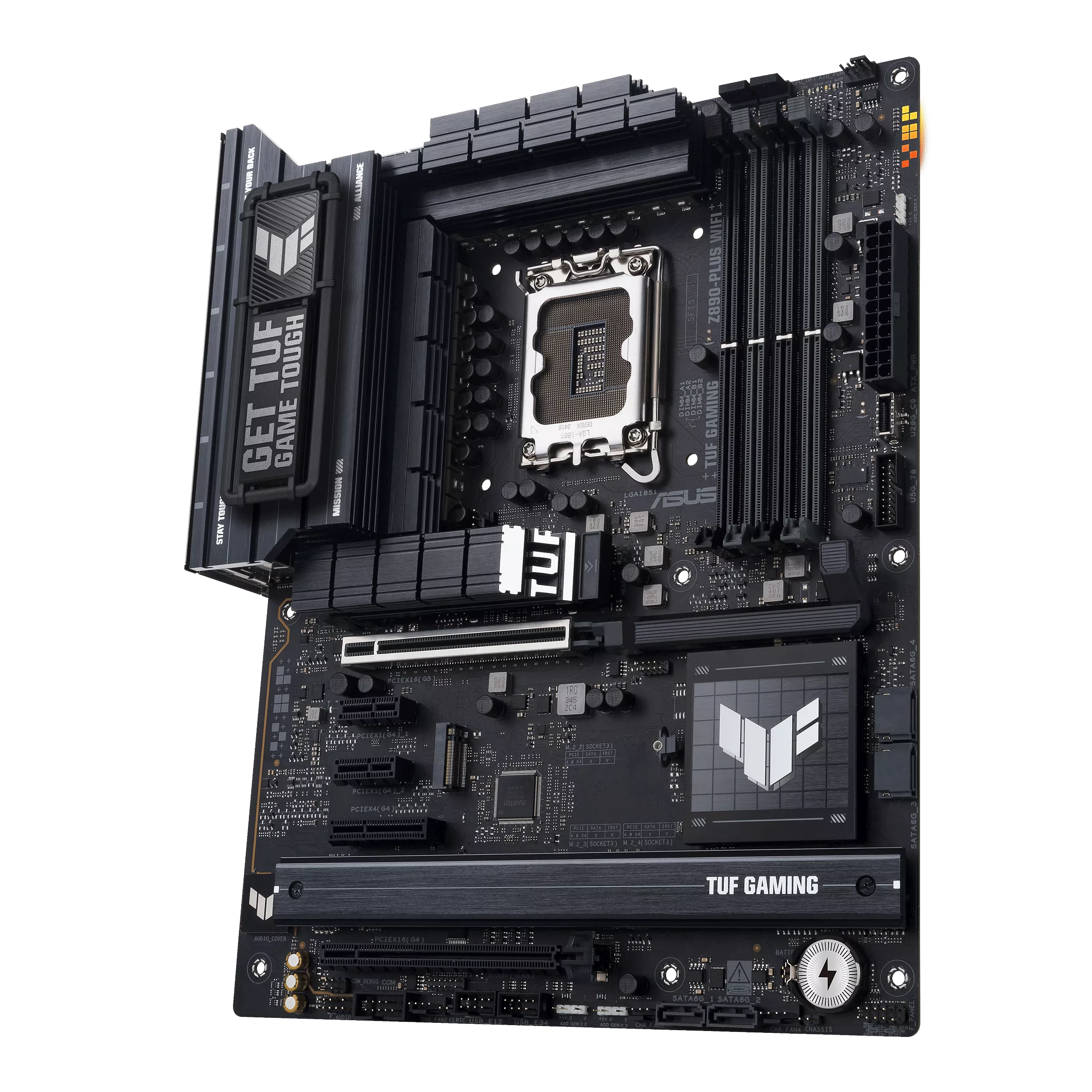

Asus TUF Gaming Z890-Plus WIFI Motherboard
FEATURES
ASUS TUF GAMING Z890-PLUS WIFI takes all the essential elements of the latest Intel® Core™ Ultra Processors (Series 2) processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Complete AI Solution
ASUS AI Solutions – including AI Advisor, AI Cooling II for thermal control and AI Networking II for real-time bandwidth optimization – offer smart assistance, efficient cooling and new levels of ultrafast connectivity.
Premium Power Design
Stable power is crucial for maximizing the performance of Intel processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 16(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel processors.
M.2 PCIe 5.0 Support
This motherboard also features one PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.
DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.
Cooler Compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.
Front USB 20Gbps Type-C®
This motherboard features a USB 20Gbps Type-C® front panel connector for speedy data transfers of up to 20Gbps.
SPECIFICATIONS
| Brand | ASUS |
| Model | ROG-STRIX-B860-A-GAMING-WIFI |
| Color | BLACK |
| Platform | INTEL |
| Socket | LGA1851 |
| Cpu Type | Core Ultra |
| Chipset | Z890 |
| Memory Speed | up to 9066+ |
| Max Memory Support | 256 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | DIMM Fit |
| Supports Intel® Extreme Memory Profile (XMP) memory module | |
| ASUS Enhanced Memory Profile III(AEMPIII) | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit Brand Website. | |
| ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| *** Adjustments will be made based on the specifications of mass-produced memory products available on the market. | |
| Graphics Port | 1 x DisplayPort,1 x HDMI,1 x Intel Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt video outputs |
| Expansion Slots | Intel® Core™ Ultra Processors(Series 2) |
| 1 x PCIe 5.0 x16 slot | |
| Intel® Z890 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode) | |
| 1 x PCIe 4.0 x4 slot | |
| 2 x PCIe 4.0 x1 slots | |
| Wireless Networking | WiFi 7,Bluetooth 5.4 |
| Back Panel I/O Ports | 1 x Thunderbolt™ 4 USB Type-C® port |
| 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) | |
| 3 x USB 10Gbps ports (3 x Type-A) | |
| 3 x USB 5Gbps ports (3 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMIâ„¢ port | |
| 1 x Wi-Fi module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 5 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBackâ„¢ button | |
| Internal I/O Connector | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| Storage Related | |
| 4 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 20Gbps connector (supports USB Type-C® ) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable RGB Gen 2 headers | |
| 1 x Clear CMOS header | |
| 1 x Chassis Intrusion header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x 10-1 pin Front System Panel header | |
| 1 x Thunderbolt™ (USB4®) header | |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice.Images use for Representation Purpose Only. |
