Customizable 2.1″ LCD Display
Integrated high-resolution (480×480) circular LCD screen on the pump for real-time CPU stats, animations, images, and system monitoring via MasterCTRL software.

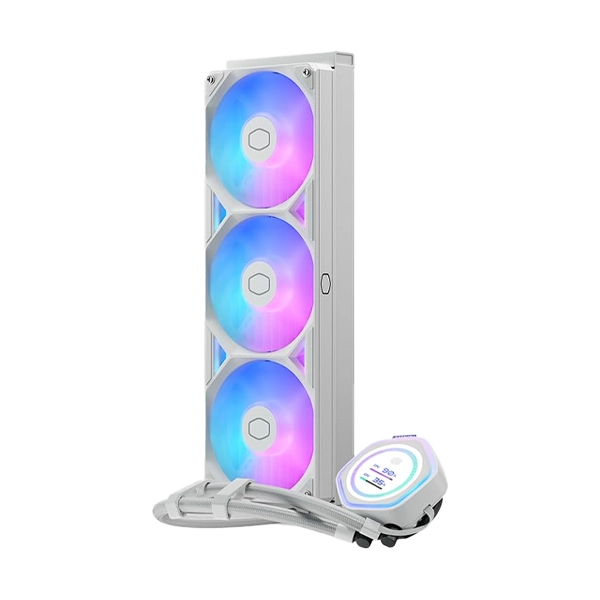

Powerful 360mm Radiator
Large aluminum radiator with extended surface area for superior heat dissipation, ideal for high-TDP gaming and workstation CPUs.
Triple SickleFlow Edge 120mm ARGB Fans
High-performance fans with optimized airflow and strong static pressure for efficient cooling through dense radiator fins.
Advanced Dual-Chamber Pump
Enhanced coolant flow design improves thermal transfer efficiency while maintaining stable, reliable operation.
Gen2 Addressable RGB Lighting
Fully customizable ARGB lighting on fans and pump, compatible with major motherboard RGB sync software (5V 3-pin).
Optimized Noise Control
Balanced acoustic design keeps noise levels controlled even at higher RPM ranges.
Broad CPU Socket Compatibility
Supports Intel LGA1851 / 1700 / 1200 / 115x and AMD AM5 / AM4 platforms.
Easy Installation Design
Tool-assisted mounting system with pre-applied thermal paste for quick and secure setup.
Premium White Finish
Clean white aesthetic perfect for themed or showcase PC builds.
Long Warranty Coverage
Backed by a 6-year manufacturer warranty for long-term reliability.
|
Brand |
Cooler Master |
|
Product Number |
MLX-D36M-A25SZ-LW |
|
Color |
White |
|
CPU Socket |
Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 |
|
CPU Socket |
AMD® AM5 / AM4 |
|
Radiator Material |
Aluminum |
|
Radiator Dimensions |
394 x 119.2 x 27 mm (15.5 x 4.7 x 1.1 inch) |
|
Pump Dimensions |
92.5 x 87 x 38.5 mm (3.6 x 3.4 x 1.5 inch) |
|
Pump Profiles |
Addressable Gen2 RGB |
|
Pump Speed |
3400 ± 300 RPM |
|
Pump MTTF |
>210,000 Hours |
|
Pump Noise Level |
25 dBA (Max) |
|
Pump Rated Voltage |
12 VDC |
|
Pump Power Consumption |
3.84W |
|
Pump Connector |
3-Pin ARGB + 4-Pin PWM |
|
Tube Length |
400 mm |
|
Fan Dimensions (LxWxH) |
361 x 122 x 26.5 mm (14.2 x 4.8 x 1 inch) |
|
Profile |
Addressable Gen 2 RGB |
|
Fan Quantity |
1 PC |
|
Fan Speed |
690 ~ 2500 RPM ± 15% |
|
Fan Airflow |
322.8 m³/h (190 CFM) |
|
Fan Air Pressure |
3.61 mmH2O |
|
Fan MTTF |
>160,000 Hours |
|
Fan Noise Level |
38.5 dB(A) |
|
Fan Bearing Type |
Loop Dynamic Bearing |
|
Fan Connector |
7-Pin PWM + ARGB |
|
Fan Rated Voltage |
12 VDC |
|
Fan Rated Current |
0.5A |
|
Fan Safety Current |
0.8A |
|
Fan Power Consumption |
6 W |
|
Radiator Size |
360 |
|
Cooler Type |
Liquid Cooler |
|
Series |
MasterLiquid |
|
LCD Dimensions |
85 x 79.2 x 18.7 mm (3.4 x 3.1 x 0.7 inch) |
|
LCD Connector |
USB Type-C to Motherboard 9 pin |
|
LCD Screen Size |
2.1 inches / Diameter 53.3 mm |
|
LCD Screen Resolution |
480 x 480 Px |
|
LCD Screen Luminance |
300 cd/m² |
|
LCD Screen Refresh Rate |
60Hz |
|
LCD Screen Orientation |
Software-MasterCtrl adjustable |
|
LCD Rated Voltage |
5 VDC |
|
LCD Rated Current |
0.3 A |
|
LCD Safety Current |
0.5 A |
|
LCD Power Consumption |
1.5W |
|
Warranty |
6 Years |
|
Note** |
*Price, feature and specifications are subject to change without notice. |
