Dual Chamber Pump
The dual-chamber pump design separates the hot coolant from the cooled coolant, helping optimize heat transfer and improve cooling efficiency. This design allows the cooler to maintain effective coolant circulation and helps provide stable CPU temperatures during demanding workloads such as gaming, video editing, rendering, and multitasking.
Innovative Design

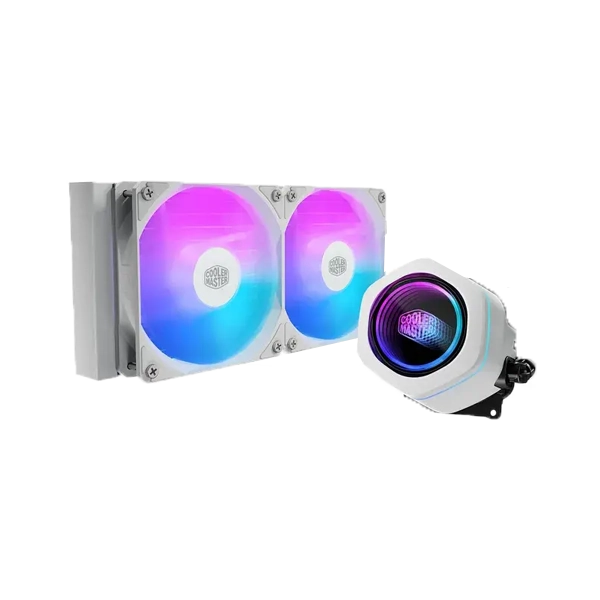

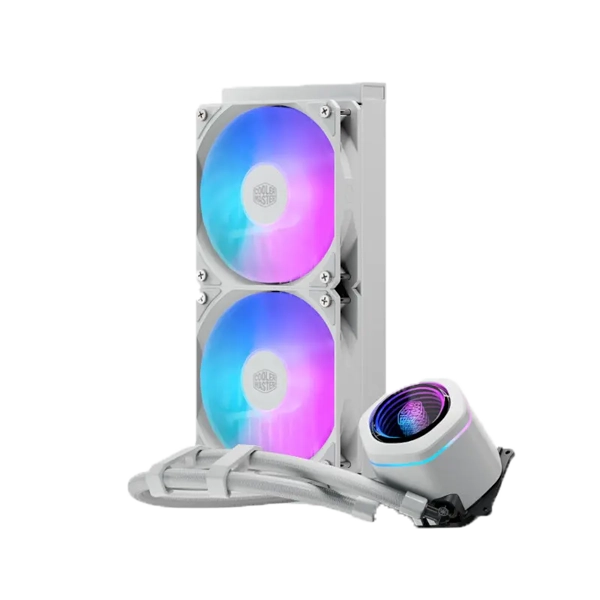

The MasterLiquid Core Nex 240 features an innovative cooling design focused on efficient heat dissipation and reliable operation. Its 240mm radiator provides a larger surface area for transferring heat away from the CPU, while the two 120mm fans deliver airflow through the radiator.
Flexible Pump Orientation
The pump assembly is designed with flexible orientation, giving users more freedom when positioning the CPU block during installation. This is especially useful when creating clean and organized PC builds where component placement and cable management are important.
Easy Installation
The cooler is designed to make installation straightforward, helping users set up their liquid cooling system without unnecessary complexity. The included mounting hardware supports compatible Intel and AMD platforms, making it suitable for a wide range of modern processors.
Universal Socket Support
The MasterLiquid Core Nex 240 supports a broad range of CPU sockets, including Intel LGA 1851, LGA 1700, LGA 1200, LGA 115x and AMD AM5 and AM4. This wide compatibility makes it a versatile option for both new PC builds and upgrades.
Optimum Tubing Length
With 400mm tubing, the cooler provides useful flexibility for radiator placement and installation inside compatible PC cases. The tubing length helps make routing easier while maintaining a neat-looking build.
ARGB Lighting & White Design
The ARGB lighting adds customizable illumination to your setup, while the white finish complements white, black-and-white, and RGB-themed gaming PCs. Compatible motherboard lighting software can be used to coordinate the lighting with other components.
Brand | Cooler Master |
Model | MLX-D24M-A18PA-RW |
Color | White |
CPU Socket | Intel: Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 |
AMD: AMD® AM5 / AM4 | |
Radiator Material | Aluminum |
Radiator Dimensions | 277 x 119.6 x 27 mm |
(10.9 x 4.71 x 1.1 inch) | |
Tube Length | 400 mm |
Pump Dimension | 83.6 x 78.5 x 62.9 mm |
(3.3 x 3.1 x 2.5 inch) | |
Pump Profile | Addressable RGB |
Pump Speed | 3200 ±10% RPM |
Pump MTTF | > 35,0000 hours |
Pump Noise Level | 25 dB(A) |
Pump Connector | 3-Pin ARGB + 4 Pin PWM |
Pump Rated Voltage | 12 VDC |
Pump Power Consumption | 7.2 W |
Fan Dimensions (L x W x H) | 120 x 120 x 25 mm |
(4.7 x 4.7 x 1 inch) | |
Fan Quantity | 2 PCS |
Fan LED Type | Addressable RGB |
Fan Speed | 650 ~ 1750 RPM ± 10% |
Fan Airflow | 122.4 m³/h (71.9 CFM) |
Fan Noise Level | 27.2 dB(A) |
Fan Pressure | 1.86 mm H2O |
Fan Bearing Type | Rifle |
Fan MTTF | > 40,000 hours |
Fan Connector | 7-Pin PWM + ARGB |
Fan Rated Voltage | 12 VDC |
Fan Rated Current | 0.26 A |
Fan Safety Current | 0.37 A |
Power Consumption | 3.12 W |
Warranty | 5 Years |
Note | *Prices, Specifications & Features are subject to change without notice |
