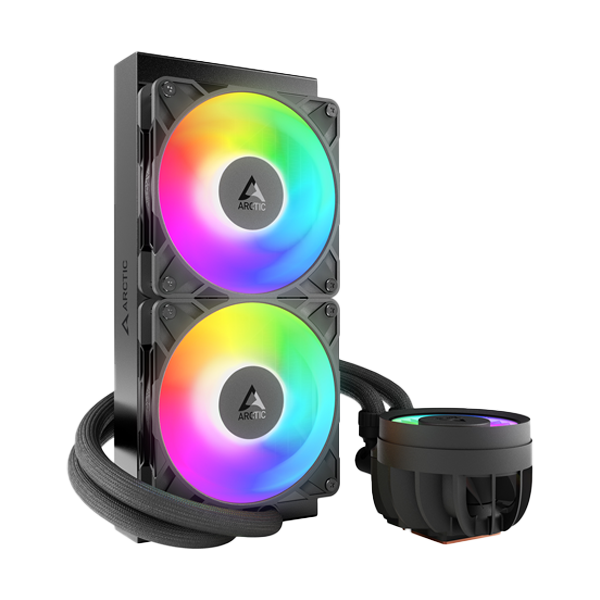

The Arctic Liquid Freezer III Pro 240 A-RGB Black CPU Liquid Cooler is a high-performance all-in-one (AIO) liquid cooling solution designed for efficient CPU cooling with enhanced aesthetics and compatibility. Below are its key features based on available information:
Multi-Compatibility:
Supports Intel sockets: LGA1851 and LGA1700.
Supports AMD sockets: AM5 and AM4.
Future-proof for Intel’s upcoming Arrow Lake processors on LGA1851 without limitations.
High Cooling Performance:
Features a 38 mm thick 240 mm radiator with a 23% larger cooling surface for improved heat dissipation and greater liquid volume, effectively managing temperature spikes.
Outperforms competitors in independent tests, particularly in noise-normalized performance, offering quiet yet powerful operation.
Optimized Intel Contact Frame:
Includes a custom mounting frame for Intel LGA1700 and LGA1851, reducing CPU deformation caused by Intel’s Independent Loading Mechanism (ILM).
Minimizes mechanical stress on the CPU and motherboard, ensuring consistent cooling performance and easier installation.
AMD Offset Mounting:
Features a 5 mm offset mounting solution optimized for AMD Ryzen’s multi-die chiplet design, targeting the CPU hotspot for efficient heat transfer.
Pre-Installed Radiator Fans:
Comes with pre-installed PWM-controlled fans in a push configuration for immediate use.
Fan cables are integrated into the hose sleeving, requiring only one cable connection to the motherboard for simplified installation.
VRM Cooling Fan:
Includes a 60 mm PWM-controlled VRM fan for near-silent cooling of motherboard voltage converters, ideal for overclocking or cases with poor airflow.
A-RGB Lighting:
Features addressable RGB (A-RGB) lighting on the pump and fans, using standardized 3-pin cables for compatibility with most motherboard lighting systems and software (e.g., SignalRGB).
Enhances aesthetics with customizable lighting effects.
Efficient PWM-Controlled Pump:
Equipped with an in-house developed, efficient PWM-controlled pump for optimized cooling performance with low power consumption.
High Static Pressure Fans:
Utilizes ARCTIC’s P-series fans, optimized for high static pressure, ideal for dense radiator fins, delivering superior cooling efficiency compared to standard airflow fans.
Easy Installation:
Pre-wired fans and included MX-6 thermal compound simplify setup.
Animated installation instructions (accessible via QR code) guide users through the process.
Independent Fan Control:
Uses a splitter cable with three separate connections, allowing independent control of the pump, VRM fan, and radiator fans via PWM settings for customized performance.
Long-Term Durability:
Backed by a 6-year manufacturer’s warranty, ensuring reliability and quality through rigorous long-term testing.
Compact Design Considerations:
Requires at least 63 mm of clearance for installation, so users should verify case and RAM compatibility.
Limited compatibility with some motherboards due to oversized M.2 SSD coolers; ARCTIC provides a free M.2 cooler for affected setups.
|
Brand |
Arctic |
|
Model |
ACFRE00182A |
|
Color |
Black |
|
General Specifications |
|
|
TIM |
MX-6 (0.8 g) |
|
Operating Ambient Temperature |
0—40 °C |
|
Pump Speed |
800–2800 rpm (PWM controlled) |
|
Current |
0.35 A | 12 V DC |
|
Cold Plate |
Copper, Micro Skived Fins |
|
Tube Length |
450 mm |
|
Tube Diameter |
Outer: 12.4 mm |
|
|
Inner: 6.0 mm |
|
Weight |
1665 g |
|
Compatibility |
|
|
Intel |
LGA1851, LGA1700 |
|
AMD |
AM5, AM4 |
|
Radiator |
|
|
Material |
Aluminium |
|
Dimensions |
277 (L) x 120 (W) x 38 (H) mm |
|
VRM Module |
|
|
VRM Fan Speed |
400–2500 rpm (PWM-controlled) |
|
VRM Current |
0.05 A | 12 V DC |
|
LEDs |
12x A-RGB Gen2 LEDs |
|
LED Current |
0.40 A | 5 V DC |
|
Radiator Fan |
|
|
General |
2x P12 Pro A-RGB |
|
Speed |
600–3000 rpm |
|
Airflow |
77 cfm |
|
Static Pressure |
6.9 mmH2O |
|
Bearing |
Fluid Dynamic Bearing |
|
Current |
0.33 A | 12 V DC |
|
Connector |
4-Pin Fan Plug |
|
RGB |
|
|
LEDs |
12x A-RGB Gen2 LEDs |
|
Current |
0.40 A | 5 V DC |
|
Connector |
3-Pin A-RGB Plug + 3-Pin Socket |
|
Packaging |
|
|
Width |
171 mm |
|
Height |
142 mm |
|
Length |
294 mm |
|
Weight |
2.055 kg |
|
Warranty |
6 Years |
|
Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
