Gigabyte B760M DS3H DDR5 Motherboard
FEATURES
Gigabyte B760M DS3H DDR5 Motherboard
CPU Support: Supports Intel® Core™ 14th/13th/12th generation processors.
VRM Solution: Hybrid 6+2+1 phases digital VRM design.
Memory: Dual-channel DDR5 with 4 DIMM slots; XMP memory module support.
Storage: Next-generation storage with 2 PCIe 4.0 x4 M.2 connectors.
Connectivity: 2.5GbE LAN, rear USB-C® 10Gb/s, DP, HDMI.
Audio: 8-channel HD audio with noise guard and high-end capacitors.
PCIe Slots: 1 PCIe 4.0 x16 slot, 2 PCIe 4.0 x4 M.2 connectors.
Other Features: EZ-Latch design for quick release of PCIe 4.0 x16 slot, Smart Fan 6 with multiple temperature sensors, Q-Flash Plus for BIOS updates without CPU, memory, or graphics card installation.
SPECIFICATIONS
| Brand | Gigabyte |
| Color | Black |
| CPU | LGA1700 socket: Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors |
| Chipset | Intel® B760 Express Chipset |
| Memory | Supports DDR5 memory up to 7800(O.C.) MT/s |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Audio | Realtek® Audio CODEC, High Definition Audio |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Storage Interface | 2x M.2 connectors, 4x SATA 6Gb/s connectors |
| USB | Up to 10x USB ports (including internal headers) |
| Internal I/O Connectors | Multiple connectors including fan headers, RGB LED strip headers, and TPM header |

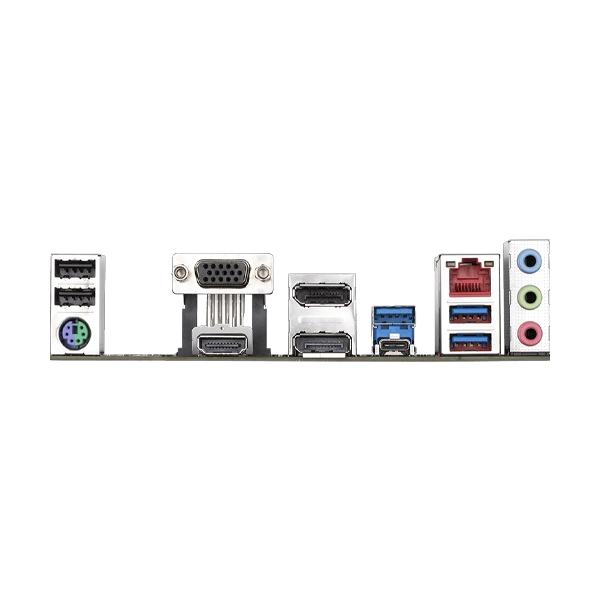

| Back Panel Connectors | Multiple connectors including USB ports, video outputs, audio jacks, and LAN port |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, and water cooling flow rate detection |
| BIOS | 128 Mbit flash, AMI UEFI BIOS |
| Unique Features | Support for GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Supports Windows 11 64-bit and Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
| warranty | 3-year |
| Note | *Features, Price and Specifications are subject to change without notice. |
