Supports Intel® Core™ Ultra processors (Series 2)
Twin Hybrid 12+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
EZ-Latch Click : M.2 heatsinks with screwless design
New Power Monitor in HWinfo for real-time monitoring on CPU power phases
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity : USB4 Type-C with DP-Alt, HDMI, DisplayPort
|
Brand |
Gigabyte |
|
Model |

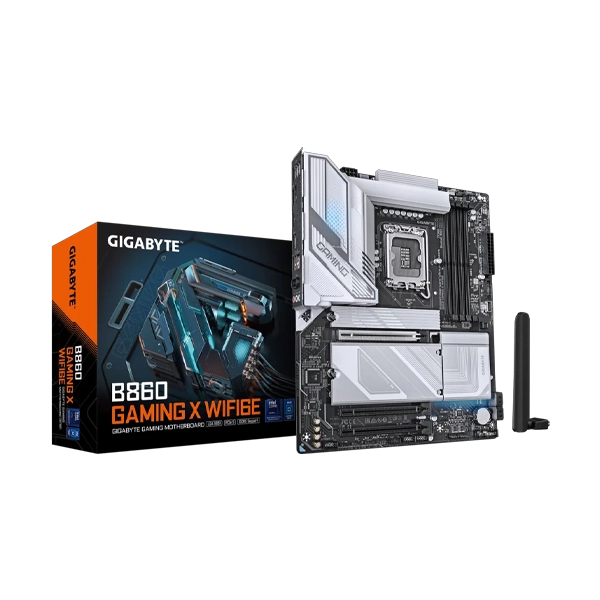

B860 GAMING X WIFI6E |
|
Color |
Black |
|
CPU |
LGA1851 socket, supports Intel® Core™ Ultra Processors |
|
L3 Cache |
Varies with CPU |
|
Chipset |
Intel® B860 Express Chipset |
|
Memory |
Supports DDR5 up to 9066(O.C), 4 x DIMM slots (up to 256GB), Dual-channel, ECC/Non-ECC Un-buffered DIMM support, XMP support |
|
Onboard Graphics |
Intel® HD Graphics, USB4 Type-C (DP 3840x2160@144Hz), DisplayPort 2.1 (3840x2160@144Hz), HDMI 2.1 (4096x2160@60Hz), Supports triple display |
|
Audio |
Realtek® Audio CODEC, HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out |
|
LAN |
Realtek® 2.5GbE LAN chip (2.5G/1G/100M) |
|
Wireless |
Intel® Wi-Fi 6E AX211 (Rev. 1.0) or Realtek® Wi-Fi 6E RTL8852CE (Rev. 1.1), Bluetooth 5.3, 11ax 160MHz support |
|
Expansion Slots |
1 x PCIe 5.0 x16 (for GPU/NVMe SSD), 2 x PCIe 4.0 x1 |
|
Storage |
1 x M.2 PCIe 5.0 x4, 2 x M.2 PCIe 4.0 x4, 4 x SATA 6Gb/s (RAID 0/1/5/10) |
|
USB Ports |
USB4 Type-C, USB 3.2 Gen 2 (Type-A & Type-C), USB 3.2 Gen 1, USB 2.0 |
|
Internal I/O |
ATX power connectors, CPU & system fan headers, RGB headers, M.2 & SATA connectors, TPM header, Q-Flash Plus button |
|
Back Panel |
HDMI, DisplayPort, USB4 Type-C, USB 3.2, USB 2.0, RJ-45, Audio jacks, Antenna connectors |
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage, temperature, fan speed, water cooling flow rate detection, fan speed control |
|
BIOS |
256 Mbit flash, AMI UEFI BIOS, ACPI 5.0, SMBIOS 2.7 |
|
Unique Features |
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup |
|
Bundled Software |
Norton® Internet Security (OEM), LAN bandwidth management software |
|
Operating System |
Windows 11 64-bit |
|
Form Factor |
ATX (30.5cm x 24.4cm) |
|
Warranty |
3 Years |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
