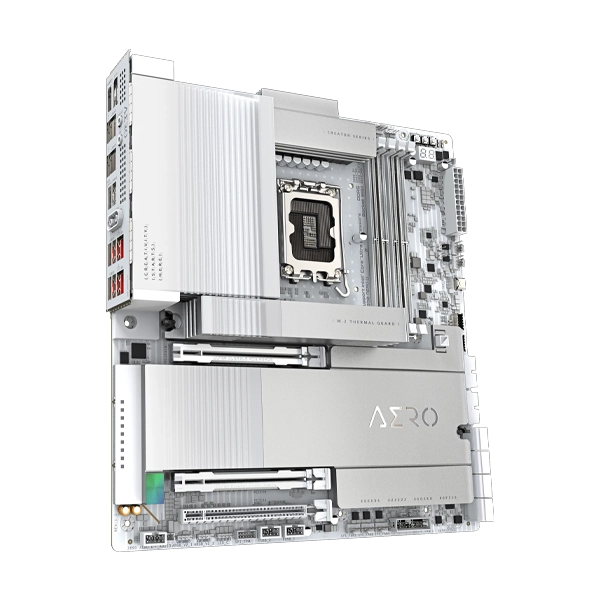

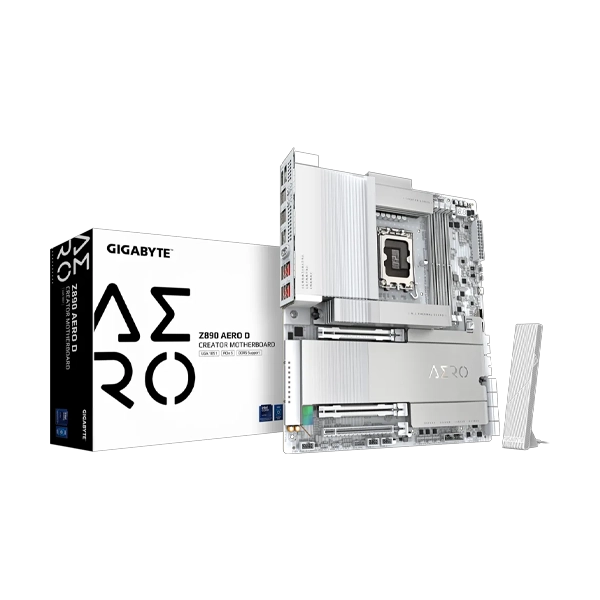

Gigabyte Z890 Aero D White Motherboard
FEATURES
- Supports Intel® Core™ Ultra processors (Series 2).
- VisionLINK/TB : One USB-C® Port for Video, Data Transfer and Charging.
- Ultimate Scalibility : 2*PCIe x16 slots for Multi-GPU.
- Extended Connectivity : Dual THUNDERBOLT™ 5 Type-C®with DP-Alt, HDMI.
- Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4.
- Blazing Fast Networks : Daul 10 GbE LAN and Wi-Fi 7 with directional Ultra-high gain antenna.
- Digital twin 16+1+2 phases VRM solution.
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation.
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design.
- EZ-Latch Click : M.2 heatsinks with screwless design.
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- D5 Bionic Corsa for Infinite Memory Performance.
- AORUS AI SNATCH : Auto-Overclocking Software by AI models.
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users.
- Premium Compatibility : 4*DDR5 with XMP Memory Module Support.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard XL.
- ESSential High-Fidelity Audio : ESS9260 DAC.
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card.
- Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability.
SPECIFITIONS
| Brand | Gigabyte |
| Model | Z890 AERO D |
| Color | White |
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors |
| L3 cache varies with CPU | |
| * Please refer to “CPU Support List” for more information. | |
| Chipset | Intel® Z890 Express Chipset |
| Memory | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) / 8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor+Intel® Thunderbolt™ 5 Controller: |
| – 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 7680×4320@60 Hz (single display output) | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.) | |
| * Support for DisplayPort 2.1 version and HDCP 2.3Integrated Graphics Processor-Intel® HD Graphics support: | |
| – 1 x Front Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs | |
| When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). | |
| When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). | |
| * Support for DisplayPort 2.1 version and HDCP 2.3- 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU or graphics card support.) | |
| Support for up to triple-display at the same time | |
| Audio | ESS ES9260 CODEC (rear panel audio) |
| – High Definition Audio | |
| – 2-channel | |
| Realtek® ALC897 CODEC (front panel audio) | |
| LAN | 2 x Marvell® AQtion AQC113C 10GbE LAN chips |
| (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication Module | Intel® Wi-Fi 7 BE200 |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 320MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. | |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8) | |
| * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. | |
| * The PCIEX16 and PCIEX8 slots can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset: | |
| – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| * The PCIEX4 slot shares bandwidth with the M2L_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector. | |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| Chipset: | |
| – 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB) | |
| – 4 x SATA 6Gb/s connectors (SATA3 4~7) | |
| Chipset+ASMedia® ASM1164 chip: | |
| – 4 x SATA 6Gb/s connectors (SATA3 0~3) | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset+Intel® Thunderbolt™ 5 Controller: |
| – 2 x USB4® USB Type-C® ports on the back panel | |
| CPU: | |
| – 1 x USB4® USB Type-C® port onboard | |
| – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header | |
| Chipset: | |
| – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header | |
| – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| – 2 x USB 3.2 Gen 1 ports on the back panel | |
| Chipset+USB 3.2 Gen 2 Hub: | |
| – 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| Chipset+USB 3.2 Gen 1 Hub: | |
| – 4 x USB 3.2 Gen 1 ports available through the internal USB headers | |
| Chipset+USB 2.0 Hub: | |
| – 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 2 x system fan/water cooling pump headers | |
| 3 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 4 x M.2 Socket 3 connectors | |
| 8 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port) | |
| 2 x USB Type-C® headers, with USB 3.2 Gen 2×2 support | |
| 2 x USB 3.2 Gen 1 headers | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x Q-Flash Plus button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| 2 x temperature sensor headers | |
| 1 x noise detection header | |

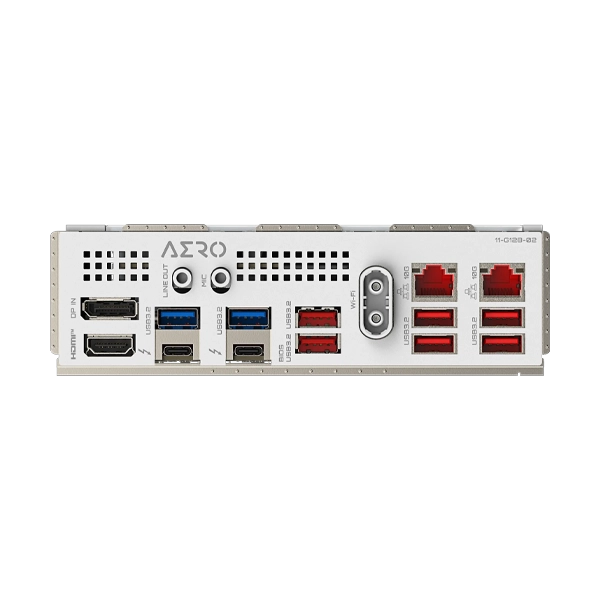

| Back Panel Connectors | 1 x DisplayPort In port |
| 1 x HDMI port (Note) | |
| 2 x audio jacks | |
| 2 x Intel® Thunderbolt™ 5 connectors (USB4® USB Type-C® ports) | |
| 2 x USB 3.2 Gen 1 ports | |
| 6 x USB 3.2 Gen 2 Type-A ports (red) | |
| 2 x antenna connectors (2T2R) | |
| 2 x RJ-45 ports(Note) Actual support may vary by CPU. | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash | |
| Support for Q-Flash Plus | |
| Support for Smart Backup | |
| Bundled Software | Norton® Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit (version 24H2 or later) |
| Form Factor | E-ATX Form Factor; 30.5cm x 28.5cm |
| Warranty | 3 Years |
| Note | **Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
