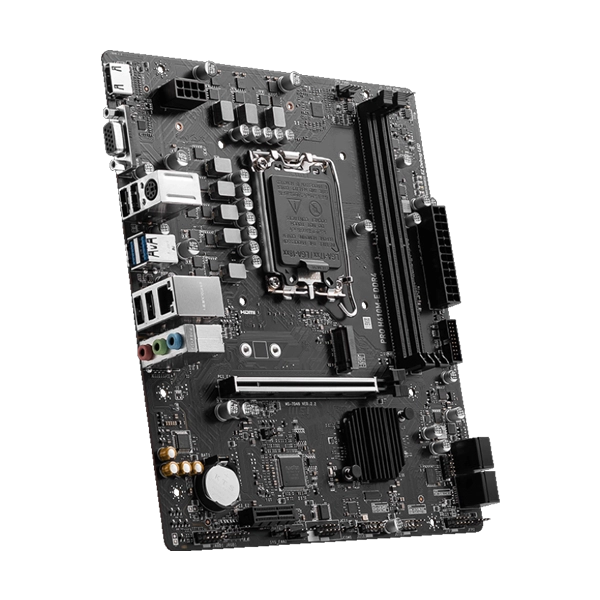

    MSI H610ME PRO DDR4 Motherboard

    SKU:
    PRO-H610M-E-DDR4
    0 Reviews
    ₹ 9,450 ~ ₹ 6,499 31 OFF
    Save GST upto18% on Business purchase
    Wishlist
    COD Available | No-cost EMI options

    Add to cart

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    MSI H610ME PRO DDR4 Motherboard



    FEATURES



    • 12TH GEN CORE READY - The PRO H610M-E DDR4 is a compact micro-ATX motherboard outfitted with the latest Intel H610 chipset (LGA 1700, 12th Gen Core ready); The VRM features MSI Core Boost technology for improved stability & peformance


    • GEN4 GPU SLOT, DUAL DIMMS - A PCIe 4.0 x16 slot (with steel frame) supports state-of-the-art graphics cards; Dual DIMM’s with dual-channel DDR4 architecture support up to 64 GB of SDRAM (3200MHz)


    • GEN3 M.2 SSD STORAGE - The M.2 Gen3 x4 32Gb/s slot is designed to maximize NVMe based SSD performance; SSD storage reduces loading time


    • PASSIVE & AI COOLING - A chipset heatsink provides passive cooling; a PCB base with thickened copper helps dissipate heat; Frozr AI cooling automatically adjusts system fan settings based on CPU & GPU temperatures


    • STAY CONNECTED - Features Realtek RTL8111H 1G LAN; Fixed ports include legacy VGA as well as the latest HDMI 1.4 ports (4K/30Hz) - requires CPU with integrated graphics; 4 x USB 3.2 Gen 1 Type-A (5Gb/s) and 7.1 HD Audio with Audio Boost



    SPECIFICATIONS



    Brand

    MSI

    Modle

    PRO-H610M-E-DDR4

    CPU

    Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1



    Processor socket LGA1700



    Please go to www.msi.com to get the newest support status as new processors are released.

    Chipset

    Intel® H610 Chipset

    Memory

    2x DDR4 memory slots, support up to 64GB 1



    Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)



    Supports Dual-Channel mode



    Supports non-ECC, un-buffered memory



    Please refer to www.msi.com for more information on compatible memory.

    Expansion Slots

    1x PCIe x16 slot (From CPU)



    Supports up to PCIe 4.0 x16



    1x PCIe x1 slot (From H610 chipset)



    Supports PCIe 3.0 x1

    Onboard Graphics

    1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz



    1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz



    Available only on processors featuring integrated graphics.Graphics specifications may vary depending on the CPU installed.

    Storage

    4x SATA 6Gb/s ports (From H610 chipset)



    1x M.2 slot (Key M) (from CPU)



    Supports up to PCIe 3.0 x4



    Supports 2242/ 2260/ 2280 storage devices

    USB

    USB 3.2 PORTS (FRONT): 2(Gen 1, Type A)



    USB 3.2 PORTS (REAR): 2(Gen 1, Type A)



    USB 2.0 PORTS (FRONT): 4



    USB 2.0 PORTS (REAR): 4

    Audio

    Realtek® ALC897 Codec



    7.1-Channel High Definition Audio

    LAN

    1x Realtek® RTL8111H 1Gbps LAN controller

    Internal Connectors

    1x 24-pin ATX main power connector



    1x 8-pin +12V power connector



    1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)



    Supports additional 2 USB 3.2 Gen 1 5Gbps ports



    2x USB 2.0 Type-A connectors (From Hub-GL850G)



    Supports additional 4 USB 2.0 ports



    1x 4-pin CPU fan connector



    2x 4-pin system fan connectors



    1x Front panel audio connector



    2x System panel connectors



    1x Chassis Intrusion connector



    1x TPM module connector



    1x Serial port connector



    1x Clear CMOS jumper

    Back Panel Ports

    HDMI™



    VGA



    Keyboard / Mouse



    USB 3.2 Gen 1 5Gbps Type-A



    LAN port



    Audio connector



    USB 2.0

    LED FEATURE

    1x 4-pin RGB LED connector



    4x EZ Debug LED

    Dimensions

    M-ATX Form Factor



    9.3 in. x 7.9 in. (23.6 cm x 20 cm)

    Operating System

    Support for Windows® 11 64-bit, Windows® 10 64-bit

    Warranty

    3 Years

    Note*

    Price, feature and specifications are subject to change without notice.
