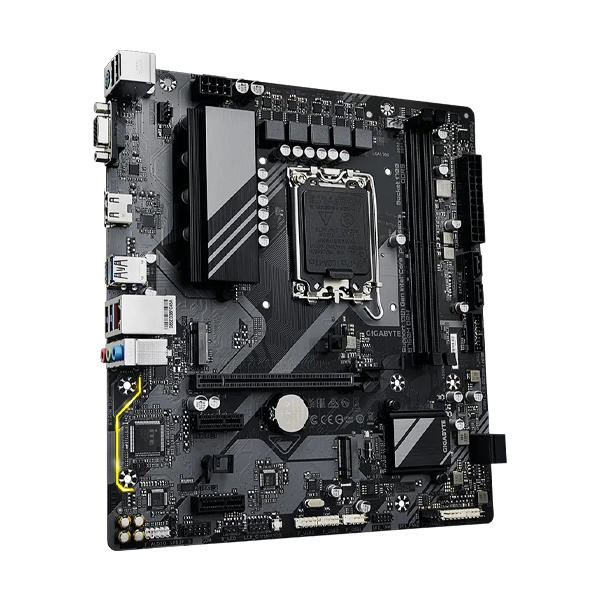

Intel® Socket LGA 1700: Support 13th and 12th Gen Series Processors.
Unparalleled Performance: Hybrid 6+2+1 Phases Digital VRM Solution.
Dual Channel DDR5: 2*DIMMs XMP Memory Module Support.
Next Generation Storage: 2*PCIe 4.0 x4 M.2 Connectors.
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design.
Fast Networks: 2.5GbE LAN.
Extended Connectivity: HDMI, D-Sub.
Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP.
Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card.
|
Brand |
Gigabyte |
|
Model |
B760M D2H |
|
Color |
Black |
|
CPU |
LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors |
|
|
|
|
|
L3 cache varies with CPU |
|
|
|
|
Chipset |
Intel® B760 Express Chipset |
|
Memory |
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
|
|
|
|
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory |
|
|
|
|
|
Dual channel memory architecture |
|
|
|
|
|
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) |
|
|
|
|
|
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
|
|
|
|
|
Support for Extreme Memory Profile (XMP) memory modules |
|
|
|
|
Onboard Graphics |
Integrated Graphics Processor-Intel® HD Graphics support: |
|
|
|
|
|
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz |
|
|
|
|
|
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
|
* Support for HDMI 2.0 version and HDCP 2.3. |
|
|
|
|
|
(Graphics specifications may vary depending on CPU support.) |
|
Audio |
Realtek® Audio CODEC |
|
|
|
|
|
High Definition Audio |
|
|
|
|
|
2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
|
|
|
|
Support for S/PDIF Out |
|
|
|
|
LAN |
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
|
Expansion Slots |
CPU: |
|
|
|
|
|
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 |
|
|
|
|
|
Chipset: |
|
|
|
|
|
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
|
Storage Interface |
CPU: |
|
|
|
|
|
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
|
|
|
|
Chipset: |
|
|
|
|
|
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) |
|
|
|
|
|
4 x SATA 6Gb/s connectors |
|
|
|
|
|
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
USB |
Chipset: |
|
|
|
|
|
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
|
|
|
|
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) |
|
|
|
|
|
Chipset+2 USB 2.0 Hubs: |
|
|
|
|
|
4 x USB 2.0/1.1 ports available through the internal USB headers |
|
|
|
|
Internal I/O Connectors |
1 x 24-pin ATX main power connector |
|
|
|
|
|
1 x 8-pin ATX 12V power connector |
|
|
|
|
|
1 x CPU fan header |
|
|
|
|
|
2 x system fan headers |
|
|
|
|
|
1 x addressable LED strip header |
|
|
|
|
|
1 x RGB LED strip header |
|
|
|
|
|
2 x M.2 Socket 3 connectors |
|
|
|
|
|
4 x SATA 6Gb/s connectors |
|
|
|
|
|
1 x front panel header |
|
|
|
|
|
1 x front panel audio header |
|
|
|
|
|
1 x S/PDIF Out header |
|
|
|
|
|
1 x USB 3.2 Gen 1 header |
|
|
|
|
|
3 x USB 2.0/1.1 headers |
|
|
|
|
|
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) |
|
|
|
|
|
1 x serial port header |
|
|
|
|
|
1 x Q-Flash Plus button |
|
|
|
|
|
1 x reset jumper |
|
|
|
|
|
1 x Clear CMOS jumper |
|
|
|
|

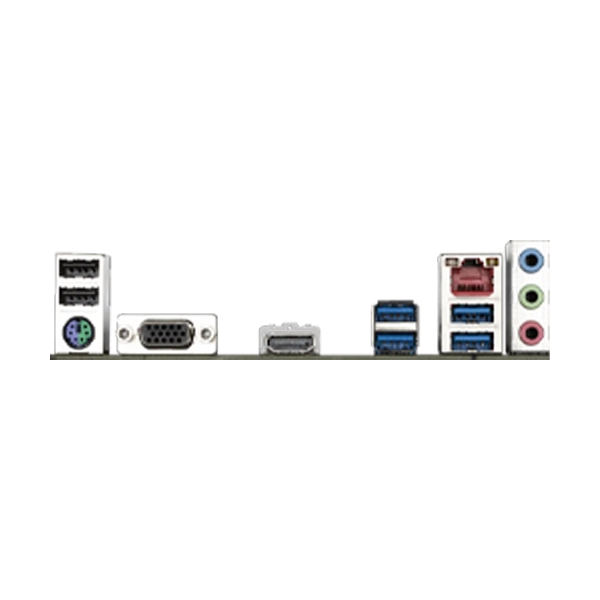

Back Panel Connectors |
1 x PS/2 keyboard/mouse port |
|
|
|
|
|
1 x D-Sub port |
|
|
|
|
|
1 x HDMI port |
|
|
|
|
|
4 x USB 3.2 Gen 1 ports |
|
|
|
|
|
2 x USB 2.0/1.1 ports |
|
|
|
|
|
1 x RJ-45 port |
|
|
|
|
|
3 x audio jacks |
|
|
|
|
I/O Controller |
iTE® I/O Controller Chip |
|
H/W Monitoring |
Voltage detection |
|
|
|
|
|
Temperature detection |
|
|
|
|
|
Fan speed detection |
|
|
|
|
|
Water cooling flow rate detection |
|
|
|
|
|
Fan fail warning |
|
|
|
|
|
Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. |
|
|
|
|
BIOS |
1 x 128 Mbit flash |
|
|
|
|
|
Use of licensed AMI UEFI BIOS |
|
|
|
|
|
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
|
|
|
Unique Features |
Support for GIGABYTE Control Center (GCC) |
|
|
|
|
|
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. |
|
|
|
|
|
Support for Q-Flash |
|
|
|
|
|
Support for Q-Flash Plus |
|
|
|
|
Bundled Software |
Norton® Internet Security (OEM version) |
|
|
|
|
|
LAN bandwidth management software |
|
|
|
|
Operating System |
Support for Windows 11 64-bit |
|
|
|
|
|
Support for Windows 10 64-bit |
|
|
|
|
Form Factor |
Micro ATX Form Factor; 24.4cm x 22.5cm |
|
Warranty |
3 Years |
|
Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
