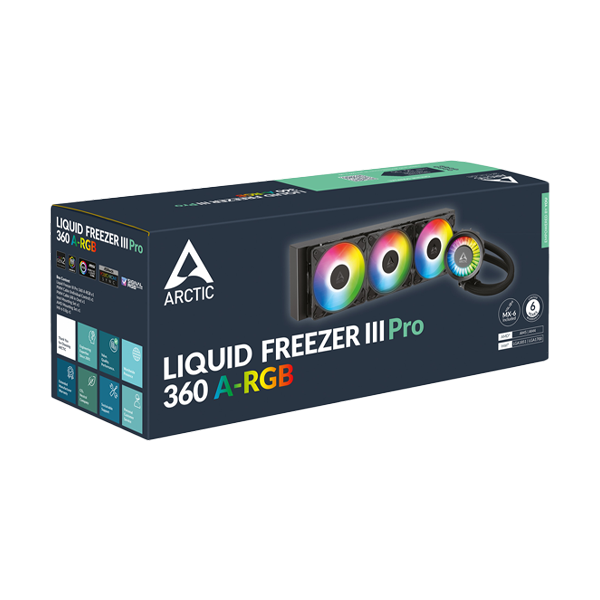

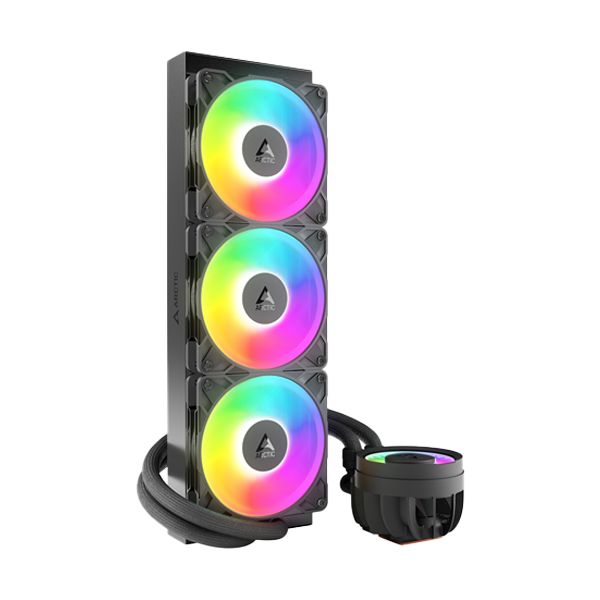

The Arctic Liquid Freezer III Pro 360 A-RGB is an all-in-one (AIO) liquid CPU cooler designed for high-performance cooling with customizable aesthetics. Below are its key features based on available information:
Cooling Performance:
360mm Radiator: Features a 38mm-thick aluminum radiator for enhanced heat dissipation and higher liquid capacity, reducing heat buildup.
P12 Pro A-RGB Fans: Includes three 120mm fans (600-3000 RPM, fluid dynamic bearing) with a seven-blade design for high static pressure, optimizing airflow through the radiator while minimizing vibrations.
Integrated VRM Fan: A 40mm PWM-controlled fan (400-2500 RPM) cools the voltage regulator module and nearby components, ensuring system stability.
High-Efficiency Pump: Quiet, durable pump with low power consumption for effective cooling and long-term reliability.
Compatibility:
CPU Socket Support: Compatible with AMD AM5/AM4 and Intel LGA1851/1700 sockets, covering a wide range of modern processors.
Offset Mount: Shifts the cold plate to align with CPU hotspots for improved heat transfer.
Intel Contact Frame: Optimizes contact pressure distribution to enhance heat dissipation and extend CPU lifespan.
Aesthetics and Lighting:
A-RGB Lighting: Features 12 A-RGB Gen2 LEDs per fan, customizable via 3-pin ARGB (+5V/DATA/GND) for vibrant, synchronized lighting effects.
Black Design: Sleek black radiator and components for a clean, premium aesthetic.
Installation and Design:
Integrated Cable Management: Fan cables are sleeved within the EPDM tubes, simplifying installation and reducing cable clutter.
Pre-Installed Fans: Comes with pre-installed radiator fans in push configuration for easy setup.
MX-6 Thermal Paste: Includes pre-applied high-performance thermal paste in a cross pattern for optimal heat transfer.
Durable Tubing: Reinforced EPDM tubes with braided covering for enhanced durability and leak resistance.
Clearance Requirement: Requires at least 63mm of clearance for installation.
Reliability and Warranty:
6-Year Warranty: Backed by Arctic’s long-term testing for quality and durability.
Leak-Resistant Design: Ensures reliable, maintenance-free operation.
|
Brand |
Arctic |
|
Model |
ACFRE00184A |
|
Color |
Black |
|
General Specifications |
|
|
TIM |
MX-6 (0.8 g) |
|
Operating Ambient Temperature |
0—40 °C |
|
Pump Speed |
800–2800 rpm (PWM controlled) |
|
Pump Current |
0.35 A | 12 V DC |
|
Cold Plate |
Copper, Micro Skived Fins |
|
Tube Length |
450 mm |
|
Tube Diameter |
Outer: 12.4 mm |
|
|
Inner: 6.0 mm |
|
Weight |
2005 g |
|
Compatibility |
|
|
Intel |
LGA1851, LGA1700 |
|
AMD |
AM5, AM4 |
|
Radiator |
|
|
Material |
Aluminium |
|
Dimensions |
398 (L) x 120 (W) x 38 (H) mm |
|
VRM Module |
|
|
VRM Fan Speed |
400–2500 rpm (PWM-controlled) |
|
VRM Current |
0.05 A | 12 V DC |
|
LEDs |
12x A-RGB Gen2 LEDs |
|
LED Current |
0.40 A | 5 V DC |
|
Radiator Fan |
|
|
General |
3x P12 Pro A-RGB |
|
Speed |
600–3000 rpm |
|
Airflow |
77 cfm |
|
Static Pressure |
6.9 mmH2O |
|
Bearing |
Fluid Dynamic Bearing |
|
Current |
0.33 A | 12 V DC |
|
Connector |
4-Pin Fan Plug |
|
RGB |
|
|
LEDs |
12x A-RGB Gen2 LEDs |
|
Current |
0.40 A | 5 V DC |
|
Connector |
3-Pin A-RGB Plug + 3-Pin Socket |
|
Packaging |
|
|
Width |
167 mm |
|
Height |
142 mm |
|
Length |
414 mm |
|
Weight |
2.45 kg |
|
Warranty |
6 Years |
|
Note |
**Features, Price, Specifications are subject to change without notice. Images used for representation purpose only. |
