EVGA 1000 P5, 80 Plus Platinum Fully Modular
FEATURES
-
Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
-
Fully Modular to reduce clutter and improve airflow
-
NVIDIA SLI & AMD Crossfire Ready
-
80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
-
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
-
100% Japanese Capacitors ensure long-term reliability
-
Active Clamp +DC to DC design for efficient operation
-
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
-
Active Power Factor Correction
-
Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
- DC-DC Converter improves 3.3V/5V stability
SPECIFICATIONS
| Model / Part Number | 220‑P5‑1000‑X1 |
| Power Output | 1000 W |
| Certification | 80 PLUS Platinum |
| Efficiency (Typical) | 92 % @ 115 VAC / 94 % @ 220‑240 |
| Form Factor / Standard | ATX12V / EPS12V (ATX PSU form factor) |
| Modularity | Fully modular |
| Cooling / Fan | 135 mm Fluid Dynamic Bearing (FDB) fan |
| ECO / Fan Control | EVGA ECO intelligent thermal control (fan stops or remains silent at low to medium loads) |
| Input Voltage / Current | 100‑240 VAC, 15‑8 A, 50/60 Hz |
| Operating Temperature Range | 0 °C to 50 °C |
| MTBF | 100,000 hours |
| Protection Features | Over Voltage (OVP), Under Voltage (UVP), Over Current (OCP), Over Power (OPP), Short Circuit (SCP), Over Temperature (OTP) |
| Capacitors | 100% Japanese capacitors (plus solid state aluminum caps on modular board) |

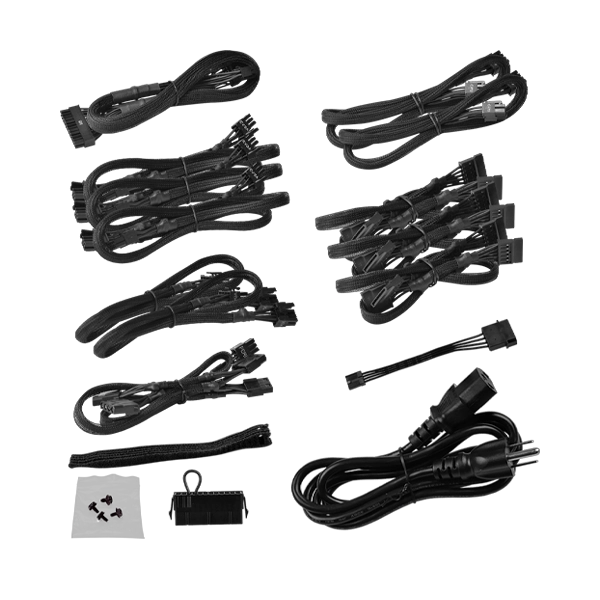

| Connector / Cable Layout | 1 × 24‑pin ATX |
| 2 × 8‑pin EPS12V (4+4 detachable) | |
| 8 × PCIe (6+2) | |
| 12 × SATA | |
| 4 × 4‑pin Peripheral | |
| 1 × Floppy (mini) | |
| Cable Lengths | ATX: 600 mm |
| EPS: 2 × 700 mm | |
| PCIe: mix of 700 mm & 850 mm | |
| SATA: multiple runs (550 / 650 / 750 / 850 mm) | |
| Peripheral: 550 / 650 / 750 / 850 mm | |
| Floppy adapter: 100 mm | |
| AC power: 1500 mm | |
| Dimensions (H × W × D) | 86 mm × 150 mm × 150 mm |
| Weight | ~3.13 kg (≈ 6.9‑7.0 lbs) |
| Warranty | 10 years |
| NOTE | *Price, feature and specifications are subject to change without notice. |
