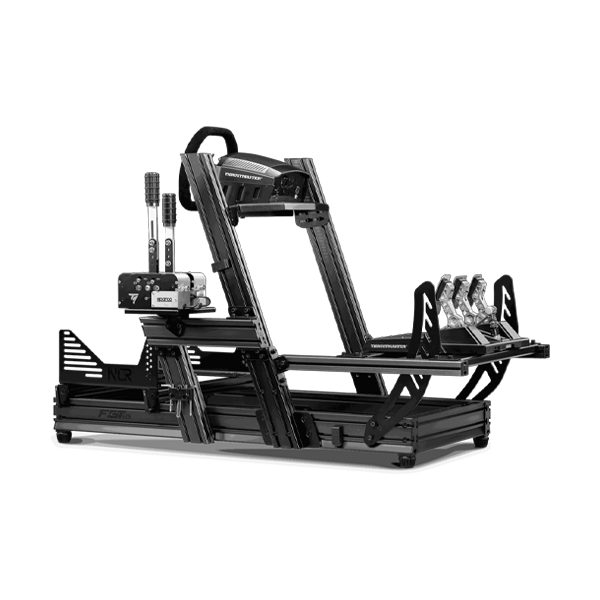

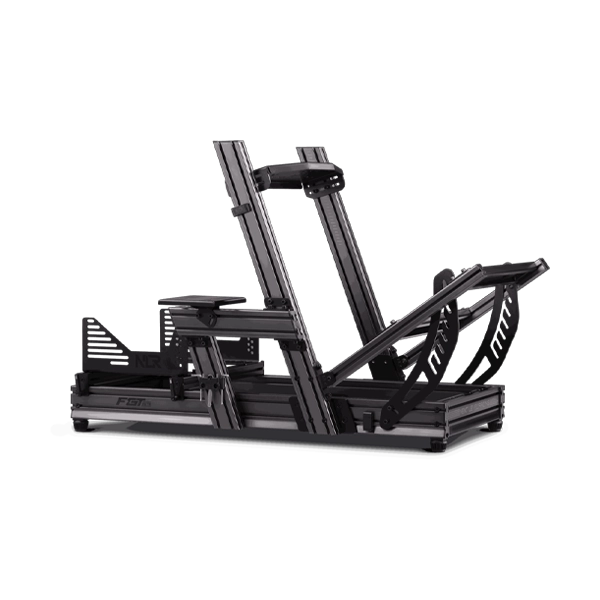

ALL-IN-ONE, MULTI-POSITION COCKPIT
Whilst providing complete rigidity and ultimate adjustability the F-GT Elite cockpit offers true and comfortable Formula, GT, hybrid, truck and tank driving positions with quick adjustments between positions making it a true one for all cockpit. The increased angle and range provided in the seat brackets, wheel and pedal plate caters for users of all sizes and driving styles by giving more adjustability than ever before.
INNOVATIVE FLEX-FREE NLR SEAT SLIDER AND BRACKET SYSTEM
The innovative Next Level Racing® Seat Sliding System has been designed and engineered to eliminate the issue of flex found in conventional seat sliders used in simulation. The NLR ratchets are used to easily slide your seat back and forth to find the desired position for a flex free racing experience.
The Next Level Racing® Seat Brackets are constructed from 5mm carbon steel to provide the rigidity required for high end sim racers and the new design provides more adjustability than ever before to support multiple seating positions with 98 adjustment options. The optional Next Level Racing® ES1 Elite Sim Racing Seat is the recommended seat to use with the Elite range of cockpits as the seat has been designed and optimised for elite sim racers.
UNIVERSAL SLIDING PEDAL PLATES
The sliding pedal plates have been designed to provide easy and quick distance adjustments for pedals as well as compatibility with the continuously expanding pedal market. Equipped with 2 slotted 5mm carbon steel pedal plates with double precision folds, this setup ensures supreme rigidity but straightforward compatibility. The pedal tray area has been designed to offer more angle, height and distance adjustments to accommodate for a wider range of driving positions. The laser etched markings on the aluminium profile assist with making accurate adjustments.
CUSTOM PROFILE AND POST ANODIZING
When it comes to aluminium profiles, they are not all the same quality and strength. The F-GT Elite features a premium thick-walled profile and a custom NLR 100mm x 40mm profile for the base of the cockpit, with a total weight of 53kg. This custom shape of the base profile provides extra strength and refined aesthetics.
The post anodized carbon grey profile is achieved by a chemical balance and anodizing process that not only looks visually stunning but also provides a scratch resistant finish compared to your typical black profile that is prone to scratching. The premium post anodizing process means that even the ends of the profiles and holes are anodized for visual perfection as well as long term protection. The post anodizing process as a last step also prevents having sharp shavings/edging ensuring safe setup of your new cockpit.
DESIGN SHOULD BE BEAUTIFUL AND FUNCTIONAL
The F-GT Elite cockpit provides a long list of unique custom engineered components to provide users with the highest quality and performing product on the market. Rather than adapting industrial off the shelf components, we are pioneering how aluminium profile cockpits should be designed. No industrial square brackets are required, profile pieces are pre-machined to allow for quicker, easier and stronger connections. We focused on the finer details like the black electroplated premium spring ball T-slot nuts and the custom NLR end caps to combine for improved functionality. The premium finish and materials, custom components and market leading design come together for a visual masterpiece.
MOTION ECOSYSTEM
Adding motion has never been easier as the F-GT Elite cockpit is compatible with all Next Level Racing® Motion products and designed for quick and simple installation with pre machined holes and included brackets.
|
Brand |
Next Level Racing |
|
Model |
NLR-E001 |
|
Color |
Carbon Grey (Black) |
|
Product Type |
Aluminium Sim Racing Cockpit — Wheel Plate Edition |
|
Supported User Height |
120 – 210 cm (4 ft – 6 ft 9 in) |
|
Maximum Supported Weight |
150 kg / 330 lbs |
|
Product Dimensions (L × W × H) |
120 × 70 × 84 cm (47.2″ × 27.6″ × 33.1″) |
|
Box Dimensions (L × W × H) |
125 × 43 × 34.5 cm (49.2″ × 16.9″ × 13.6″) |
|
Product Weight (Unboxed) |
~53 kg / 117 lbs |
|
Boxed Weight (GW) |
~57 kg / 126 lbs |
|
Materials |
Custom post-anodized carbon-grey aluminium profile & premium carbon steel components |
|
Wheel Mount Type |
Universal Wheel Plate (bottom-mount) |
|
Pedal Adjustability |
Height, angle & distance adjustable |
|
Seat Bracket System |
Flex-Free NLR Seat Slider with adjustable steel brackets |
|
Pre-Machined Profile |
Laser-etched and precision holes for assembly & rigidity |
|
Compatibility — Steering Wheels |
Fanatec, Thrustmaster, Logitech, Simxperience, and others |
|
Compatibility — Motion |
Next Level Racing® Motion Platforms V3 |
|
Finish |
Carbon-grey anodized aluminium & powder-coated steel |
|
Included Accessories |
Shifter & handbrake plate, footstep plate, ratchet tool with M6/M8 tips, cable clips, Buttkicker® Gamer 2 adaptor, custom end caps, magnetic spirit level, instruction booklet |
|
Warranty |
12 Months |
|
Note |
* Features, Price, Specifications are subject to change without notice. |
