    Ubiquiti PowerBeam 5AC 500mm CPE Outdoor Antenna

    SKU:
    PBE-5AC-500
    Be first to review
    ₹ 22,999 ~ ₹ 20,399 11 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Ubiquiti PowerBeam 5AC 500mm CPE Outdoor Antenna


    FEATURES

    • The Ubiquiti PowerBeam 5AC 500 (PBE-5AC-500) is a high-performance outdoor wireless networking device designed for long-distance, high-speed network connections. It is an ideal solution for connecting two buildings, offices, warehouses, remote locations, CCTV systems, or other sites where installing physical network cables may be difficult or expensive.
    • The PowerBeam 5AC 500 operates on the 5 GHz frequency band and uses Ubiquiti’s airMAX AC technology to provide reliable and efficient wireless communication. Its powerful 27 dBi directional antenna focuses the wireless signal toward the receiving device, helping establish stable long-distance connections and improving wireless performance in outdoor environments.
    • With its high-performance wireless capabilities, the PowerBeam is suitable for applications such as internet sharing, IP surveillance, VoIP, file transfers, remote networking, and building-to-building connectivity. It features a Gigabit Ethernet port, allowing fast and reliable connectivity with routers, switches, computers, cameras, and other compatible network equipment.

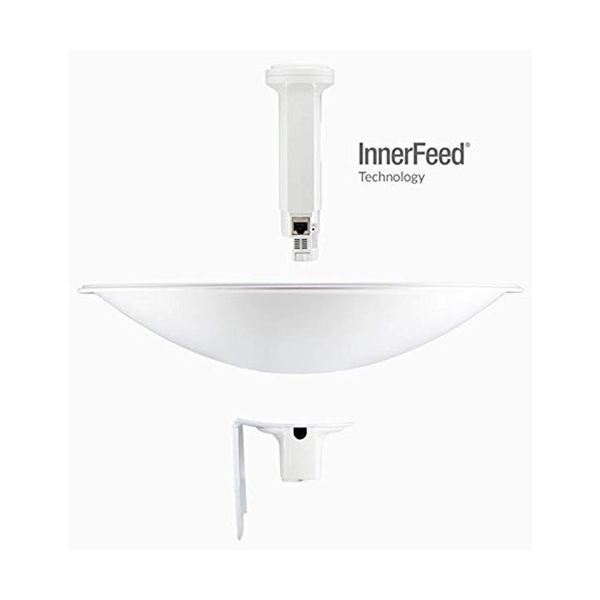

    • The large 500 mm dish-style antenna provides focused signal transmission and helps reduce unwanted interference by concentrating the wireless signal in the required direction. This makes the device especially suitable for point-to-point wireless links where accurate alignment between two locations is important.
    • The PowerBeam 5AC 500 is designed for outdoor deployment and features a durable construction suitable for rooftops, towers, poles, and other outdoor installations. Its mounting system makes installation and alignment convenient for professional wireless network setups.
    • The device also supports Power over Ethernet (PoE), allowing power and network data to be delivered through a single Ethernet cable. This helps simplify installation and reduces the need for separate power connections at the installation location.
    • Overall, the Ubiquiti PBE-5AC-500 is a reliable choice for users looking for a long-range, high-performance wireless bridge. It combines a 27 dBi directional antenna, airMAX AC technology, Gigabit Ethernet connectivity, PoE support, and a durable outdoor design to provide a practical solution for professional wireless networking applications.


    SPECIFICATIONS


    Brand

    Ubiquiti

    Model

    PBE-5AC-500

    Color

    White

    Hardware


    Networking interface

    (1) GbE RJ45 port

    Power method

    Passive PoE 2-pair (4, 5+; 7, 8 return)

    Power supply

    24V, 0.5A gigabit PoE adapter (Included)

    Supported voltage range

    20-27V DC

    Max. power consumption

    8.5W

    ESD/EMP protection

    Air/contact: ± 24 kV

    LEDs

    (1) Power, (1) LAN, (4) WLAN

    Signal strength LEDs

    Software-adjustable to correspond to custom RSSI levels

    Salt fog test

    IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5

    Vibration test

    IEC 68-2-6

    Temperature shock test

    IEC 68-2-14

    UV test

    IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4

    Wind-driven rain test

    ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5

    Ambient operating temperature

    -40 to 70° C (-40 to 158° F)

    Ambient operating humidity

    5 to 95% noncondensing

    Certifications

    FCC, IC, CE, RoHS

    System


    Gain

    27 dBi

    Max. VSWR

    1.5:1

    Channel sizes PtP Mode PtMP Mode

    10/20/30/40/50/60/80 MHz 10/20/30/40 MHz

    Polarization

    Dual linear

    Operating Frequency (MHz)


    Worldwide

    5150 - 5875 MHz

    USA U-NII-1 U-NII-2A U-NII-2C U-NII-3

    5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz

    Mechanical


    Dimensions

    Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1") With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4"

    Weight

    Without radome: 2.35 kg (5.2 lb) With radome: 3.2 kg (7 lb)

    Enclosure material

    UV-stabilized plastic

    Mounting

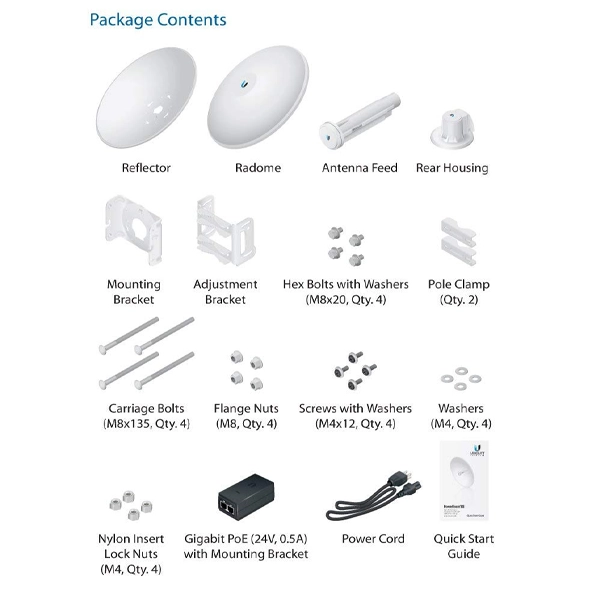

    Pole mount kit (Included)

    Wind loading

    264.6 N at 96 km/h (60 lbf at 60 mph)

    Wind survivability

    96 km/h (60 mph)

    Warranty

    1 Year

    Note

    *Price, feature and specifications are subject to change without notice
