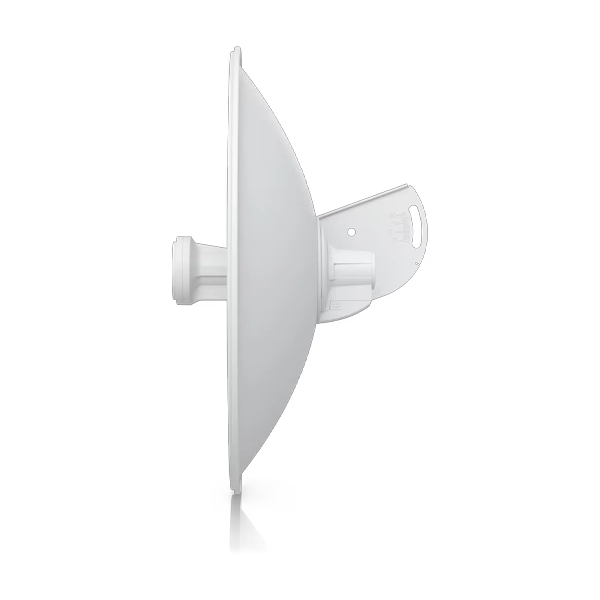

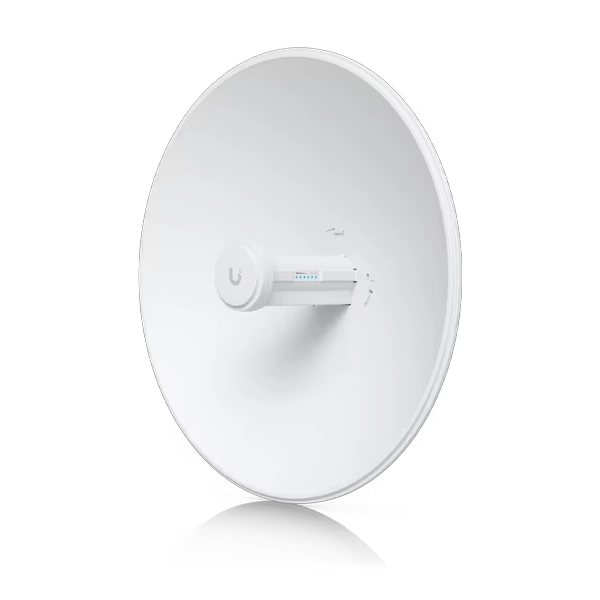

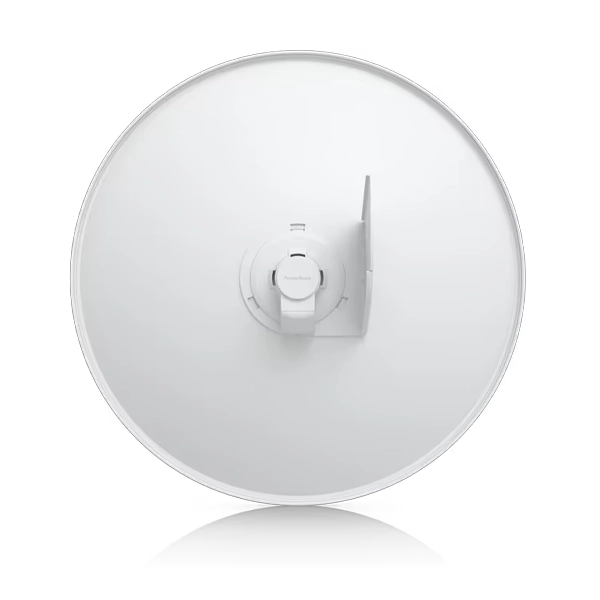

    Ubiquiti PBE-M5-400 PowerBeam M5 Outdoor CPE Wireless Bridge

    SKU:
    PBE-M5-400
    Be first to review
    ₹ 18,999 ~ ₹ 11,899 37 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Ubiquiti PBE-M5-400 PowerBeam M5 Outdoor CPE Wireless Bridge


    FEATURES

    • The Ubiquiti PowerBeam M5 400 (PBE-M5-400) is a reliable outdoor wireless networking device designed to provide long-distance and stable network connectivity. It is an excellent solution for connecting two buildings, offices, warehouses, CCTV systems, farms, remote locations, and other sites where installing traditional network cables may be difficult or expensive.
    • The PowerBeam M5 400 operates on the 5 GHz frequency band and uses Ubiquiti’s airMAX technology to provide efficient and dependable wireless communication. Its powerful 25 dBi directional antenna focuses the wireless signal toward the receiving device, helping create a strong connection over long distances.
    • With support for 150+ Mbps throughput, the PowerBeam M5 400 is suitable for everyday networking applications such as internet sharing, IP surveillance, file transfers, VoIP, remote access, and building-to-building connectivity. It also features a Gigabit Ethernet port, allowing it to connect easily to modern routers, switches, computers, and other network devices.
    • The device uses a 400 mm dish-style directional antenna, which concentrates the wireless signal in the required direction. This focused design helps improve link performance and makes the PowerBeam particularly suitable for point-to-point wireless connections where accurate alignment between two locations is important.
    • Installation is made convenient with its practical mounting and alignment design. The PowerBeam M5 400 is built for outdoor deployment and can be installed on rooftops, poles, towers, and other suitable locations. Its durable construction helps provide reliable operation in challenging outdoor environments.
    • The PowerBeam M5 400 also supports Passive Power over Ethernet (PoE), allowing both power and network data to travel through a single Ethernet cable. This simplifies installation and reduces the need for separate power cables near the outdoor device.
    • Overall, the PBE-M5-400 is a practical choice for users looking for a long-range, reliable, and cost-effective outdoor wireless bridge. It combines a powerful 25 dBi antenna, 5 GHz airMAX technology, Gigabit Ethernet, PoE support, and durable outdoor construction in one professional networking solution.


    SPECIFICATIONS


    Brand

    Ubiquiti

    Model

    PBE-M5-400

    Color

    White

    Hardware


    Networking interface

    (1) GbE RJ45 port

    Power method

    Passive PoE 2-pair (Pairs 4, 5+; 7, 8 Return)

    Power supply

    24V, 0.5A gigabit PoE adapter (Included)

    Supported voltage range

    20–27V DC

    Max. power consumption

    8W

    Max. TX power

    26 dBm

    Gain

    25 dBi

    ESD/EMP protection

    Air/contact: ± 24 kV

    LEDs

    (1) Power, (1) LAN, (4) WLAN

    Signal Strength LEDs

    Software-adjustable to correspond to custom RSSI levels

    RoHS compliance

    Yes

    Salt fog test

    IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5

    Vibration test

    IEC 68-2-6

    Temperature shock test

    IEC 68-2-14

    UV test

    IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4

    Wind-driven rain test

    ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5

    Ambient operating temperature

    -40 to 70° C (-40 to 158° F)

    Ambient operating humidity

    5 to 95% noncondensing

    Certifications

    CE, FCC, IC

    System


    Gain

    22 dBi

    Channel sizes

    5/8/10/20/30/40 MHz

    Polarization

    Dual linear

    Operating Frequency (MHz)


    Worldwide

    5170 - 5875 MHz

    US/CA

    5725 - 5850 MHz

    Dimensions

    420 x 420 x 275 mm (16.5 x 16.5 x 10.8")

    Weight

    1.8 kg (4.8 lb)

    Enclosure material

    UV-stabilized plastic

    Mounting

    Pole mount kit (Included)

    Wind survivability

    200 km/h (125 mph)

    Wind loading

    342.5 N @ 200 km/h (77 lbf @ 125 mph)

    Warranty

    1 Year

    Note
