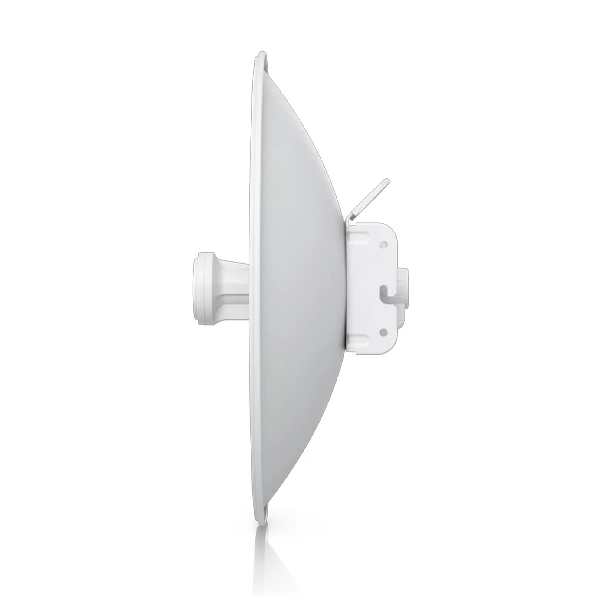

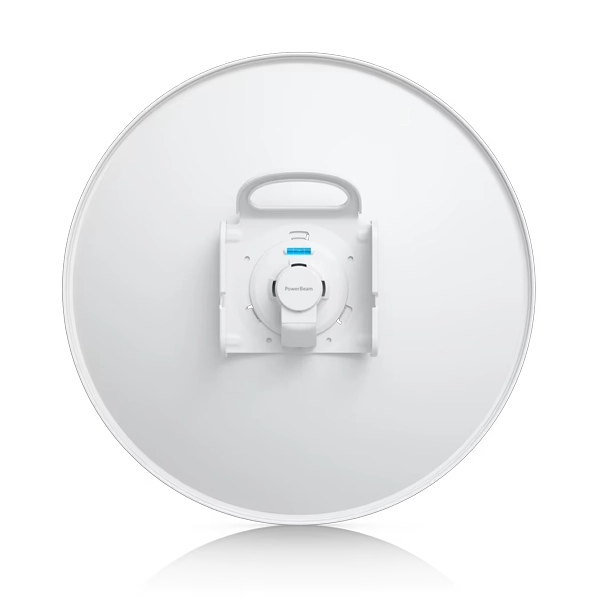

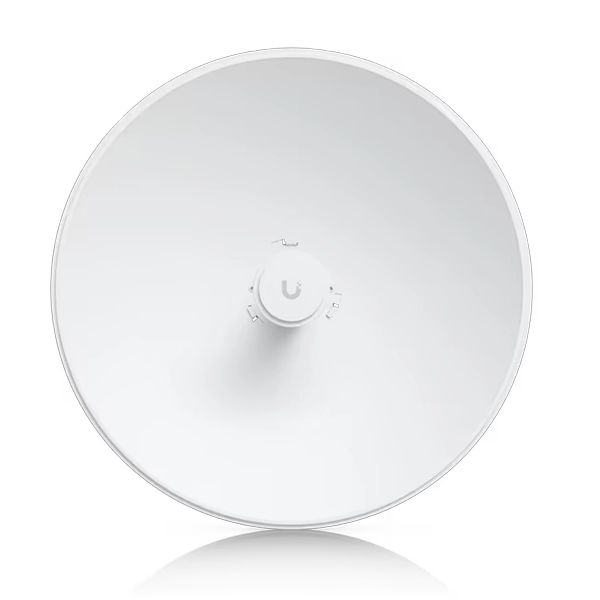

    Ubiquiti PBE-5AC-Gen2 PowerBeam Outdoor CPE Wireless Bridge

    SKU:
    PBE-5AC-GEN2
    Be first to review
    ₹ 19,999 ~ ₹ 13,999 30 OFF
    Save GST upto18% on Business purchase
    Wishlist
    Availability: Out of stock
    Notify me when stock is available

    Shop with confidence

    🔒 Secure & Safe Payments
    ✅ 100% Genuine Products
    🎧 Trusted Customer Support
    🚚 Reliable Delivery

    Similar product

    Ubiquiti PBE-5AC-Gen2 PowerBeam Outdoor CPE Wireless Bridge


    FEATURES

    • The Ubiquiti PowerBeam 5AC Gen2 (PBE-5AC-Gen2) is a high-performance outdoor wireless networking device designed for long-distance, fast, and reliable network connections. It is an ideal choice for connecting two buildings, offices, warehouses, CCTV systems, remote sites, farms, and other locations where installing traditional network cables is difficult or expensive.
    • The PowerBeam 5AC Gen2 operates on the 5 GHz frequency band and uses Ubiquiti’s airMAX AC technology to provide efficient and stable wireless communication. Its powerful 25 dBi directional antenna focuses the wireless signal toward the receiving device, helping create a strong and reliable connection over long distances.
    • The device is well suited for applications such as internet sharing, IP surveillance, VoIP, file transfers, remote networking, and building-to-building connectivity. Its Gigabit Ethernet port provides a fast wired connection to routers, switches, computers, and other network equipment.
    • The PowerBeam features a dish-style directional antenna that concentrates the wireless signal in the desired direction. This focused design helps improve connection quality and can reduce the impact of unwanted interference, making it especially useful for point-to-point wireless links.
    • Installation is straightforward with its practical mounting and alignment design. The device is built specifically for outdoor use and can be installed on rooftops, poles, towers, and other suitable outdoor locations. Its durable construction helps it perform reliably in challenging environmental conditions.
    • The PowerBeam 5AC Gen2 supports Passive Power over Ethernet (PoE), allowing both power and network data to travel through a single Ethernet cable. This makes installation cleaner, simpler, and more convenient.
    • Overall, the PBE-5AC-Gen2 is an excellent solution for users who need a long-range, high-speed, stable, and dependable outdoor wireless bridge. It combines a powerful 25 dBi antenna, 5 GHz technology, airMAX AC performance, Gigabit Ethernet, PoE support, and rugged outdoor construction in one professional networking solution.


    SPECIFICATIONS


    Brand

    Ubiquiti

    Model

    PBE-5AC-GEN2

    Color

    White

    Hardware


    Networking interface

    (1) GbE RJ45 port

    Power method

    Passive PoE 2-pair (4, 5+; 7, 8 return)

    Max. power consumption

    8.5W

    Supported voltage range

    20—27V DC

    Power supply

    24V, 0.5A gigabit PoE adapter (Included)

    ESD/EMP protection

    Air/contact: ± 24 kV

    LEDs

    (1) Power, (1) LAN, (4) WLAN

    Salt fog test

    IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5

    Vibration test

    IEC 68-2-6

    Temperature shock test

    IEC 68-2-14

    UV test

    IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4

    Wind-driven rain test

    ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5

    Ambient operating temperature

    -40 to 70 C (-40 to 158 F)

    Ambient operating humidity

    5 to 95% noncondensing

    Certifications

    CE, FCC, IC, RoHS

    System


    Gain

    25 dBi

    Channel sizes

    PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz

    Operating Frequency (MHz)


    Worldwide

    5150-5875 MHz

    USA U-NII-1 U-NII-2A U-NII-2C U-NII-3

    5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz

    Management Radio (MHz)


    Worldwide

    2412 - 2472 MHz

    US/CA

    2412 - 2462 MHz

    Dimensions

    420 x 420 x 230 mm (16.5 x 16.5 x 9.1")

    Weight

    2.2 kg (4.9 lb)

    Enclosure material

    UV-stabilized plastic, powder-coated SPCC

    Wind loading

    380 N at 200 km/h (85.4 lbf at 125 mph)

    Wind survivability

    200 km/h (125 mph)

    Mounting

    Pole mount kit (Included)

    Warranty

    1 Year

    Note

    *Price, feature and specifications are subject to change without notice
