Ubiquiti PBE-5AC-620 PowerBeam 5AC 620 5GHz 29dBi Outdoor CPE Antenna

No reviews yet |Write a review
SKU: PBE-5AC-620  |  Brand: Ubiquiti
₹ 30,999 ₹ 38,999 21% OFF ● Out of Stock
Save GST upto 18% on Business purchase
Check delivery
Enter pincode to see delivery date, COD availability and shipping charges.

Secure Payments
100% Genuine
Fast Delivery
Expert Support

Ubiquiti PBE-5AC-620 PowerBeam 5AC 620 5GHz 29dBi Outdoor CPE Antenna


FEATURES

  • The Ubiquiti PowerBeam 5AC 620 (PBE-5AC-620) is a powerful outdoor wireless networking device designed for long-distance, high-speed internet and network connections. It is an excellent choice for connecting two buildings, offices, warehouses, remote sites, CCTV systems, or other locations where installing physical network cables is difficult or expensive.
  • The PowerBeam 5AC 620 operates on the 5 GHz frequency band and uses Ubiquiti’s airMAX AC technology to provide fast and reliable wireless communication. Its large 29 dBi directional antenna focuses the wireless signal toward the receiving device, helping achieve strong and stable connections over long distances.
  • With support for high-speed wireless networking, the PowerBeam is suitable for applications that require reliable data transfer, such as internet sharing, IP surveillance, VoIP, file transfers, and building-to-building networking. It includes a Gigabit Ethernet port, allowing fast connection to modern routers, switches, computers, and other network equipment.

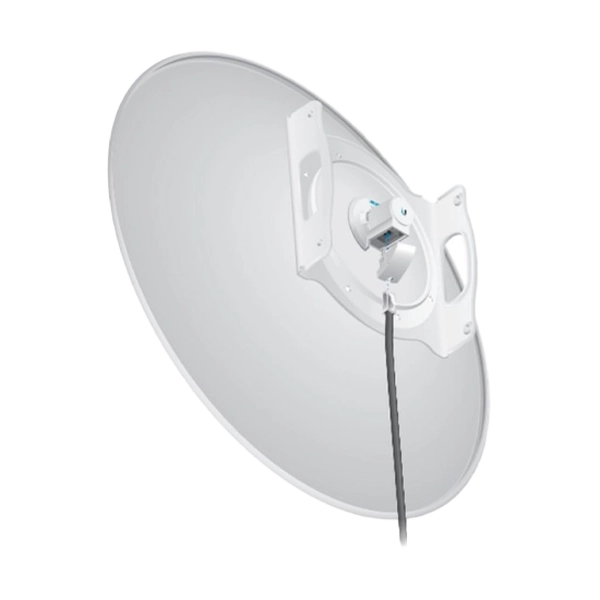

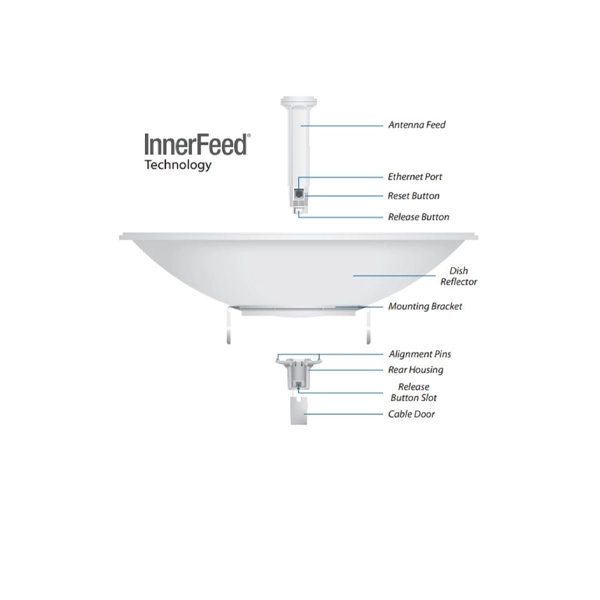

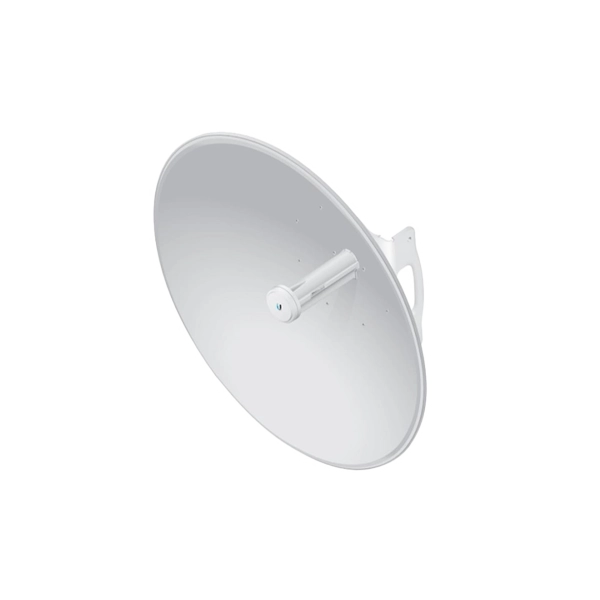

  • The device features a large dish-style directional antenna, which helps concentrate the wireless signal in the required direction and improves resistance to unwanted interference. This makes it particularly suitable for point-to-point wireless links where a stable and focused connection is required.
  • Installation is made easier with its integrated mounting system and adjustable design. The PowerBeam is built for outdoor deployment and is designed to withstand demanding weather conditions. Its durable construction makes it suitable for installation on rooftops, towers, poles, and other outdoor locations.
  • The PowerBeam 5AC 620 also supports Passive Power over Ethernet (PoE), allowing power and network data to travel through a single Ethernet cable. This simplifies installation and reduces the amount of cabling required.
  • Overall, the PBE-5AC-620 is an excellent choice for users looking for a long-range, high-capacity, reliable, and professional wireless bridge. It combines a powerful 29 dBi directional antenna, airMAX AC technology, Gigabit Ethernet, PoE support, and rugged outdoor construction in one dependable networking solution.


SPECIFICATIONS


Brand

Ubiquiti

Model

PBE-5AC-620

Color

White

Hardware


Networking interface

(1) GbE RJ45 port

Power method

Passive PoE 2-pair (4, 5+; 7, 8 return)

Power supply

24V, 0.5A gigabit PoE adapter (Included)

Supported voltage range

20-27V DC

Max. power consumption

8.5W

ESD/EMP protection

Air/contact: ± 24 kV

LEDs

(1) Power, (1) LAN, (4) WLAN

Signal strength LEDs

Software-adjustable to correspond to custom RSSI levels

Salt fog test

IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5

Vibration test

IEC 68-2-6

Temperature shock test

IEC 68-2-14

UV test

IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4

Wind-driven rain test

ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5

Ambient operating temperature

-40 to 70° C (-40 to 158° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE, RoHS

System


Gain

29 dBi

Max. VSWR

1.6:1

Channel sizes

PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz

Polarization

Dual linear

Operating Frequency (Mhz)


Worldwide

5150 - 5875 MHz

USA U-NII-1 U-NII-2A U-NII-2C U-NII-3

5150 – 5250 MHz 5250 – 5350 MHz 5470 – 5725 MHz 5725 – 5850 MHz

Mechanical


Dimensions

620 x 620 x 386 mm (24.4 x 24.4 x 15.2")

Weight

6.4 kg (14.1 lb)

Enclosure material

Outdoor UV-stabilized plastic

Mounting

Pole mount kit (Included)

Wind loading

Without radome: 1510 N at 200 km/h (340 lbf at 125 mph) With radome: 1830 N at 200 km/h (411 lbf at 125 mph)

Wind survivability

200 km/h (125 mph)

Warranty

1 Year

Note

*Price, feature and specifications are subject to change without notice
