High-Speed 10Gbps Performance

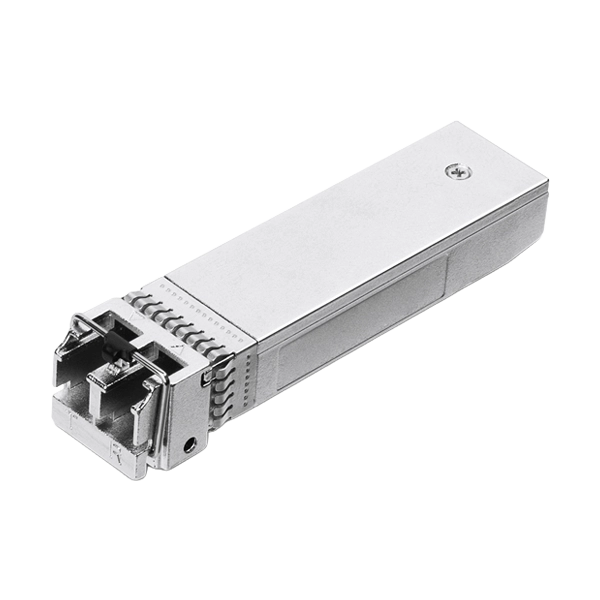

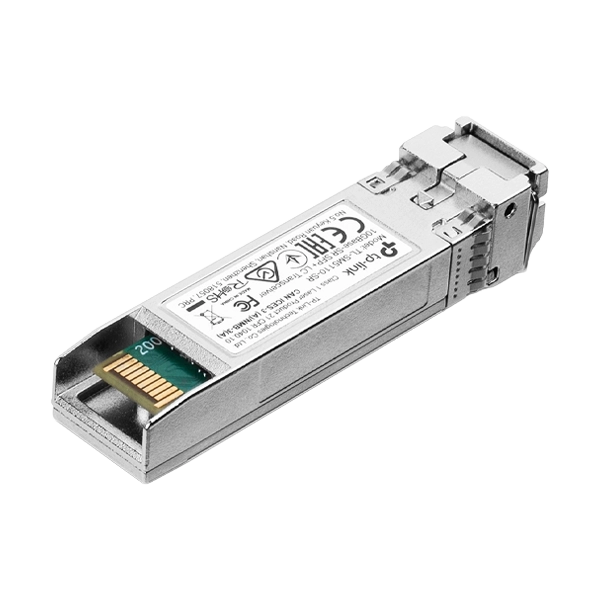

The TL-SM5110-SR 10G SFP+ Transceiver delivers reliable 10Gbps Ethernet connectivity using an 850nm wavelength, ensuring fast and efficient data transmission for high-performance networking environments. It is designed to handle bandwidth-intensive applications, making it an excellent choice for enterprise networks, server rooms, and modern data centers that require consistent speed and low-latency communication.
Flexible Long-Distance Fiber Connectivity
Engineered for multi-mode fiber (MMF) applications, the TL-SM5110-SR supports transmission distances of up to 300 meters with 50/125µm fiber optic cables and up to 33 meters with 62.5/125µm fiber cables. This versatile reach makes it suitable for various network infrastructures, allowing businesses to deploy stable, high-speed fiber connections across different environments with ease.
Convenient Hot-Pluggable Installation
Featuring a hot-pluggable design, the TL-SM5110-SR enables users to install or replace the transceiver without shutting down connected network equipment. This convenient functionality helps simplify maintenance, network expansion, and hardware upgrades while significantly reducing downtime and ensuring uninterrupted network operations.
Wide Device Compatibility
The TL-SM5110-SR is compatible with a broad range of networking equipment equipped with 10G SFP+ ports, including switches, routers, and servers. It fully complies with the SFP+ Multi-Source Agreement (MSA) and supports Digital Diagnostic Monitoring (DDM), ensuring dependable interoperability, real-time performance monitoring, and consistent operation across compatible networking devices.
Easy Plug-and-Play Deployment
Designed for quick and hassle-free installation, the TL-SM5110-SR features a plug-and-play configuration that eliminates complex setup procedures. Its LC/UPC optical connector provides a secure and reliable fiber connection, helping maintain stable network performance while reducing installation time. Whether upgrading an existing network or deploying a new infrastructure, this transceiver offers an efficient and dependable solution for high-speed fiber networking.
Brand | TP-Link |
Model | SM5110-SR |
Product Type | 10GBASE-SR SFP+ LC Transceiver |
Form Factor | SFP+ |
Ethernet Standard | 10GBASE-SR |
Data Rate | 10 Gbps |
Fiber Type | Multi-Mode Fiber (MMF) |
Wavelength | 850 nm |
Connector | LC Duplex |
Maximum Transmission Distance | 300 m (50/125μm OM3), 33 m (62.5/125μm) |
Duplex Mode | Full Duplex |
Standards | IEEE 802.3ae, TCP/IP, SFF-8472, SFP+ MSA |
Digital Diagnostic Monitoring (DDM) | Yes |
Hot Swappable | Yes |
Supply Voltage | 3.3 V |
Maximum Laser Output Power | 0.794 mW (-1 dBm) |
Compatible Devices | TP-Link Omada & JetStream switches with 10G SFP+ ports |
Operating Temperature | 0°C to 70°C |
Storage Temperature | -40°C to 85°C |
Operating Humidity | 10%–90% RH (Non-condensing) |
Storage Humidity | 5%–90% RH (Non-condensing) |
Certifications | CE, FCC |
Warranty | 3 Year |
Note | * Features, Price, Specifications are subject to change without notice. |
