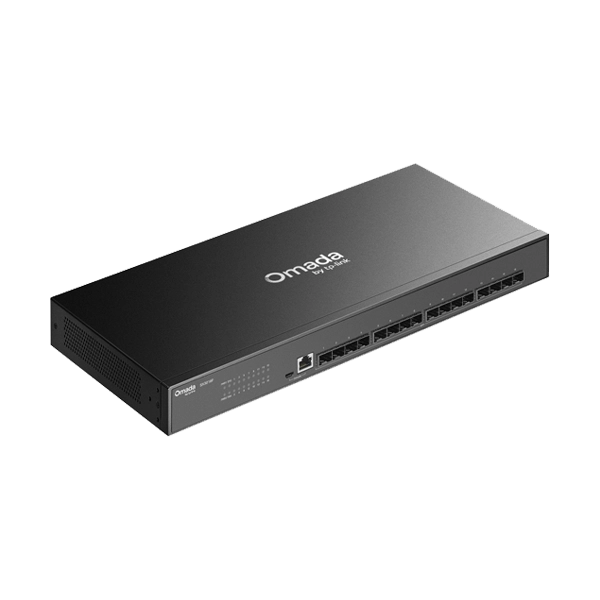

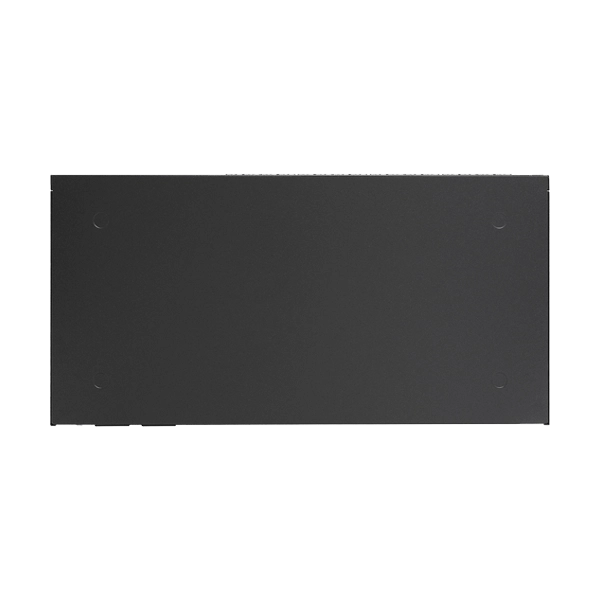

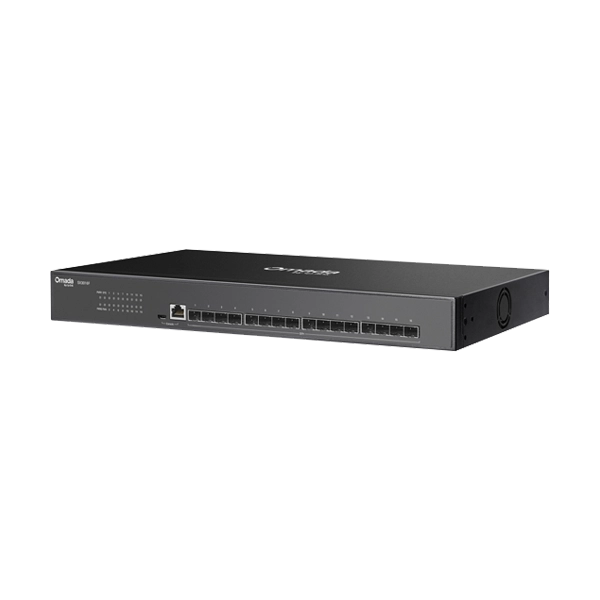

TP-Link Omada SX3016F 16-Port 10GE SFP+ L2+ Managed Aggregation Switch

Brand

TP-Link

Model

SX3016F

Color

Black

HARDWARE FEATURES

Interface

16× 10G SFP+ Slots

1× RJ45 Console Port

1× Micro-USB Console Port

Fan Quantity

1

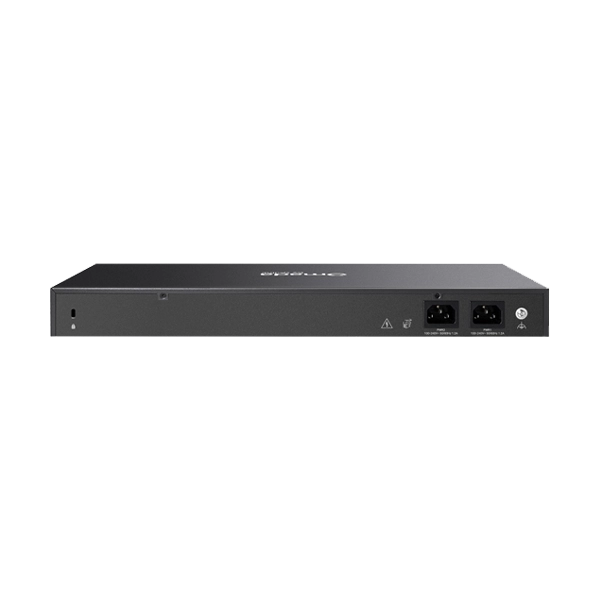

Power Supply

1+1 Redundant Power Supply (Internal Fixed)

100-240 V~ 50/60 Hz

Dimensions ( W x D x H )

17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

Mounting

Rack Mountable

Max. Power Consumption

32.3 W max @ 220V/50Hz 25 °C

32.7 W max @ 110V/60Hz 25 °C

Max. Heat Dissipation

110 BTU/hr (220 V/50 Hz)

111.18 BTU/hr (110 V/60 Hz)

PERFORMANCE

Packet Buffer Memory

24 Mbit

Jumbo Frame

9 KB

Switching Capacity

320 Gbps

Packet Forwarding Rate

238.08 Mpps

MAC Address Table

32 K

SOFTWARE FEATURES

Quality of Service

8 priority queues

802.1p CoS/DSCP priority

Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

Bandwidth Control: Port/Flow-based Rating Limiting

Smoother Performance

Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

L2 and L2+ Features

128 IP Interfaces: Support IPv4/IPv6 Interface

Static Routing: 48 IPv4/IPv6 Static Routes

Static ARP: 128 static entries

512 ARP Entries

Proxy ARP

Gratuitous ARP

DHCP Server

DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay

DHCP L2 Relay

Link Aggregation

Spanning Tree Protocol

Loopback Detection

802.3x Flow Control

Mirroring

L2 Multicast

Supports 4,000 (IPv4, IPv6) IGMP groups

IGMP Snooping

IGMP Authentication

Multicast VLAN Registration (MVR)

MLD Snooping

Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features

Automatic Device Discovery†

Batch Configuration†

Batch Firmware Upgrading†

Intelligent Network Monitoring†

Abnormal Event Warnings†

Unified Configuration†

Reboot Schedule†

ISP Features*:

L2PT (Layer 2 Protocol Tunneling)

Device Link Detect Protocol (DLDP)

PPPoE ID Insertion

ERPS

802.3ah Ethernet Link OAM

DDM

sFlow

VLAN

VLAN Group (802.1q VLAN): Max 4K VLAN Groups

802.1Q Tagged VLAN

MAC VLAN: 30 Entries

Protocol VLAN: Protocol Template 16, Protocol VLAN 12

Private VLAN

GVRP

VLAN VPN (QinQ): Port-Based QinQ, Selective QinQ

Voice VLAN

Access Control List

Time-based ACL

MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type

IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS

Combined ACL

Packet Content ACL

IPv6 ACL

Policy: Mirroring, Redirect, Rate Limit, QoS Remark

ACL applies to Port/VLAN

Security

IP-MAC-Port Binding

512 Entries

DHCP Snooping

ARP Inspection

IPv4 Source Guard

Pv6-MAC-Port Binding

512 Entries

DHCPv6 Snooping

ND Detection

ND Snooping

Pv6 Source Guard

DoS Defend

Static/Dynamic Port Security: Up to 64 MAC addresses per port

Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode

802.1X

Port base authentication

MAC-based authentication

VLAN Assignment

MAB

Guest VLAN

Radius authentication and accountability support

AAA (including TACACS+)

Port Isolation

Secure web management through HTTPS with SSLv3/TLS 1.2

Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IP/Port/MAC-based access control

IPv6

IPv6 Dual IPv4/IPv6

Multicast Listener Discovery (MLD) Snooping

IPv6 ACL

IPv6 Interface

Static IPv6 Routing

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs

MIB II (RFC1213)

Interface MIB (RFC2233)

Ethernet Interface MIB (RFC1643)

Bridge MIB (RFC1493)

P/Q-Bridge MIB (RFC2674)

RMON MIB (RFC2819)

RMON2 MIB (RFC2021)

Radius Accounting Client MIB (RFC2620)

Radius Authentication Client MIB (RFC2618)

Remote Ping, Traceroute MIB (RFC2925)

Support TP-Link private MIB

Warranty

5 Year

Note

* Features, Price, Specifications are subject to change without notice.
