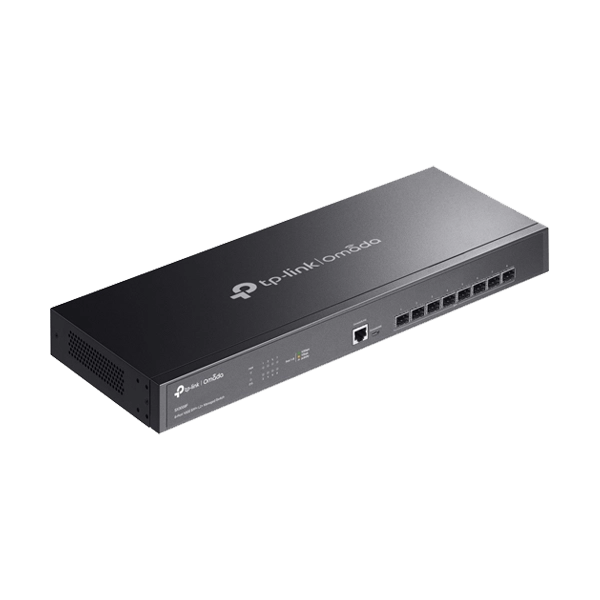

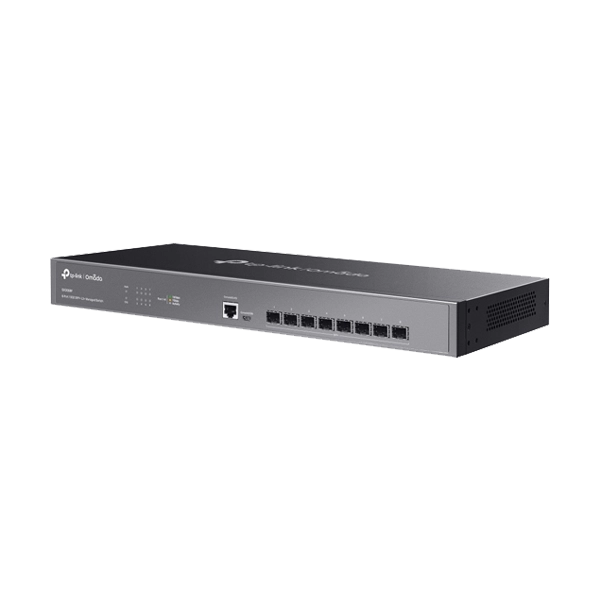

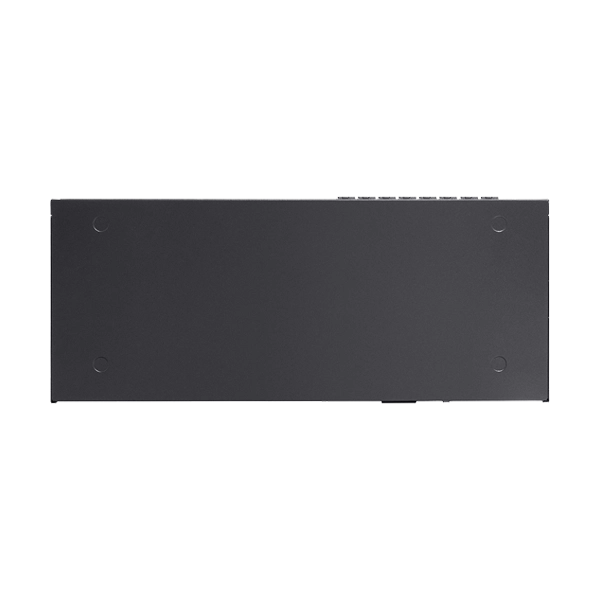

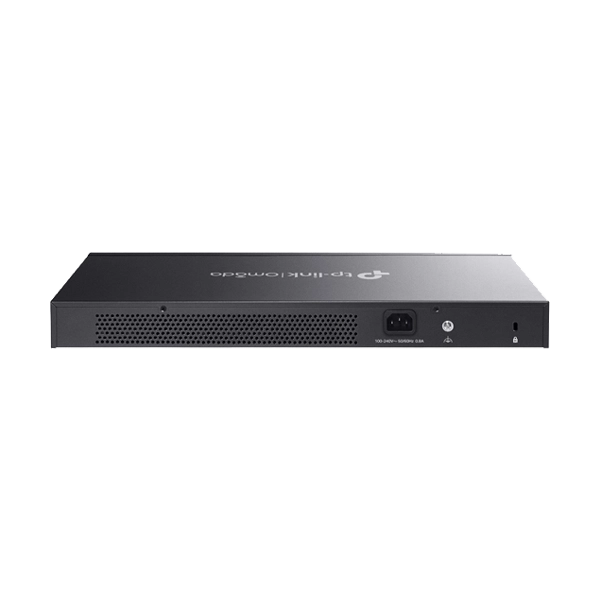

TP-Link Omada SX3008F 8-Port 10GE SFP+ L2+ Managed Aggregation Switch

Brand

TP-Link

Model

SX3008F

Color

Black

HARDWARE FEATURES

Interface

8× 10GE SFP+ Slots

1× RJ45 Console Port

1× Micro-USB Console Port

Fan Quantity

Fanless

Power Supply

100-240 V AC~50/60 Hz

Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Mounting

Rack Mountable

Max Power Consumption

15.46 W (220 V / 50 Hz)

Max Heat Dissipation

52.75 BTU/hr (220 V / 50 Hz)

PERFORMANCE

Switching Capacity

160 Gbps

Packet Forwarding Rate

119.04 Mpps

MAC Address Table

32 K

Packet Buffer Memory

16 Mbit

Jumbo Frame

9 KB

SOFTWARE FEATURES

Quality of Service

8 priority queues

802.1p CoS/DSCP priority

Queue scheduling

SP (Strict Priority)

WRR (Weighted Round Robin)

SP+WRR

Bandwidth Control

Port/Flow based Rating Limiting

Smoother Performance

Action for Flows

Mirror (to supported interface)

Redirect (to supported interface)

Rate Limit

QoS Remark

L3 Features

16 IPv4/IPv6 Interfaces

Static Routing

48 static routes

Static ARP

128 Static Entries

Proxy ARP

Gratuitous ARP

DHCP Server

DHCP Relay

DHCP Interface Relay

DHCP VLAN Relay

DHCP L2 Relay

L2 and L2+ Features

Link Aggregation

static link aggregation

802.3ad LACP

Up to 8 aggregation groups, containing 8 ports per group

Spanning Tree Protocol

802.1d STP

802.1w RSTP

802.1s MSTP

STP Security: TC Protect, BPDU Filter, Root Protect

Loopback Detection

Port based

VLAN based

Flow Control

802.3x Flow Control

HOL Blocking Prevention

Mirroring

Port Mirroring

CPU Mirroring

One-to-One

Many-to-One

Tx/Rx/Both

L2 Multicast

IGMP Snooping

IGMP v1/v2/v3 Snooping

Fast Leave

IGMP Snooping Querier

IGMP Authentication

IGMP Authentication

MLD Snooping

MLD v1/v2 Snooping

Fast Leave

MLD Snooping Querier

Static Group Config

Limited IP Multicast

MVR

Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features

Automatic Device Discovery

Batch Configuration

Batch Firmware Upgrading

Intelligent Network Monitoring

Abnormal Event Warnings

Unified Configuration

Reboot Schedule

VLAN

VLAN Group

Max 4K VLAN Groups

802.1Q Tagged VLAN

MAC VLAN: 7 Entries

Protocol VLAN: Protocol Template 16, Protocol VLAN 16

Private VLAN

GVRP

VLAN VPN (QinQ)

Port-Based QinQ

Selective QinQ

Voice VLAN

Access Control List

Time-based ACL

MAC ACL

Source MAC

Destination MAC

VLAN ID

User Priority

Ether Type

IP ACL

Source IP

Destination IP

Fragment

IP Protocol

TCP Flag

TCP/UDP Port

- DSCP/IP TOS

User Priority

Combined ACL

Packet Content ACL

IPv6 ACL

Policy

Mirroring

Redirect

Rate Limit

QoS Remark

ACL apply to Port/VLAN

Security

IP-MAC-Port Binding

512 Entries

DHCP Snooping

ARP Inspection

IPv4 Source Guard: 100 Entries

IPv6-MAC-Port Binding

512 Entries

DHCPv6 Snooping

ND Detection

IPv6 Source Guard: 100 Entries

DoS Defend

Static/Dynamic Port Security

Up to 64 MAC addresses per port

Broadcast/Multicast/Unicast Storm Control

kbps/ratio control mode

802.1X

Port base authentication

Mac base authentication

VLAN Assignment

MAB

Guest VLAN

Support Radius authentication andaccountability

AAA (including TACACS+)

Port Isolation

Secure web management through HTTPS with SSLv3/TLS 1.2

Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IP/Port/MAC based access control

IPv6

IPv6 Dual IPv4/IPv6

Multicast Listener Discovery (MLD) Snooping

IPv6 ACL

IPv6 Interface

Static IPv6 Routing

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 applications

DHCPv6 Client

Ping6

Tracert6

Telnet (v6)

IPv6 SNMP

IPv6 SSH

IPv6 SSL

Http/Https

IPv6 TFTP

MIBs

MIB II (RFC1213)

Interface MIB (RFC2233)

Ethernet Interface MIB (RFC1643)

Bridge MIB (RFC1493)

P/Q-Bridge MIB (RFC2674)

RMON MIB (RFC2819)

RMON2 MIB (RFC2021)

Radius Accounting Client MIB (RFC2620)

Radius Authentication Client MIB (RFC2618)

Remote Ping, Traceroute MIB (RFC2925)

Support TP-Link private MIB

Warranty

5 Year

Note

* Features, Price, Specifications are subject to change without notice.
