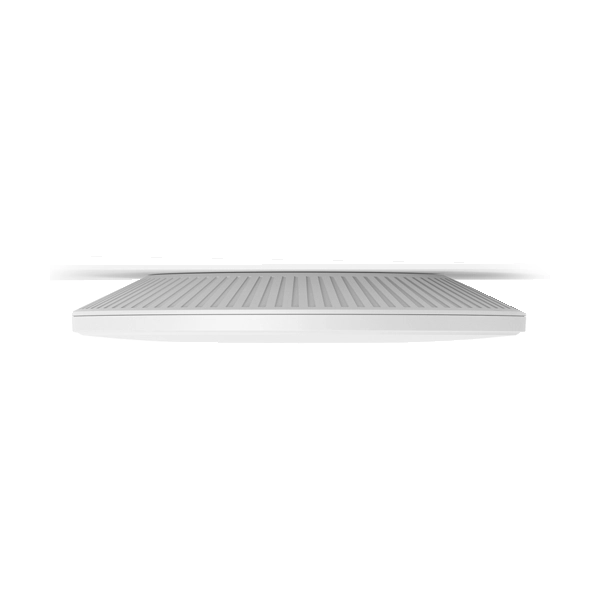

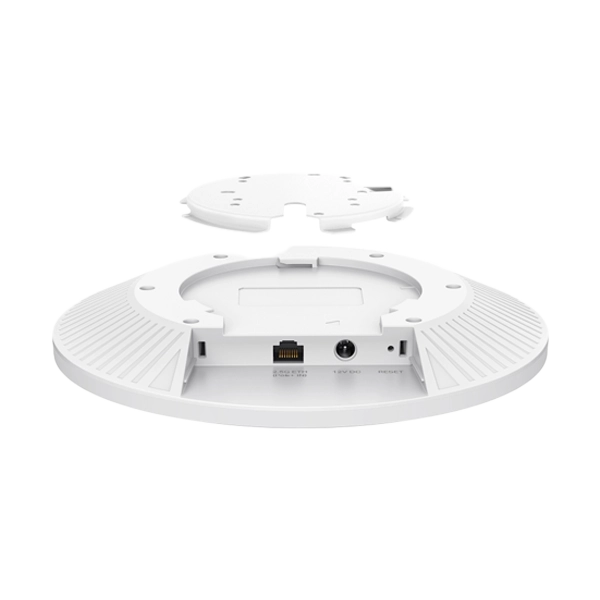

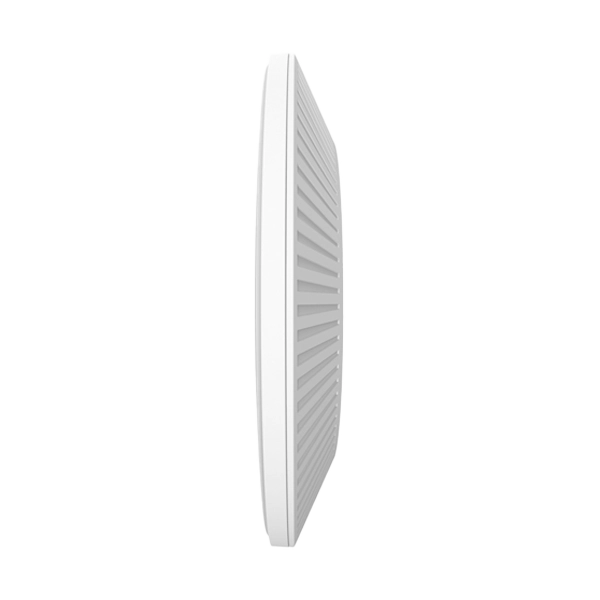

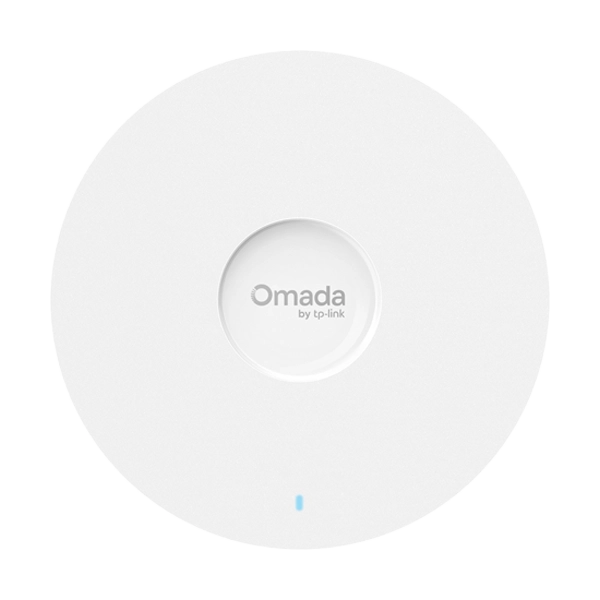

TP-Link Omada EAP670 AX5400 Wireless Ceiling Mount WiFi 6 Access Point

Brand

TP-Link

Model

EAP670

Color

White

Interface

1× 2.5 Gigabit RJ45 Port

Button

Reset

Power Supply

802.3at PoE

12 V / 2 A DC (Power Adapter included)

Max. Power Consumption

EU: 20.8 W

US: 22.3 W

Dimensions ( W x D x H )

8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)

Antenna

Internal Omni

2.4 GHz: 2× 4 dBi

5 GHz: 4× 5 dBi

Bluetooth

V5.2

Mounting

Ceiling / Wall / Junction Box Mounting (Kits Included)

WIRELESS FEATURES

Coverage

1500 ft² (140㎡)*

Concurrent Clients

250+**

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 4804 Mbps

2.4 GHz: Up to 574 Mbps

Wireless Functions

1024-QAM

4× Longer OFDM Symbol

OFDMA

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

MU-MIMO (5G: 4x4 DL/UL MU-MIMO)

HE160 (160 MHz Bandwidth)‡

Seamless Roaming(802.11k/v/r)△

Omada Mesh△

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication△

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

CE:

7-20 dBm(2.4 GHz, EIRP)

7-23 dBm(5 GHz, U-NII-1 & U-NII-2A, EIRP)

7-30 dBm(5 GHz, U-NII-2C, EIRP)

FCC:

4-22 dBm (2.4 GHz)

4-22 dBm (5 GHz, U-NII-1 & U-NII-3)

Management Features

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller

Omada Hardware Controller

Omada Software Controller

Cloud Access

Yes. Require the use of an Omada controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Require the use of Omada Cloud-Based Controller.

OTHERS

Certification

CE, FCC, RoHS

Package Content

EAP670

Power Adapter

Ceiling/Wal/Junctionl Mounting Kits

Installation Guide

Cable Compartment Cover

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

Operating Temperature: 0–40 ℃ (32–104 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing

Warranty

5 Year

Note

* Features, Price, Specifications are subject to change without notice.
