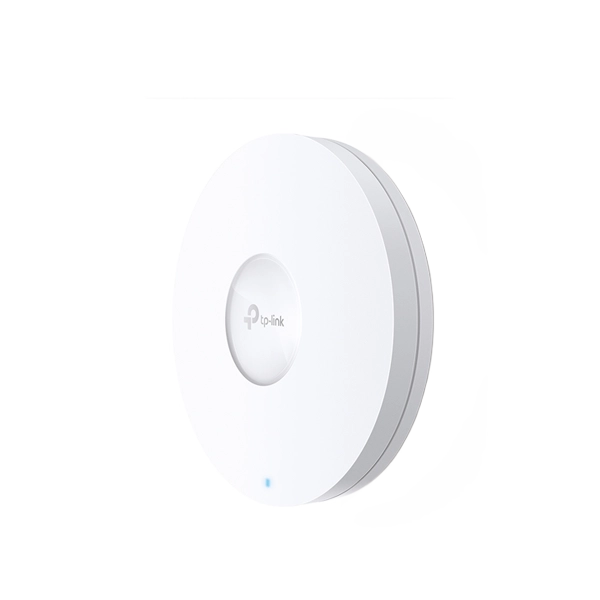

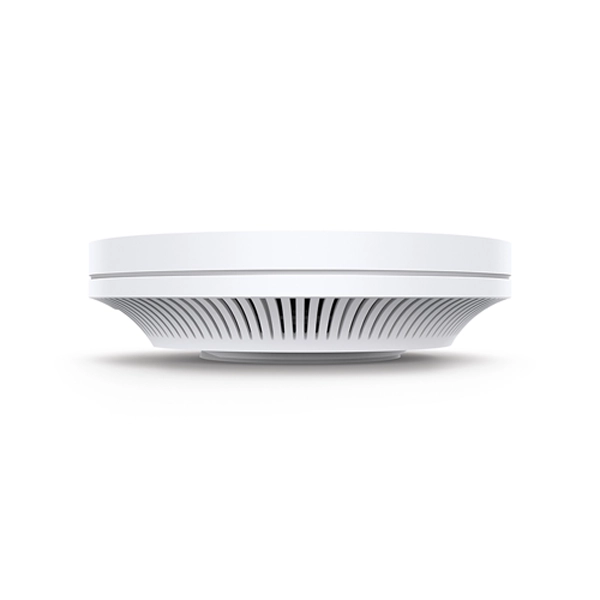

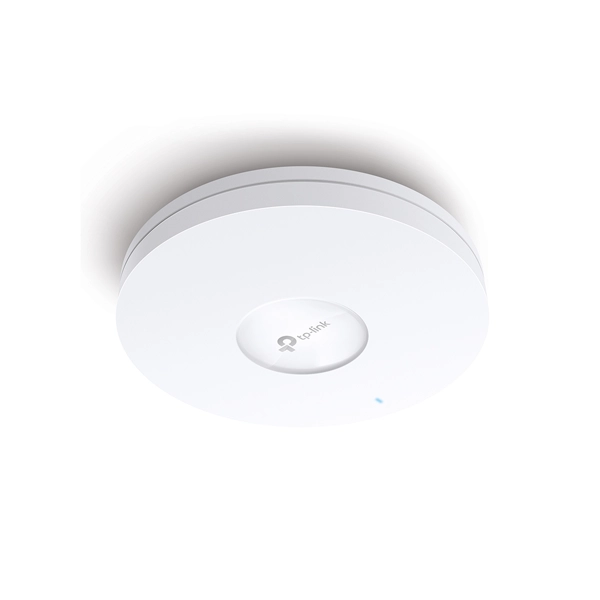

TP-Link Omada EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point

No reviews yet |Write a review
SKU: EAP660 HD  |  Brand: TP-Link
₹ 20,599 ₹ 29,999 31% OFF ● Out of Stock
Save GST upto 18% on Business purchase
Check delivery
Enter pincode to see delivery date, COD availability and shipping charges.

Secure Payments
100% Genuine
Fast Delivery
Expert Support

TP-Link Omada EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point


FEATURES

  • The TP-Link Omada EAP660 HD AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point is a professional-grade networking solution designed for businesses, offices, hotels, schools, and other high-density environments. Built with advanced Wi-Fi 6 technology, it delivers faster speeds, greater network capacity, and improved efficiency compared to previous wireless standards.
  • The EAP660 HD provides AX3600 dual-band performance, offering high-speed wireless connectivity across both 2.4GHz and 5GHz bands. It is designed to handle a large number of connected devices simultaneously, making it ideal for environments where many users require stable and reliable internet access. Wi-Fi 6 features such as OFDMA and MU-MIMO technology help reduce network congestion and improve overall performance.
  • Equipped with a 2.5 Gigabit Ethernet port, this access point provides high-speed wired connectivity to support modern network infrastructure. The PoE+ capability allows the device to receive both power and data through a single Ethernet cable, making installation easier and providing flexible placement options without requiring a nearby power outlet.
  • The sleek ceiling-mount design allows the EAP660 HD to blend naturally into professional spaces while providing wide wireless coverage. Its discreet appearance makes it suitable for offices, hospitality areas, educational institutions, and commercial environments.
  • The access point works with the TP-Link Omada SDN platform, enabling centralized management through cloud-based tools. Network administrators can easily configure settings, monitor network performance, manage connected users, and control multiple Omada devices from one convenient interface.
  • Advanced security features help protect the network and connected devices, while intelligent optimization ensures consistent wireless performance. The device is built to provide dependable connectivity for demanding applications such as video conferencing, cloud services, online collaboration, streaming, and high-speed data transfer.
  • With its combination of Wi-Fi 6 performance, multi-gigabit connectivity, professional management features, and reliable operation, the TP-Link Omada EAP660 HD is an excellent choice for organizations looking to create a fast, secure, and future-ready wireless network.


SPECIFICATIONS


Brand

TP-Link

Model

EAP660 HD

Color

White

Interface

1× 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)

Button

Reset

Power Supply

802.3at PoE


12 V DC

Max. Power Consumption

EU: 18.5 W


US: 21.5 W

Dimensions ( W x D x H )

9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)

Antenna

Internal Omni


2.4 GHz: 4× 4 dBi


5 GHz: 4× 5 dBi

Mounting

Ceiling /Wall Mounting (Kits included)

WIRELESS FEATURES


Concurrent Clients

500+***

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 2402 Mbps


2.4 GHz: Up to 1148 Mbps

Wireless Functions

1024-QAM


4× Longer OFDM Symbol


OFDMA


Multiple SSIDs (Up to 16 SSIDs, 8 for each band)


Enable/Disable Wireless Radio


Automatic Channel Assignment


Transmit Power Control (Adjust Transmit Power on dBm)


QoS(WMM)


MU-MIMO


Seamless Roaming△


Omada Mesh△


Band Steering


Load Balance


Airtime Fairness


Beamforming


Rate Limit


Reboot Schedule


Wireless Schedule


Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication△


Access Control


Wireless Mac Address Filtering


Wireless Isolation Between Clients


SSID to VLAN Mapping


Rogue AP Detection


802.1X Support


WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

CE:


<20 dBm(2.4 GHz, EIRP)


<23 dBm(5 GHz, EIRP)


FCC:


<26 dBm (2.4 GHz)


<26 dBm (5 GHz)

Management Features


Omada App

Yes

Centralized Management

Omada Cloud-Based Controller


Omada Hardware Controller (OC300)


Omada Hardware Controller (OC200)


Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS


Certification

CE, FCC, RoHS

Package Content

EAP660 HD


Power Adapter


Ceiling/Wall Mounting Kits


Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

Operating Temperature: 0–40 ℃ (32–104 ℉)


Storage Temperature: -40–70 ℃ (-40–158 ℉)


Operating Humidity: 10–90% RH non-condensing


Storage Humidity: 5–90% RH non-condensing

Warranty

5 Year

Note
