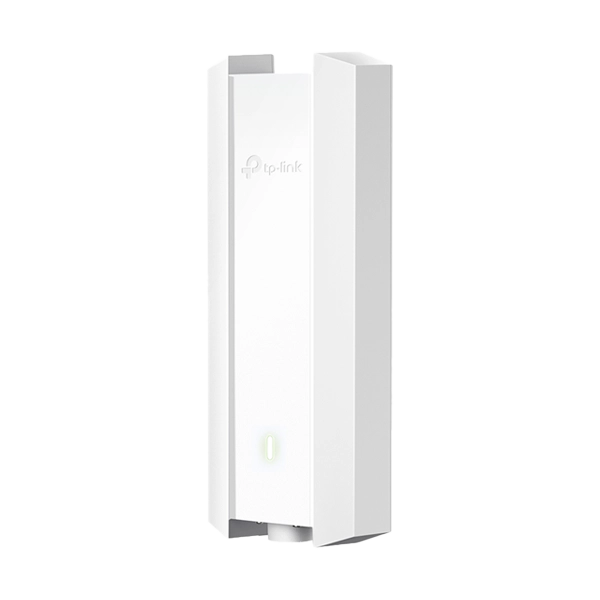

TP-Link Omada EAP650 Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point

Brand

TP-Link

Model

EAP650-Outdoor

Color

White

HARDWARE FEATURES

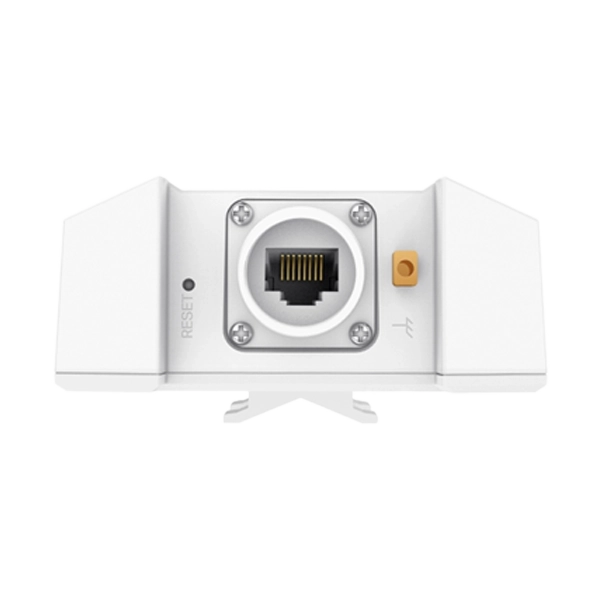

Interface

1× Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)

Button

Reset

Power Supply

802.3at PoE

48V Passive PoE (PoE Adapter Included)

Max. Power Consumption

EU: 12.5W (802.3at PoE or Passive PoE)

US: 14.7W (802.3at PoE or Passive PoE)

Dimensions ( W x D x H )

80.4×106.5×56.8 mm (without antenna & mounting kit)

Antenna

2.4 GHz: 2× 4 dBi

5 GHz: 2× 5 dBi

Weatherproof Enclosure

IP67

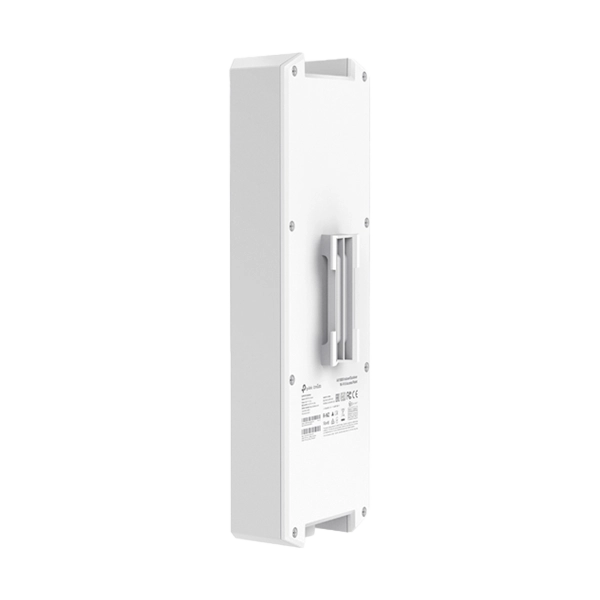

Mounting

Pole/Wall Mounting (Kits included)

WIRELESS FEATURES

Concurrent Clients

250+6

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz, 5 GHz

Signal Rate

802.11ax: 8 Mbps to 2402 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80/160)

802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to

VHT20/40/80)

802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Wireless Functions

1024-QAM

4× Longer OFDM Symbol

OFDMA

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS (WMM)

MU-MIMO

Omada Mesh3

Seamless Roaming3

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication3

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

CE: <20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)

FCC: <25 dBm (2.4 GHz), <25 dBm(5 GHz)

Management Features

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access

Yes, through

Omada Cloud-Based Controller

OC300

OC200

Omada Software Controller

Email Alerts

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c

System Logging Local/Remote Syslog

Yes

SSH

Yes

Web-based Management

Yes

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller

OTHERS

Certification

CE, FCC, RoHS

Package Content

Access Point EAP650-Outdoor

Passive PoE Adapter

Power Cord

Mounting Kits

Installation Guide

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

Operating Temperature: -30–70 ℃ (-22–158 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing

Warranty

3 Year

Note

*Price, feature and specifications are subject to change without notice
