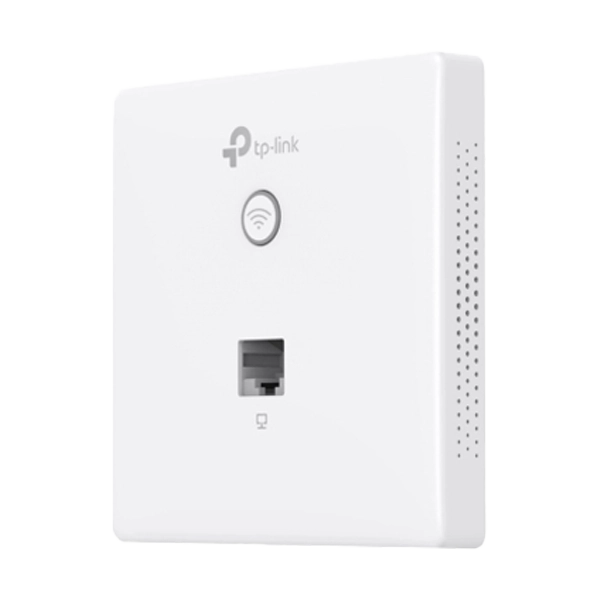

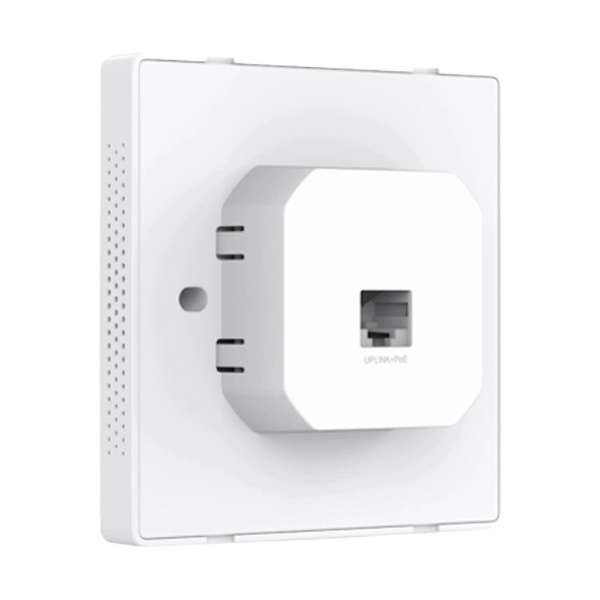

TP-Link Omada EAP230-Wall AC1200 Wireless MU-MIMO Gigabit Wall-Plate Access Point

FEATURES

The TP-Link Omada EAP230-Wall is a compact and stylish AC1200 wall-mounted wireless access point designed to provide fast, reliable, and secure Wi-Fi for hotels, offices, apartments, dormitories, classrooms, and small business environments. Its wall-plate design fits neatly into standard wall outlets, helping maintain a clean and professional appearance while delivering excellent wireless performance.
The access point supports dual-band AC1200 Wi-Fi, combining the 2.4 GHz and 5 GHz bands to provide stable and high-speed wireless connectivity. This allows users to enjoy smooth web browsing, HD video streaming, video conferencing, online learning, and cloud-based applications without frequent interruptions.
Featuring MU-MIMO (Multi-User Multiple Input Multiple Output) technology, the EAP230-Wall can communicate with several devices simultaneously instead of serving them one by one. This improves network efficiency and provides a better experience when multiple smartphones, laptops, tablets, and smart devices are connected at the same time.
The device includes multiple Gigabit Ethernet ports, allowing users to connect wired devices such as desktop computers, IP phones, printers, or smart TVs while maintaining fast and reliable network performance. This combination of wired and wireless connectivity makes it an excellent choice for guest rooms and workspaces.
Installation is simple thanks to Power over Ethernet (PoE) support, which allows both power and network data to be delivered through a single Ethernet cable. This reduces cable clutter and eliminates the need for an additional power adapter.
The EAP230-Wall integrates seamlessly with the TP-Link Omada SDN platform, enabling centralized management of multiple access points from a single dashboard. Network administrators can monitor performance, configure settings, manage users, create guest networks, and perform updates remotely through cloud management.
For enhanced security, the device supports WPA2 encryption, guest network isolation, VLAN support, access control, and seamless roaming, ensuring users can move throughout the network without losing their connection.
With its compact design, dependable wireless performance, easy installation, flexible wired connectivity, and centralized management capabilities, the TP-Link Omada EAP230-Wall is a practical and cost-effective solution for businesses that need reliable Wi-Fi in individual rooms or office spaces.

SPECIFICATIONS

Brand

TP-Link

Model

EAP230-Wall

Color

White

HARDWARE FEATURES

Interface

Uplink: 1× 10/100/1000 Mbps Ethernet Port

Downlink: 1× 10/100/1000 Mbps Ethernet Port

Physical Security Lock

Button

LED/Wi-Fi Button, RESET

Power Supply

802.3af/802.3at PoE

Max. Power Consumption

7 W

Dimensions ( W x D x H )

3.4 × 3.4 × 1.2 in (86.8 × 86.8 × 30.2 mm)

Antenna

2 Dual-Band Antennas

2.4 GHz: 2× 4 dBi

5 GHz: 2× 3.6 dBi

Mounting

Wall Plate Mounting

Hardware Watch Dog

Yes

WIRELESS FEATURES

Coverage

25㎡(300 ft²)**

Concurrent Clients

200+*

Wireless Standards

IEEE 802.11n/g/b/ac

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 867 Mbps

2.4 GHz: Up to 300 Mbps

Wireless Functions

16 SSIDs (Up to 8 SSIDs on each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Load Balance

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

MU-MIMO

Band Steering

Beamforming

Wireless Security

Captive Portal Authentication

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Local LAN port based VLAN

Rogue AP Detection

802.1X Support

64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK

Transmission Power

CE:

≤20 dBm (2.4 GHz, EIRP)

≤23 dBm (5 GHz, EIRP)

Management Features

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller

Omada Hardware Controller (OC300)

Omada Hardware Controller (OC200)

Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1,v2c

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification

CE, RoHS

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

Operating Temperature: 0–40 ℃ (32–104 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing

Warranty

3 Year

Note

* Features, Price, Specifications are subject to change without notice.
