TP-Link Omada EAP215-5GHz 867Mbps Long-Range Wireless Bridge Bridge KIT


FEATURES

  • The TP-Link Omada EAP215-5GHz 867Mbps Long-Range Wireless Bridge Kit is a powerful wireless networking solution designed to create fast and reliable connections between two locations without the need for long Ethernet cables. It is ideal for extending network connectivity between buildings, warehouses, offices, schools, factories, farms, hotels, and CCTV surveillance systems where cable installation is difficult or expensive.
  • Operating on the 5GHz wireless band, the EAP215 delivers wireless speeds of up to 867 Mbps, providing high-speed data transmission with reduced interference compared to the 2.4GHz band. This makes it an excellent choice for bandwidth-intensive applications such as HD video surveillance, file sharing, VoIP communication, internet access, and business networking.
  • Designed for long-range wireless communication, the EAP215 Bridge Kit enables stable point-to-point (PtP) and point-to-multipoint (PtMP) connections over extended distances. Whether you need to connect two office buildings, link a warehouse to your main network, or provide internet access across a large property, this bridge kit delivers dependable performance with low latency and strong signal stability.
  • The bridge kit features a weatherproof outdoor enclosure, making it suitable for both indoor and outdoor deployment. Its rugged construction protects the device from rain, dust, heat, and other environmental conditions, ensuring reliable operation throughout the year. This makes it an excellent networking solution for outdoor installations in commercial, industrial, and residential environments.
  • Installation is quick and straightforward, allowing both professional installers and experienced users to deploy the bridge with minimal effort. The kit comes pre-paired for easy setup, reducing installation time and simplifying network expansion projects.
  • As part of the TP-Link Omada ecosystem, the EAP215 offers dependable performance, enterprise-grade reliability, and seamless integration with compatible Omada networking devices. It helps eliminate the cost and complexity of laying underground network cables while maintaining a secure and stable wireless connection.
  • Whether you're expanding your business network, connecting remote buildings, deploying wireless CCTV systems, or extending internet access across a campus or large property, the TP-Link Omada EAP215-5GHz 867Mbps Long-Range Wireless Bridge Kit provides a cost-effective, high-performance, and durable solution. Its combination of high-speed wireless connectivity, long-range coverage, easy installation, and weather-resistant design makes it an excellent choice for businesses, institutions, and homeowners looking for reliable outdoor networking.

SPECIFICATIONS

Brand

TP-Link

Model

EAP215-Bridge KIT

Color

White

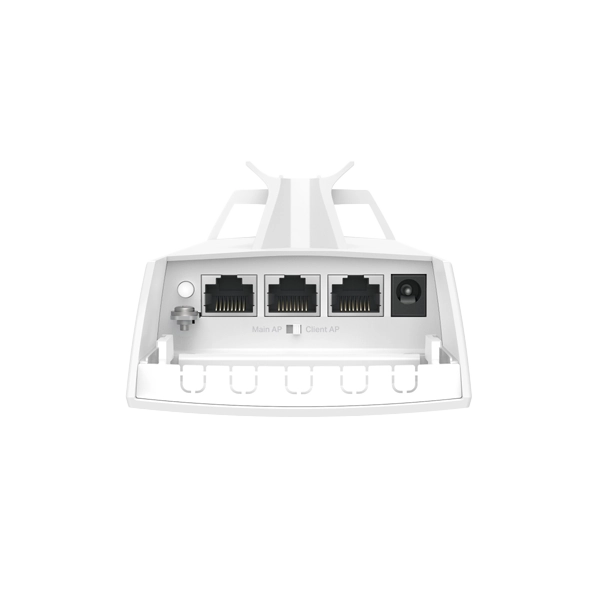

Interface

3x Gigabit Ethernet Ports

Button

Reset

DIP Switch

Role Switch

Power Supply

12V DC


802.3af PoE (1,2pins; 3,6pins)


24V Passive PoE (+4,5pins; -7,8pins)

Max. Power Consumption

11.5W

Dimensions ( W x D x H )

3.1 × 2.4 × 10.9 in (79 × 60 × 276 mm)

Antenna

Internal 2×2 Dual-polarized directional MIMO antennas


5 GHz: 14.0 dBi


Horizontal:43°, Vertical: 18°

Weatherproof Enclosure

IP65

Mounting

Pole and wall mounting ( Pole accessories included)

WIRELESS FEATURES


PtP

Yes

PtMP

Supports up to 1:4 multi-bridge connections.

Transmission Distance

5,000 m (3.1 mi)

Wireless Standards

IEEE 802.11 a/n/ac

Frequency

5 GHz

Signal Rate

5 GHz: Up to 867 Mbps

Wireless Functions

MU-MIMO: 5G 2x2 MU-MIMO DL


 Multiple SSIDs:8


 Wireless Statistics


 Wireless Schedule


Reboot Schedule


RADIUS Accounting

Wireless Security

VLAN


 Rogue AP Detection


 Maximum number of MAC Filter: 4,000


 Wireless Encryption

Transmission Power

CE:


<23dBm (5 GHz, band 1/2, EIRP)


<30dBm (5 GHz band3, EIRP)


 FCC:


<23.5dBm (5 GHz band1)


<25dBm (5 GHz band4)

Omada App

Yes

Restore & Backup

Yes

Firmware update via Web

Yes

NTP

Yes

Centralized Management

 Omada Central (Cloud-Based)


 Omada Hardware Controller


 Omada Software Controller

Cloud Access

Yes. Require the use of an Omada Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

SNMP

Yes

SSH

Yes

Web-based Management

Yes

Zero-Touch Provisioning

Yes

Certification

CE, FCC, RoHS

Package Content

 EAP215-Bridge KIT


 Installation Guide


 Mounting Kit

Lightning Protection

 Air discharge: ±8kV


Contact discharge: ±4kV


Common mode 10/700: ±6kV

Environment

 Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);


Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);


 Operating Humidity: 10%–90% non-condensing;


Storage Humidity: 5%–90% non-condensing

Warranty

3 Year

Note
