TP-Link EAP655-Wall AX3000 Wall Plate WiFi 6 Access Point

Brand

TP-Link

Model

EAP655-Wall

Color

White

HARDWARE FEATURES

Interface

Uplink: 1× Gigabbit Ethernet Port

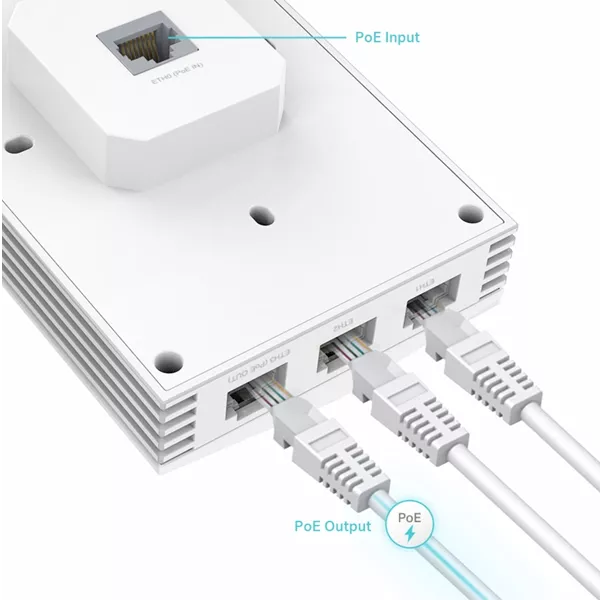

Downlink: 3× Gigabit Ethernet Ports (One port supports PoE out. The PoE out feature requires 802.3at PoE+ input. The maximum power output for POE pass-through is 10.5 W (EU version) or 10 W (US version), based on laboratory testing.)

Physical Security Lock

No

Button

Reset, LED

Power Supply

802.3af/at PoE

Max. Power Consumption

EU: 12W (802.3at PoE, PoE Out off)

US: 12.6W (802.3at PoE, PoE Out off)

Dimensions ( W x D x H )

143 × 86 × 42.6 mm (5.6 × 3.4 × 1.7 in)

Antenna

2 Dual-Band Antennas

2.4 GHz: 2× 3 dBi

5 GHz: 2× 5 dBi

Mounting

Wall Mounting (Screws included)

WIRELESS FEATURES

Coverage

50㎡(600 ft²)***

Concurrent Clients

120+△

Wireless Standards

IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 2402 Mbps

2.4 GHz: Up to 574 Mbps

Wireless Functions

16 SSIDs (Up to 8 SSIDs on each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

Seamless Roaming(802.11k/v/r)§

Beamforming

Rate Limit

Load Balance

Airtime Fairness

Band Steering

Reboot Schedule

Wireless Schedule

RADIUS Accounting

MAC Authentication

Wireless Statistics

Static IP/Dynamic IP

Wireless Security

Captive Portal Authentication§

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

VLAN

Rogue AP Detection

802.1X Support

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission Power

CE:

<20 dBm (2.4GHz, EIRP)

<23 dBm (5GHz, band 1 & band 2, EIRP)

<26 dBm (5GHz, band 3, EIRP)

FCC:

< 21 dBm (2.4 GHz)

< 21 dBm (5 GHz, band 1 & band 2 & band 3 & band 4)

Management Features

Omada App

Yes

Centralized Management

Omada Hardware Controller

Omada Software Controller

Omada Cloud-Based Controller

Cloud Access

Yes. Require the use of an Omada controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS

Certification

FCC, RoHS

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux

Environment

Operating Temperature: 0–40 ℃ (32–104 ℉)

Storage Temperature: -40–70 ℃ (-40–158 ℉)

Operating Humidity: 10–90% RH non-condensing

Storage Humidity: 5–90% RH non-condensing

Warranty

5 Year

Note

* Features, Price, Specifications are subject to change without notice.
